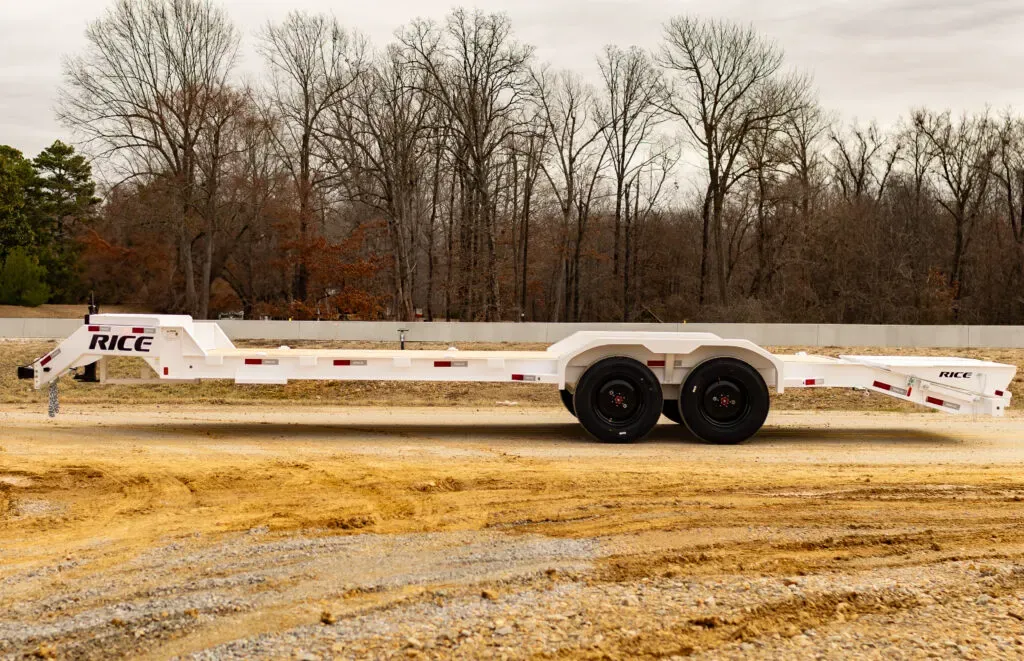

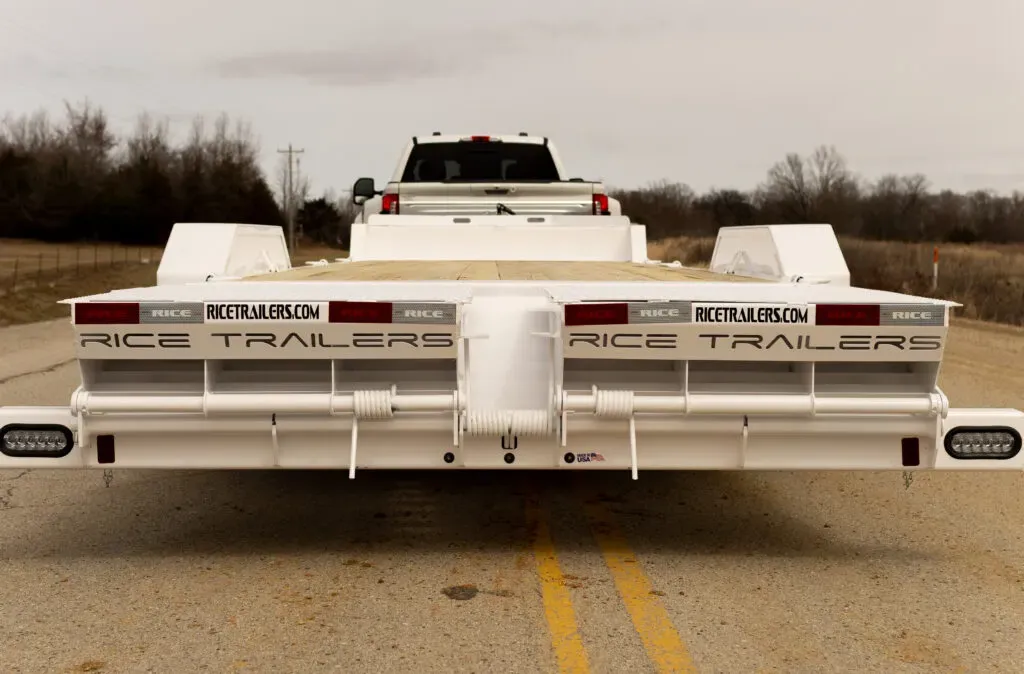

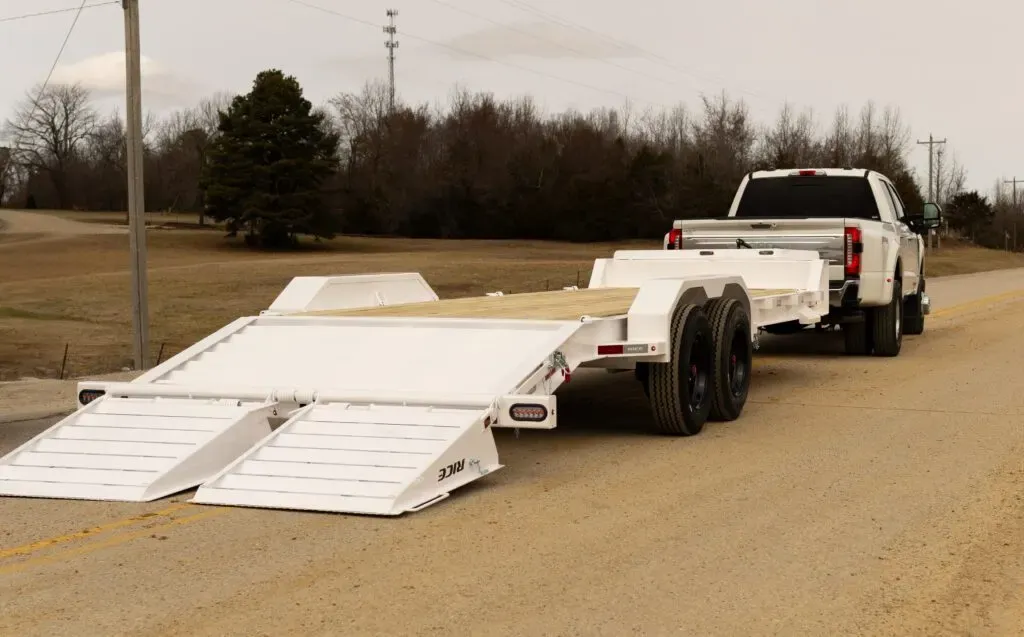

20,000# ProMax HD Flatbed
20,000# ProMax HD Flatbed by Rice Trailers. GVWR 20,000 lb. Sizes from 22′ (18′ deck + 4′ dovetail) to 24′ (20′ deck + 4′ dovetail).
- GVWR
- 20,000#
- Length
- 22′ (18′ deck + 4′ dovetail) – 24′ (20′ deck + 4′ dovetail)
- Axles
- 2-10,000# Torsion Axles
Available sizes
Max capacity
15,900 lb
Empty weight 4,100 lb. This is GVWR minus the listed empty weight for the selected size. It is not a separate rated payload.
Full specs
| GVWR | 20,000# |
| Axles | 2-10,000# Torsion Axles |
| Suspension | Rubber Torsion |
| Brakes | Electric Brakes |
| Coupler | 2-5/16" Adj Coupler |
| Safety Chains | 3/8" GRD. 70 w/ Safety Latch Hook |
| Jack | 12k Top Wind Drop Leg Jacks Bolted On |
| Frame | 15LB 8" Beam |
| Cross-Members | 16" on Center w/ Integrated Torque Tube |

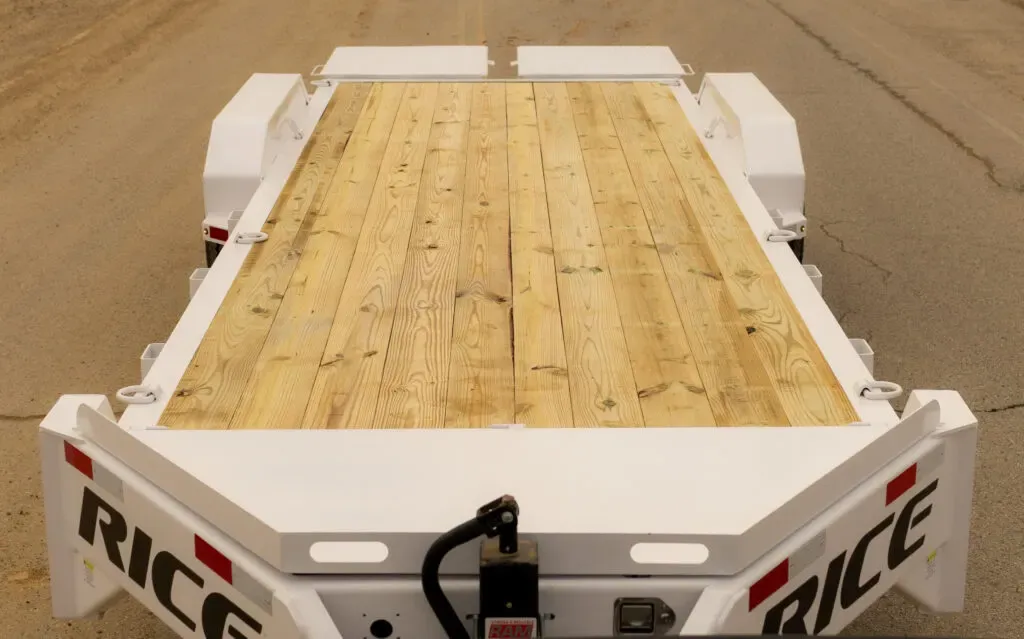

| Floor | Pressure Treated 2" Pine Floor |

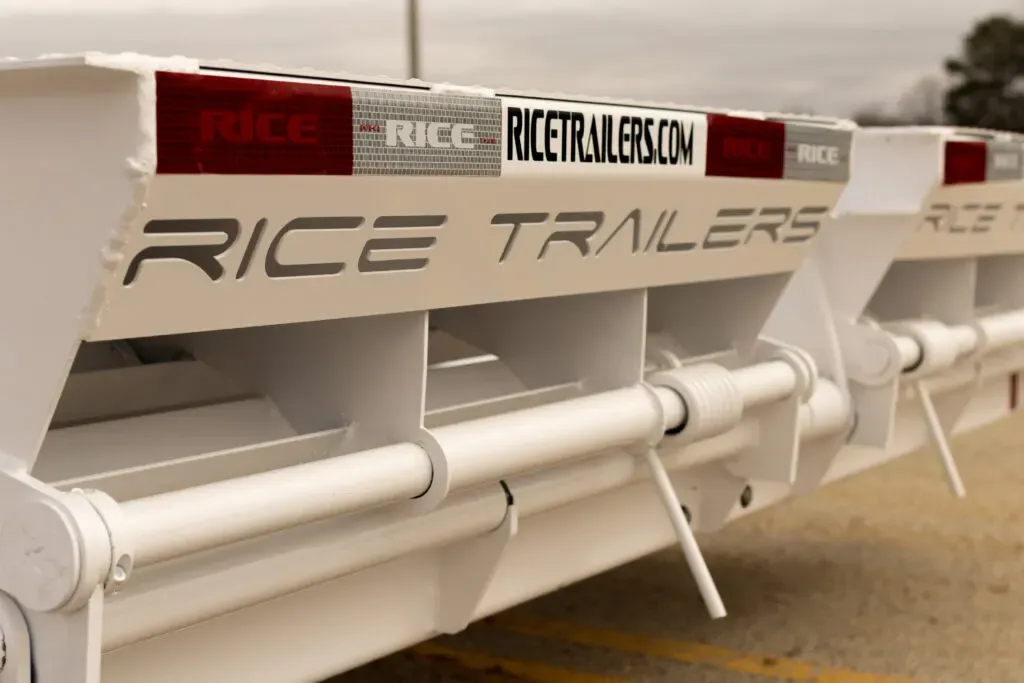

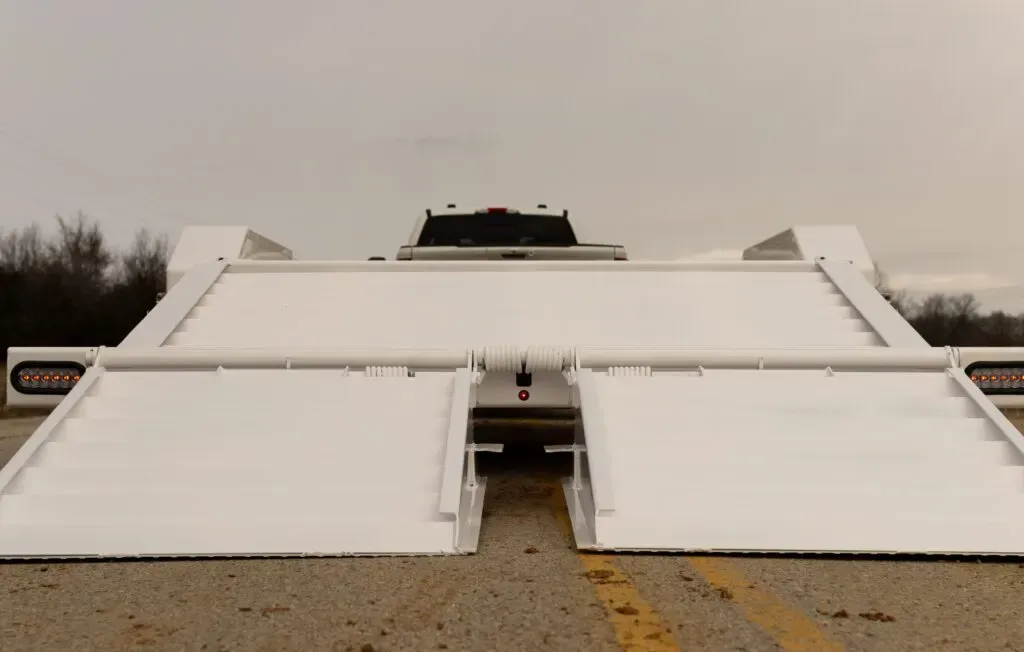

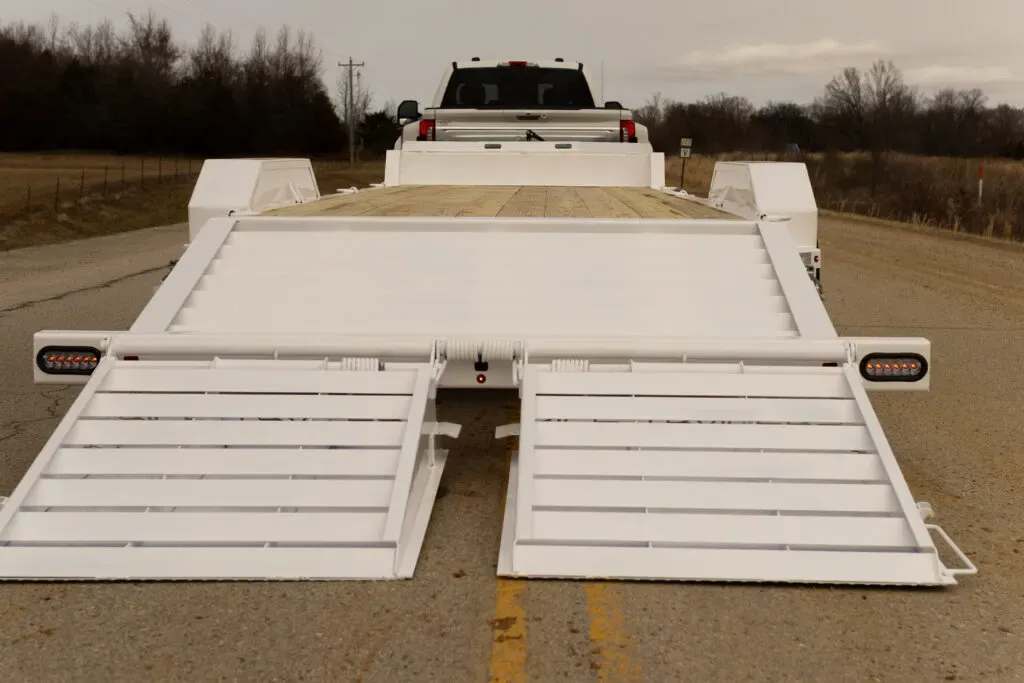

| Ramps | Double Hinged Spring Assisted Full Width |
| Dovetail | Cleated Dovetail |
| Stake Pockets | Stake Pockets Down Side, 24" on Center |

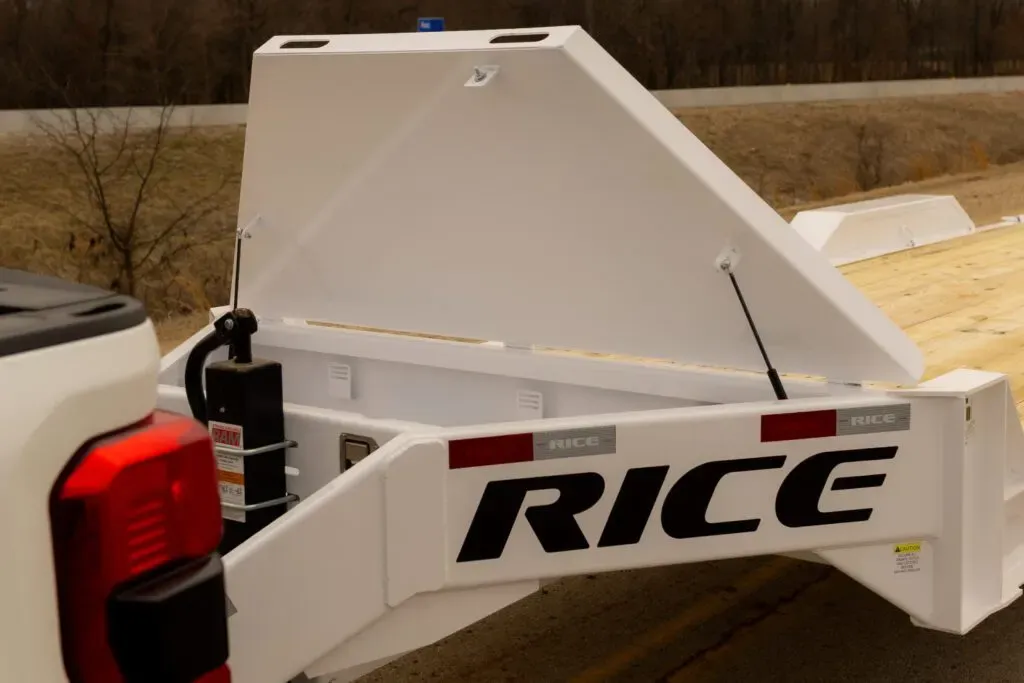

| Toolbox | Integrated Large Lockable Storage Box |
| Trailer Plug | 7-Way RV Type |
| Lights | D.O.T. Compliant Stop, Tail, Turn, Clearance Lights |
| Wiring | Sealed Modular Wire Harness |
| Tires | ST235/75R17.5 |
| Fenders | HD Fabricated Extended Fenders |
| Pre-Treatment | Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed |
| Paint Type | Fully Powder Coated |
| Paint Color | Black |
Options
Accessories
5/8 in D-ringODR1
Wireless remoteOREMOTE

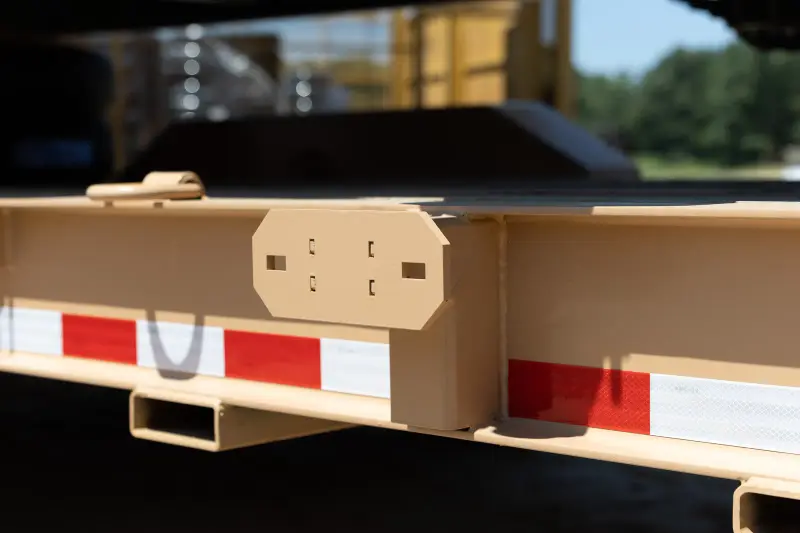

Pro Max spare mount
Floor / Fenders
- Extra row of floor screwsOFS1
Jack

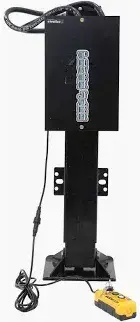

Premium hydraulic jack, singleOJ17PM
Paint Color
- Olive drabOLV
- CAT yellowYEL
- WhiteWHT
- Desert tanTAN
- Starlight blackSBB
- RedRED
- Kubota orangeORG
- AG greenGRN
- CE grayGRA
- AG blueBLU
Gallery
Brochure
Quote
Request a quote
This form is prefilled with the 20,000# ProMax HD Flatbed. Tell us the size and what you haul.
