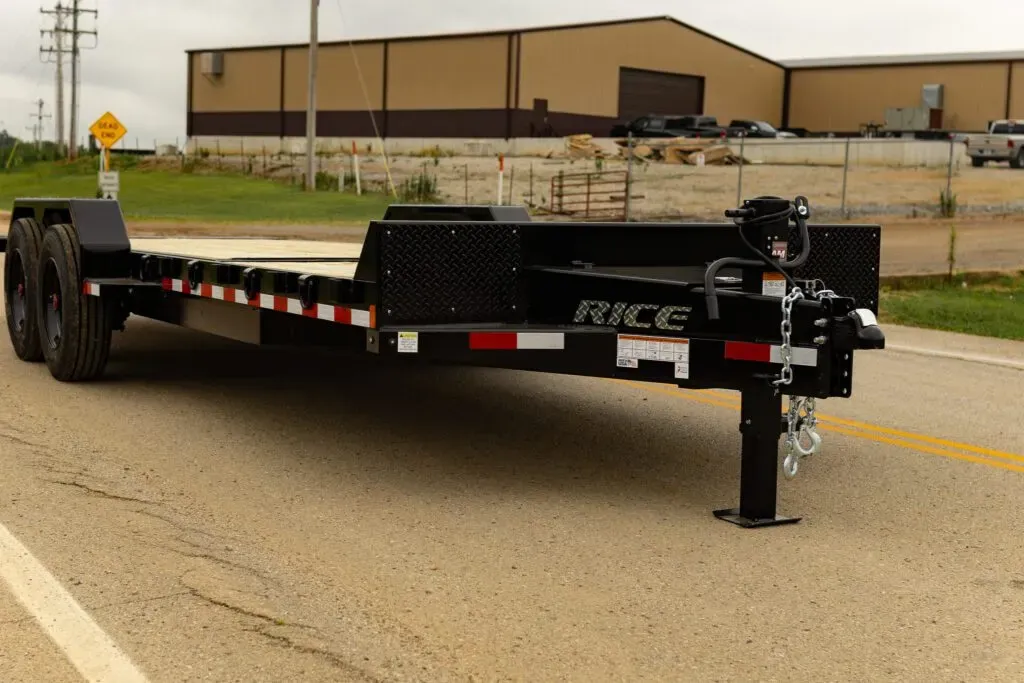

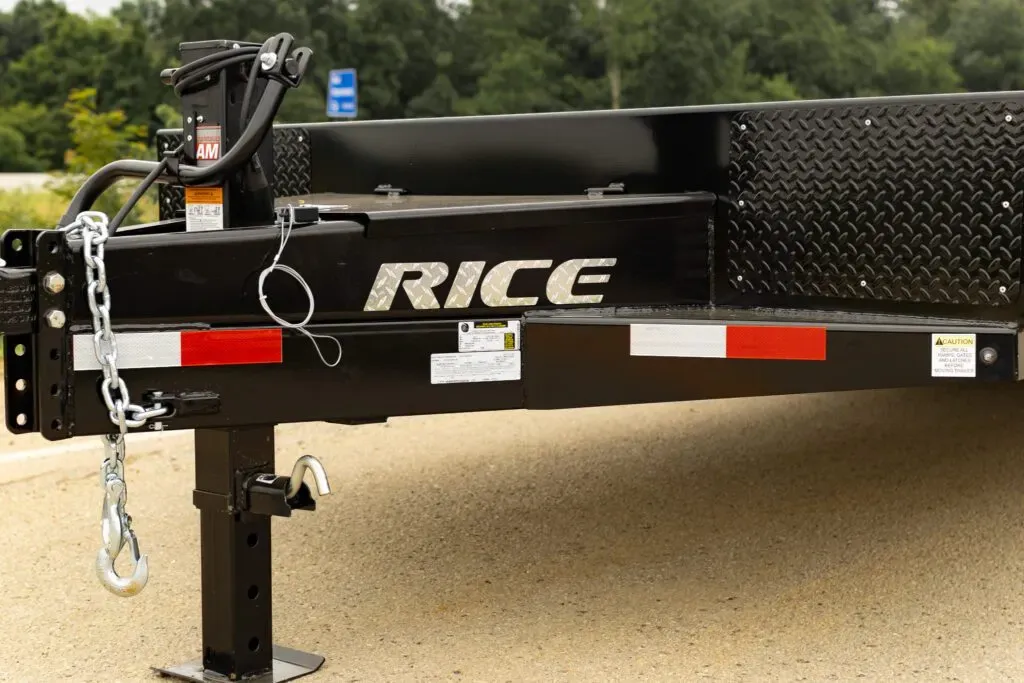

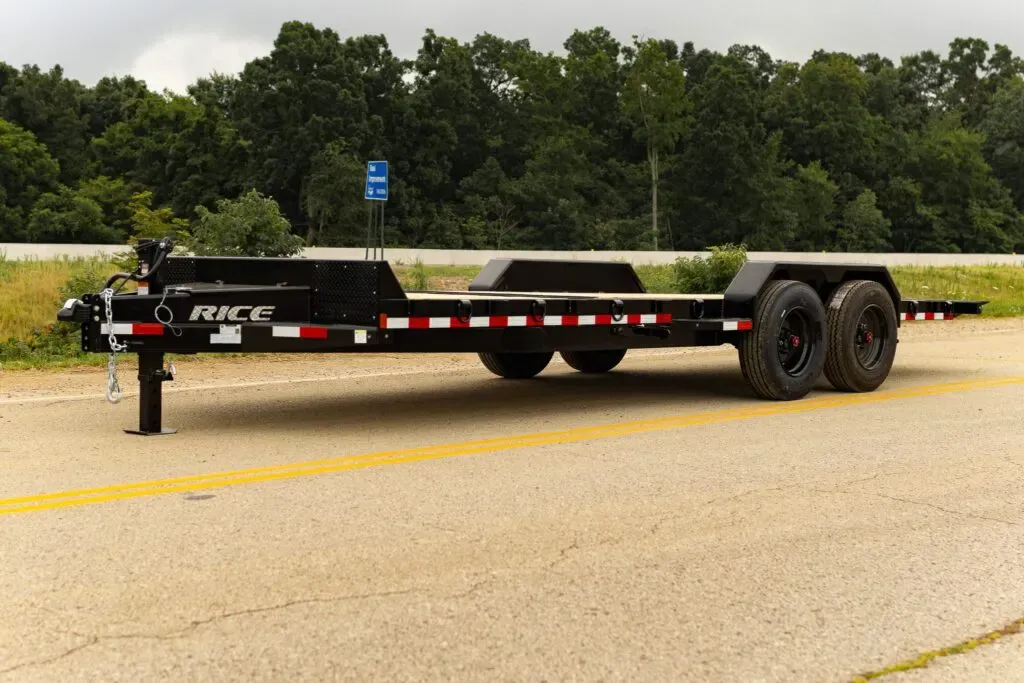

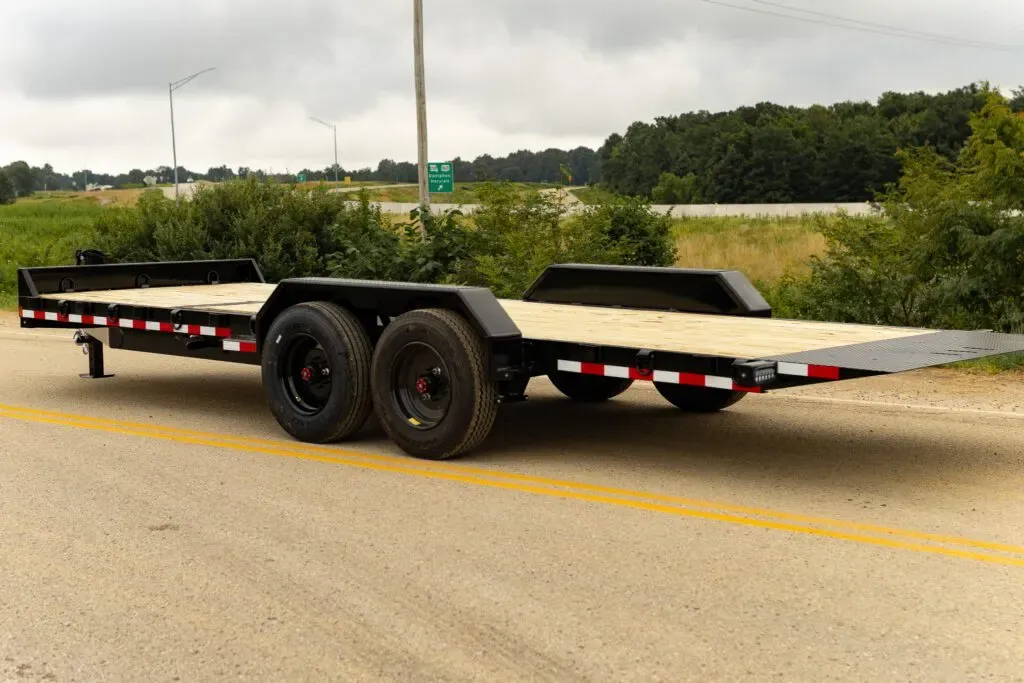

16,000# HD Partial Tilt
16,000# HD Partial Tilt by Rice Trailers. GVWR 16,000 lb. Bumper Pull. Sizes from 20′ (16′ tilt bed + 4′ stationary bed) to 22′ (16′ tilt bed + 6′ stationa
- GVWR
- 16,000#
- Length
- 20′ (16′ tilt bed + 4′ stationary bed) – 22′ (16′ tilt bed + 6′ stationary bed)
- Axles
- Two 8,000# EZ Lube Elec. Brake
- Pull type
- Bumper Pull
Available sizes
Max capacity
11,920 lb
Empty weight 4,080 lb. This is GVWR minus the listed empty weight for the selected size. It is not a separate rated payload.
Full specs
| GVWR | 16,000# |
| Axles | Two 8,000# EZ Lube Elec. Brake |
| Suspension | Slipper Spring |
| Tires | ST235/75R17.5 Radial Tire |
| Wheel | 17.5" Solid Steel 8-Hole |
| Pull Type | Bumper Pull |
| Frame | 6" Channel HD |
| Tongue | 6" Channel HD |
| Coupler | 2-5/16" Adjustable |
| Jack | 10K Drop Leg |

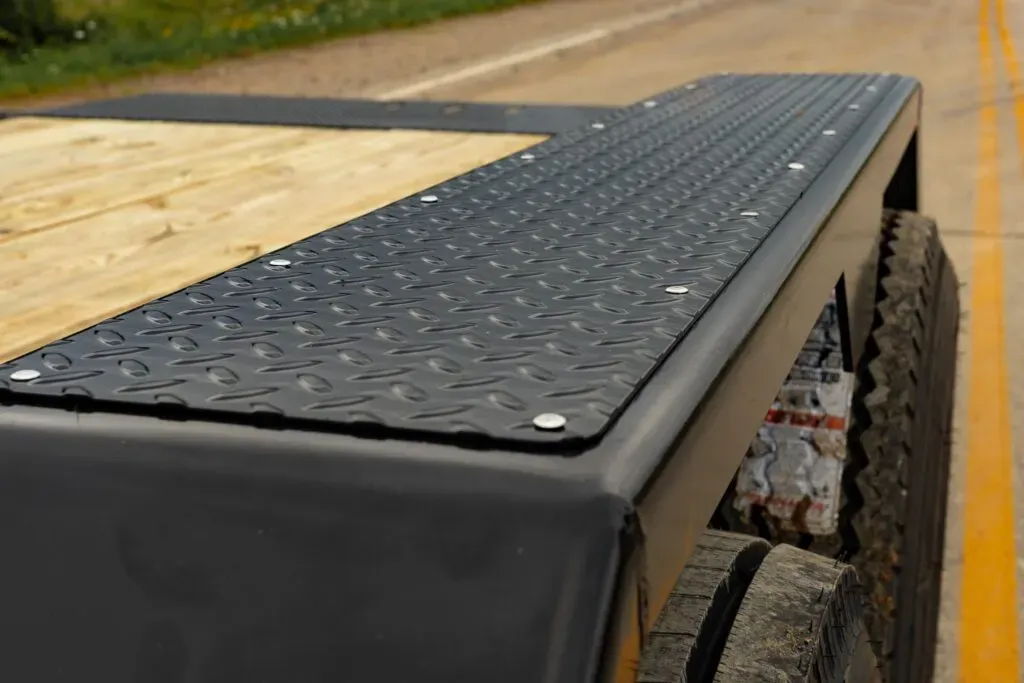

| Fenders | HD Steel Fabricated |

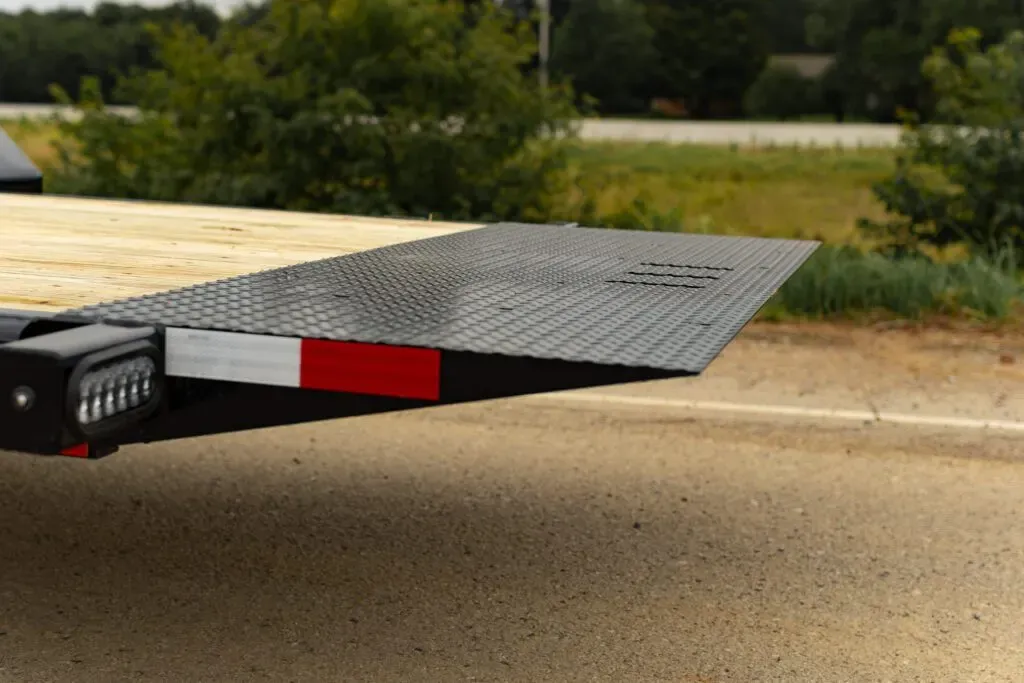

| Tilt Bed Rear | Knife Edge Rear |

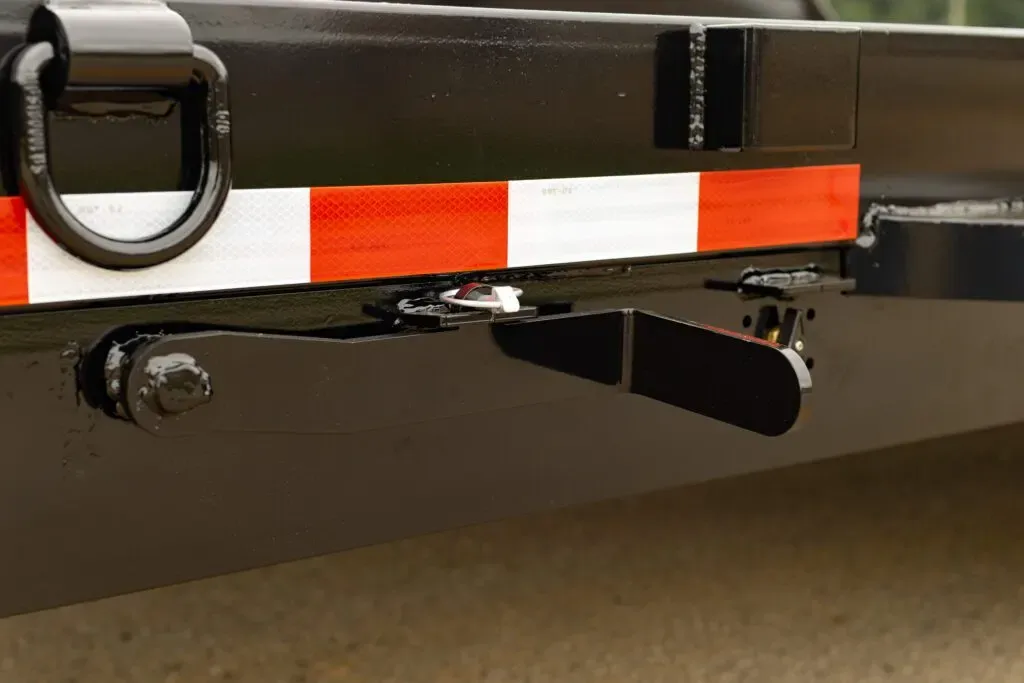

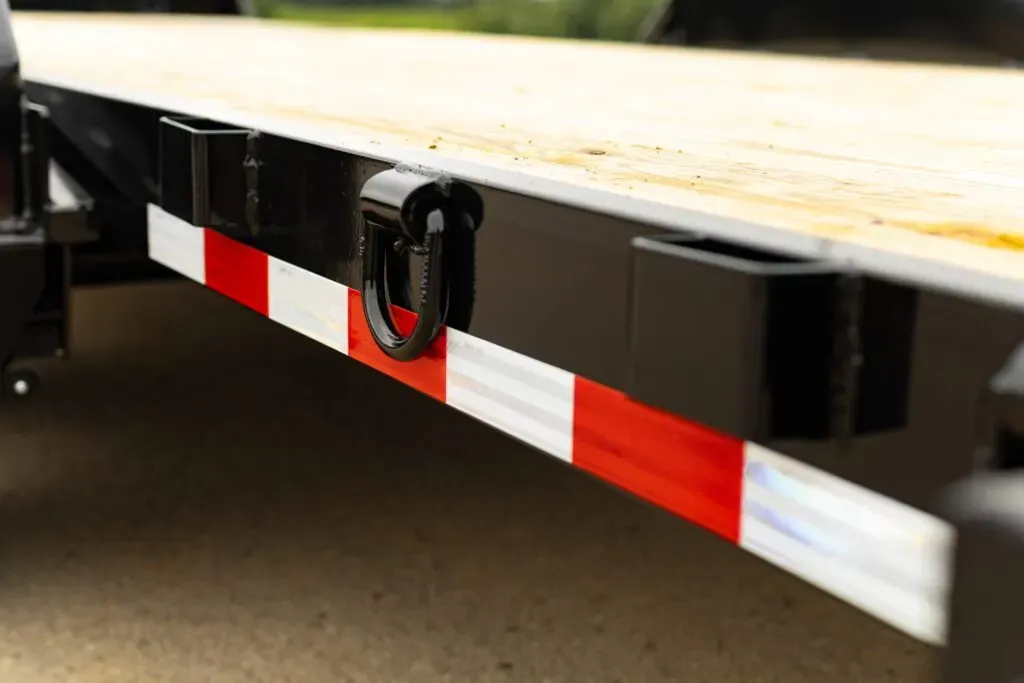

| Tie Loops | Stake Pockets/D-Rings Front/Sides |
| Hydraulics | Dual Cylinder Dampening with Lock Out Valve |
| Storage | Integrated Lockable Storage Box |
| Floor | 2" Treated Pine |
| Break-Away | Complete System w/ Charger |
| Lights | D.O.T. LED |
| Electrical plug | Sealed Modular Wire Harness-7-Way RV |
| Pre-treatment | Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed |
| Finish | Powder Coated |
| Paint Color | Standard Black |
Options
Accessories

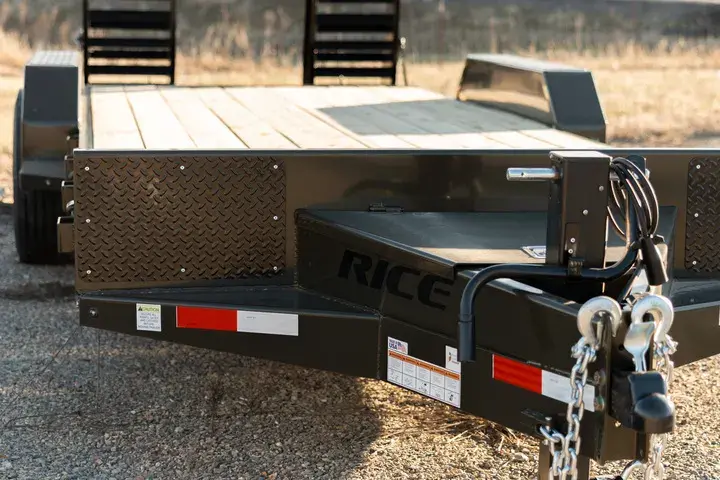

HD armour packageOAP
5/8 in D-ringODR1
Flatbed spare mountOSM3
Floor / Fenders
- Extra row of floor screwsOFS1
Paint Color
- Olive drabOLV
- CAT yellowYEL
- WhiteWHT
- Desert tanTAN
- Starlight blackSBB
- RedRED
- Kubota orangeORG
- AG greenGRN
- CE grayGRA
- AG blueBLU
Gallery

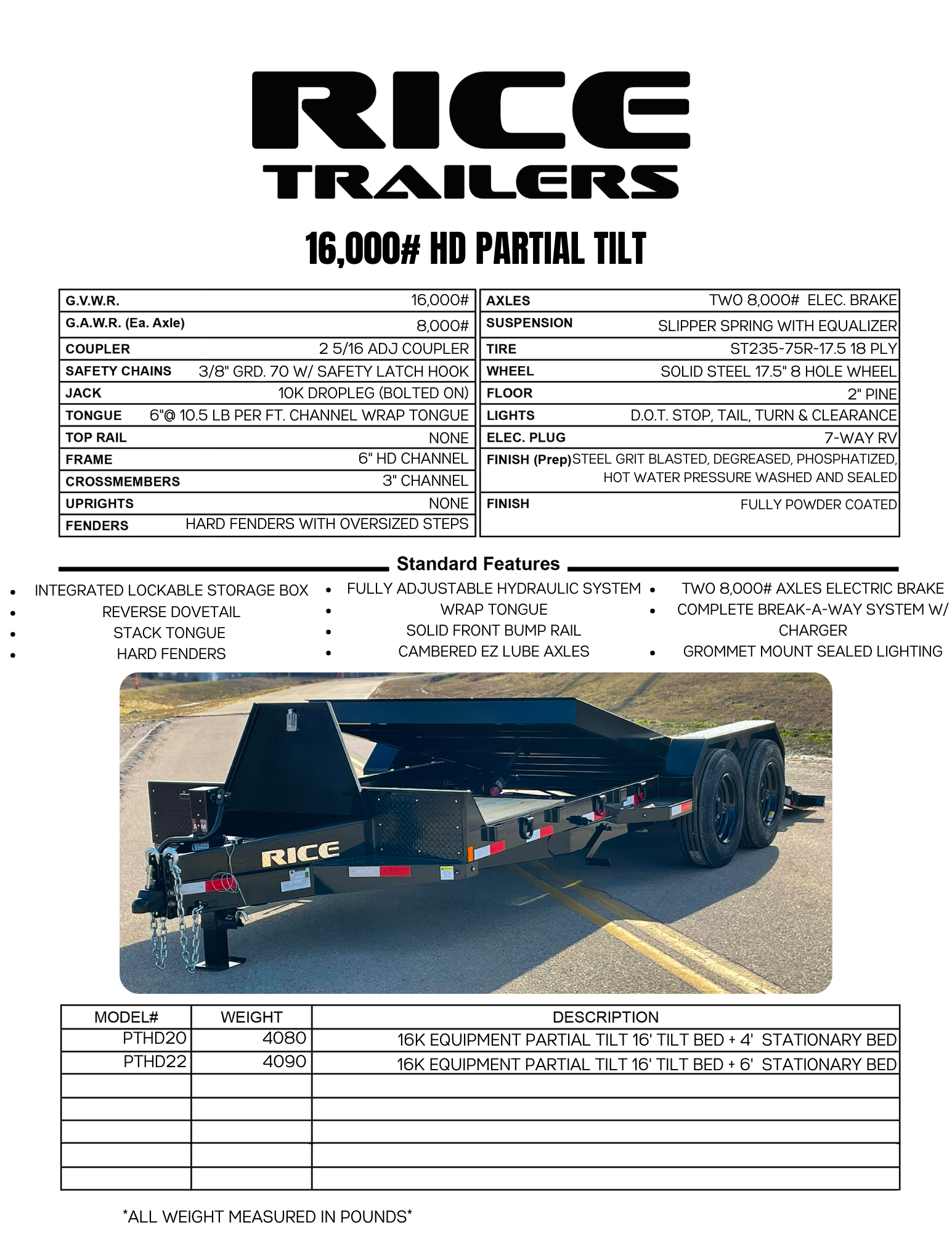

Brochure
