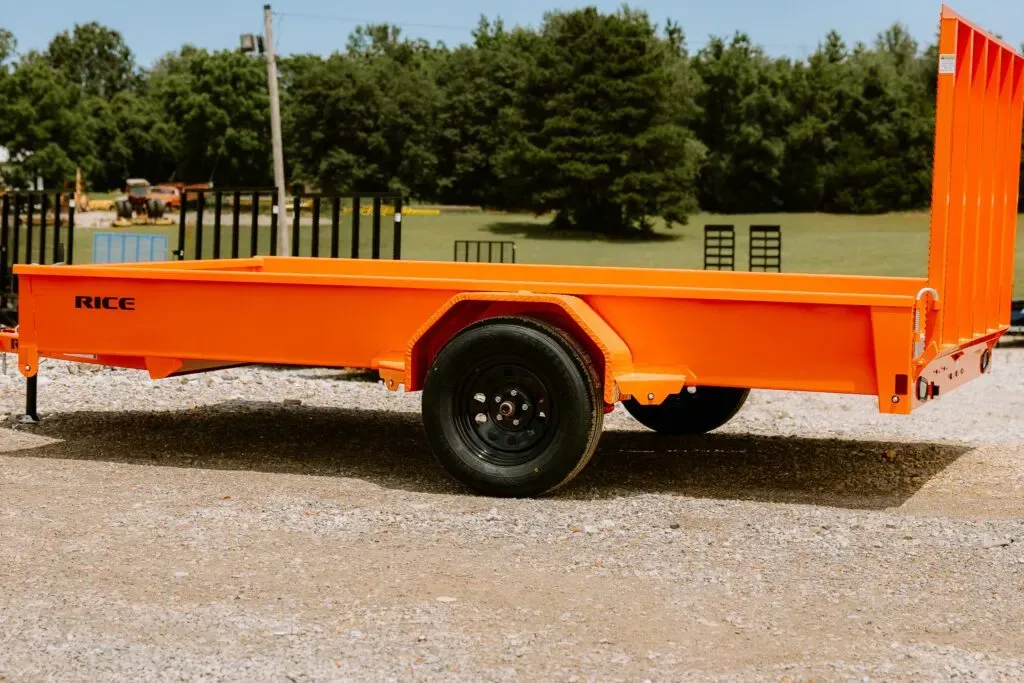

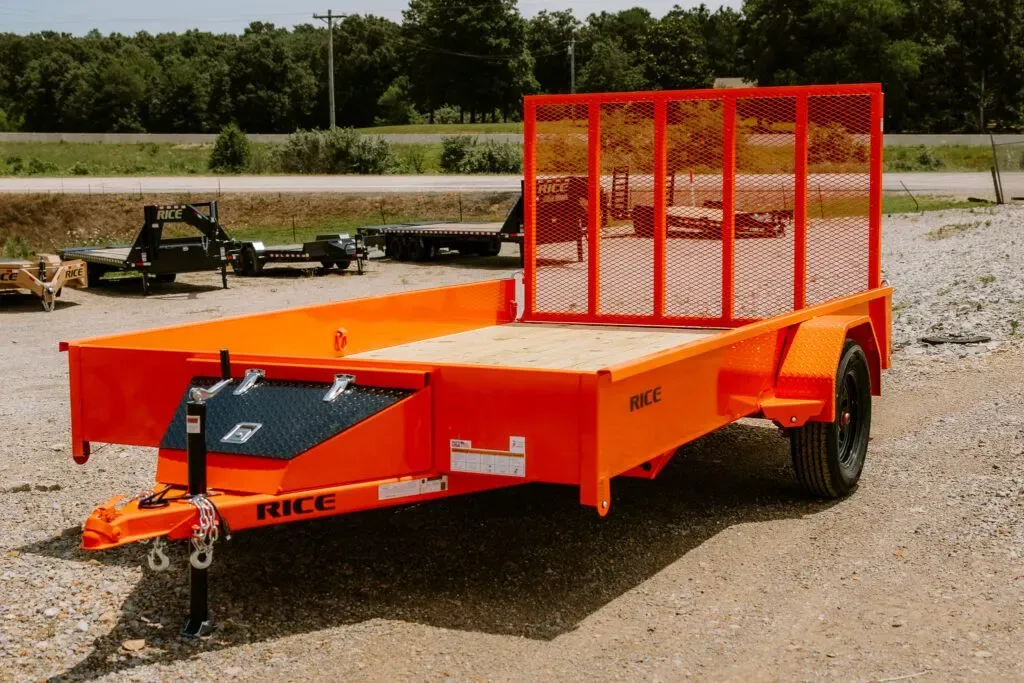

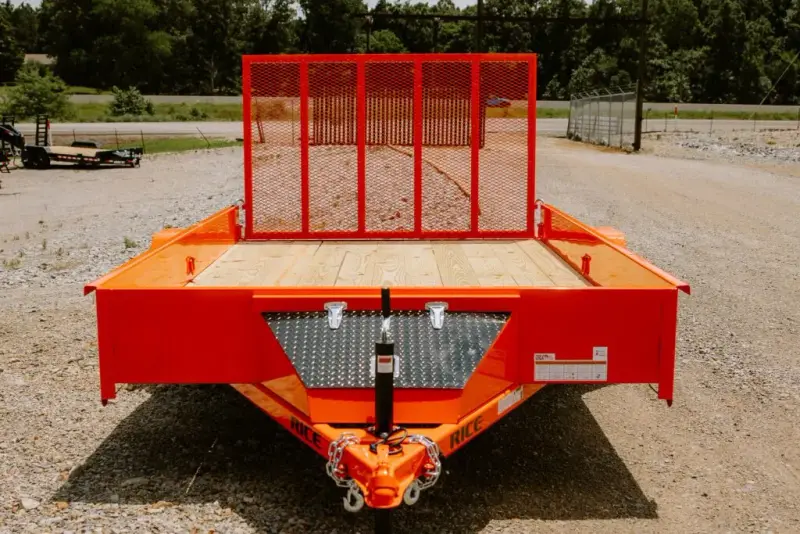

Single Axle Stealth
Single Axle Stealth by Rice Trailers. GVWR 2,990 lb. Bumper Pull. Sizes from 76″ × 10′ to 82″ × 14′.
- GVWR
- 2,990#
- Length
- 76″ × 10′ – 82″ × 14′
- Axles
- 3,500# Idler
- Pull type
- Bumper Pull
Available sizes
Max capacity
1,825 lb
Empty weight 1,165 lb. This is GVWR minus the listed empty weight for the selected size. It is not a separate rated payload.
Full specs
| GVWR | 2,990# |
| Axles | 3,500# Idler |
| Tires | ST205/75R15 Radial Tire |
| Pull Type | Bumper Pull |
| Coupler | 2" A-Frame |
| Jack | 2K Top Wind Bolt On |
| Frame | 14" 12ga Formed Side |
| Fenders | Treadplate |
| Crossmembers | Formed Channel 16" OC |
| Tie Loops | 1/2" D-Rings 3 Per Side |
| Ramp | 4' Tube Drop Gate |

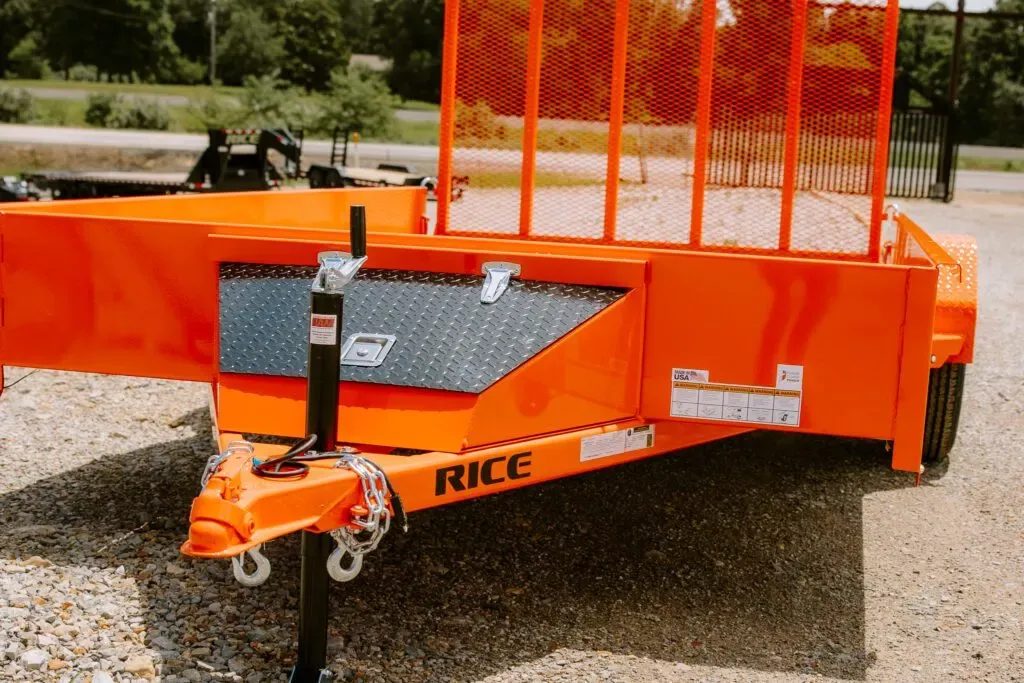

| Storage | Bolt On Lockable Storage Box |
| Floor | 2" Treated Pine |
| Lights | D.O.T. Rubber Grommet Mounted LED |
| Electrical plug | Sealed Modular Wire Harness-4-Way Flat |
| Pre-treatment | Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed |
| Finish | Powder Coated |
| Paint Color | Standard Black |
Options
Accessories

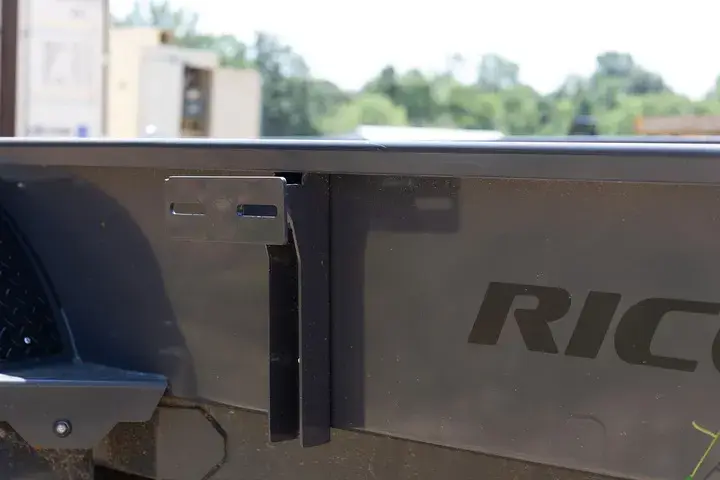

Stealth spare mountOSM2

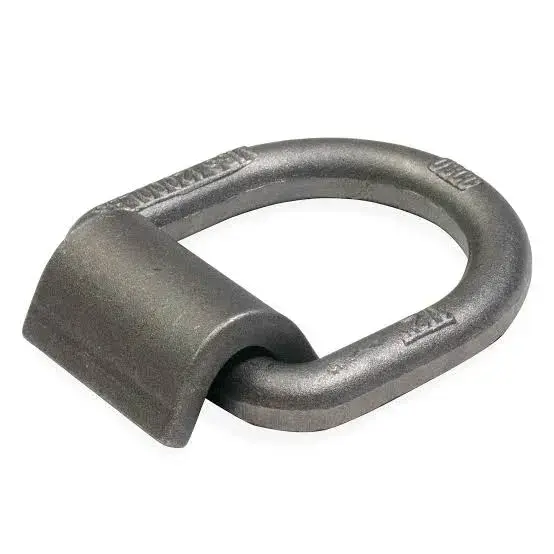

1/2 in D-ringODR2
Gate / Ramp

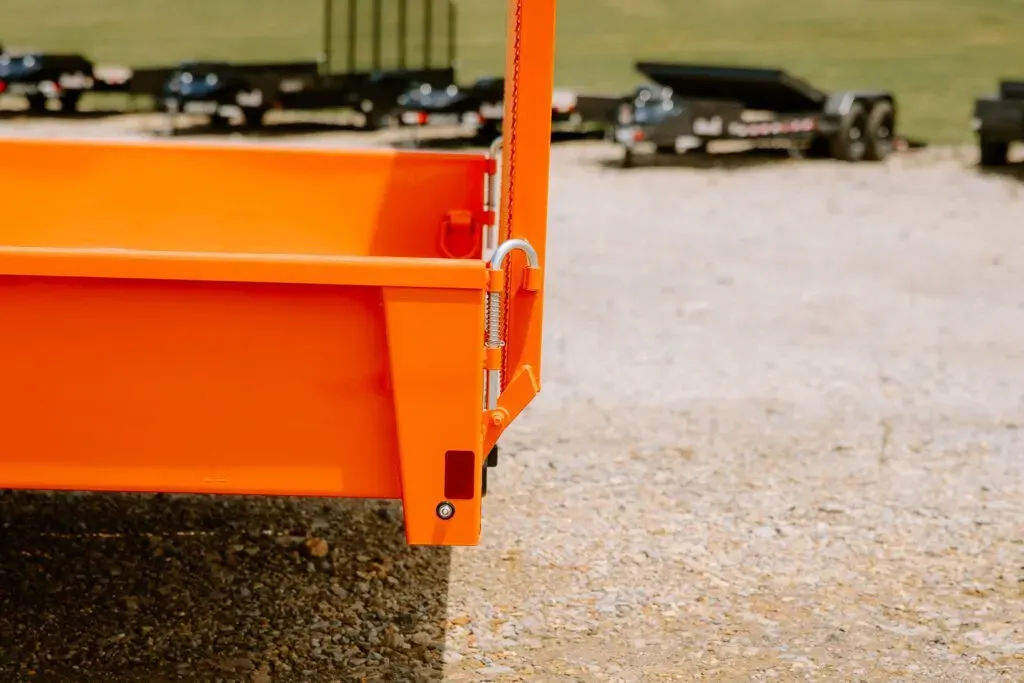

Gas-spring assist for the drop gateOGSA1

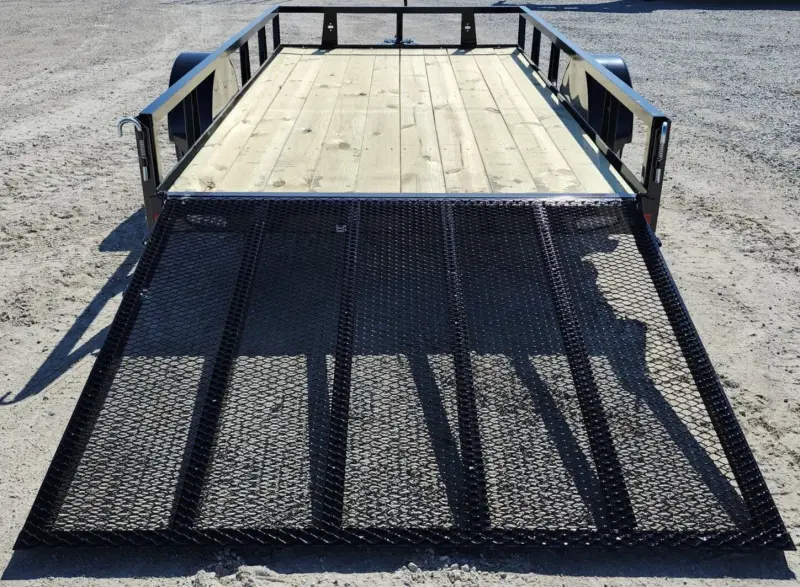

5 ft drop gateOG6- Extra uprights in the gateOUR1
Floor / Fenders
- Extra row of floor screwsOFS1
Tires / Wheels
- Spare ST205/75R15, 6-ply, black mod wheelOTW-205-BM
Jack
8K top-wind jackOJ1
5K pipe-mount jackOJ4
2K swivel jackOJ2
Paint Color
- Olive drabOLV
- CAT yellowYEL
- WhiteWHT
- Desert tanTAN
- Starlight blackSBB
- RedRED
- Kubota orangeORG
- AG greenGRN
- CE grayGRA
- AG blueBLU
Gallery

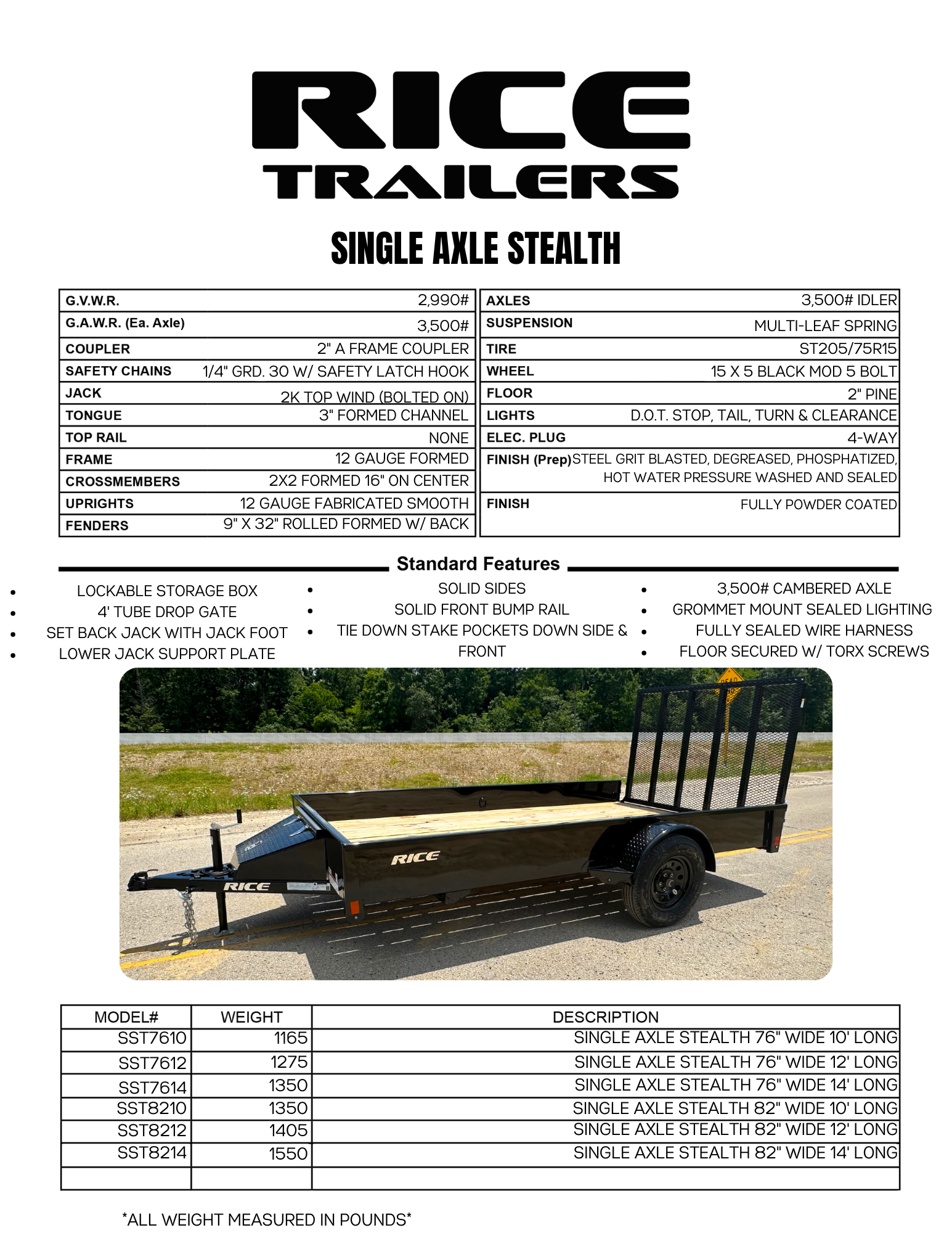

Brochure
