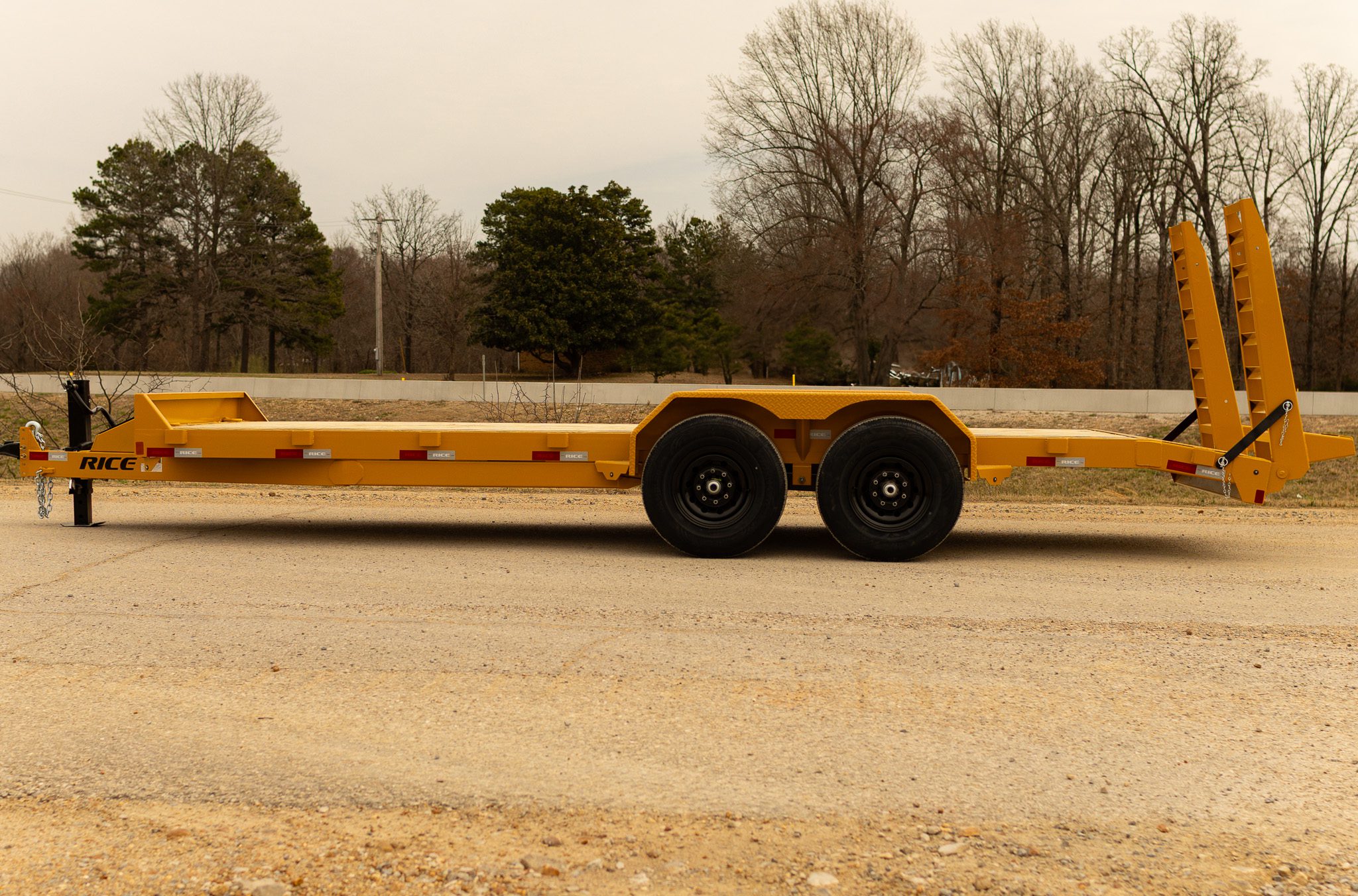

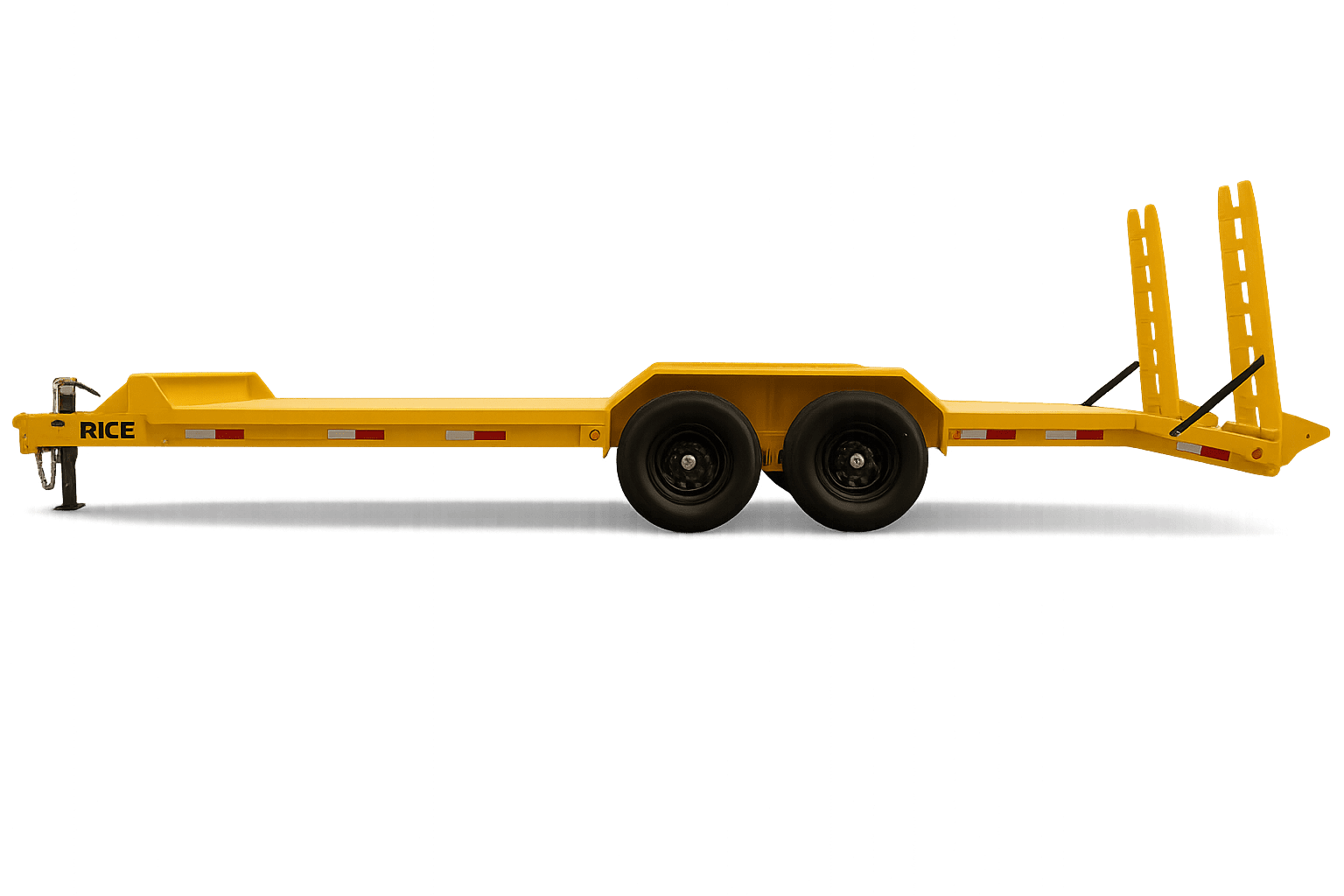

14K MAGNUM EQUIPMENT
quick look
GVWR: 14,000#
LENGTH: 16-24ft
AXLES: 2-7000#
Pull Type: Bumper Pull
- 82″ x 14’+2′
- 82″ x 16’+2′
- 82″ x 18’+2′
- 82″ x 20’+2′
- 82″ x 14’+2′ – 2920#
- 82″ x 16’+2′ – 3340#
- 82″ x 18’+2′ – 3480#
- 82″ x 20’+2′ – 3540#
| STANDARD FEATURES | DETAILS |
|---|---|
| AXLES | 2-7000# Dexter Cambered EZ Lube Axles |
| BRAKES | 2-Electric Brakes |
| SUSPENSION | Slipper Spring w/ Equalizer |

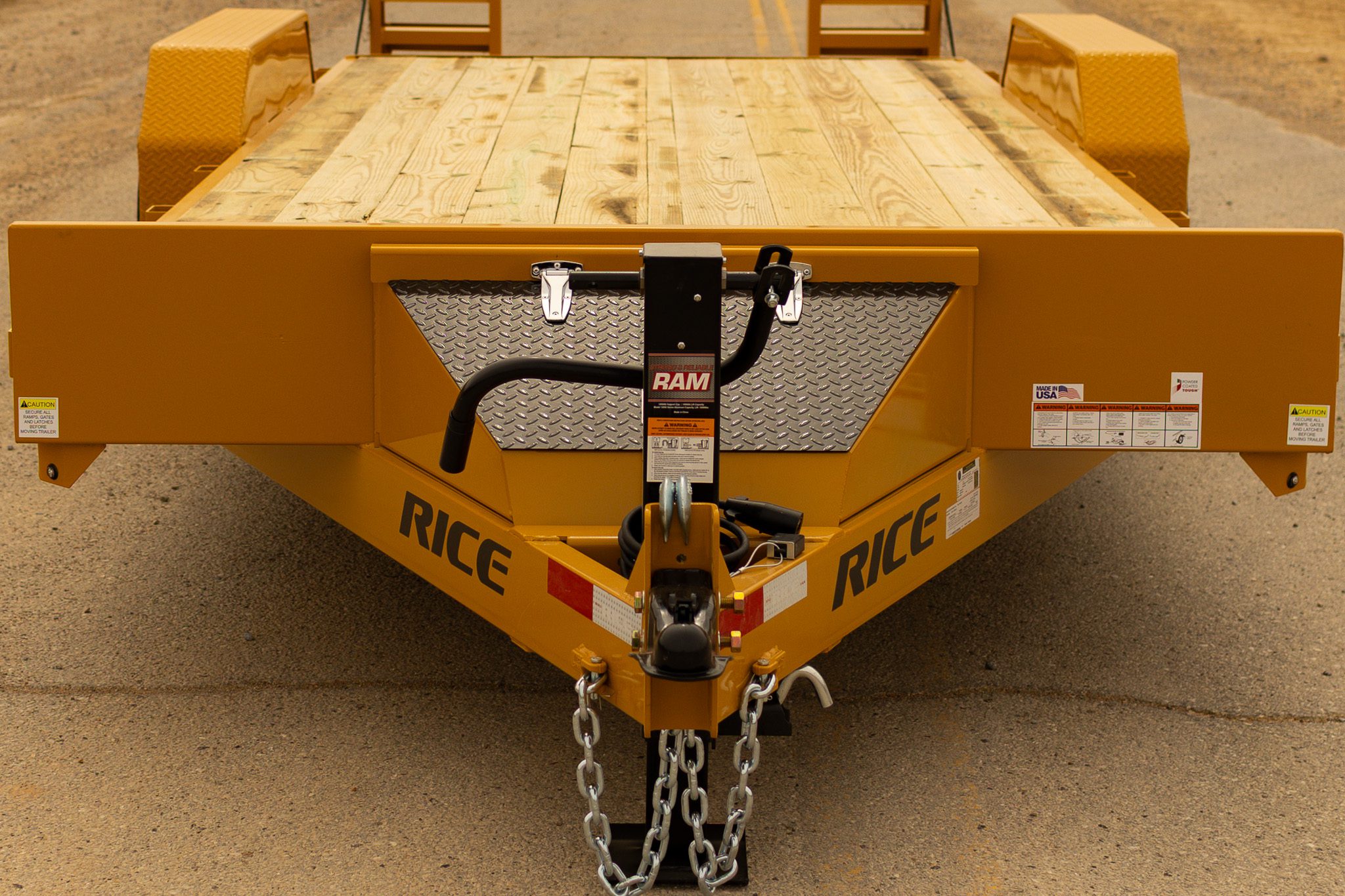

| COUPLER | 2-5/16" Adjusted Coupler |
| SAFETY CHAINS | 3/8" GRD. 70 w/ Safety Latch Hook |

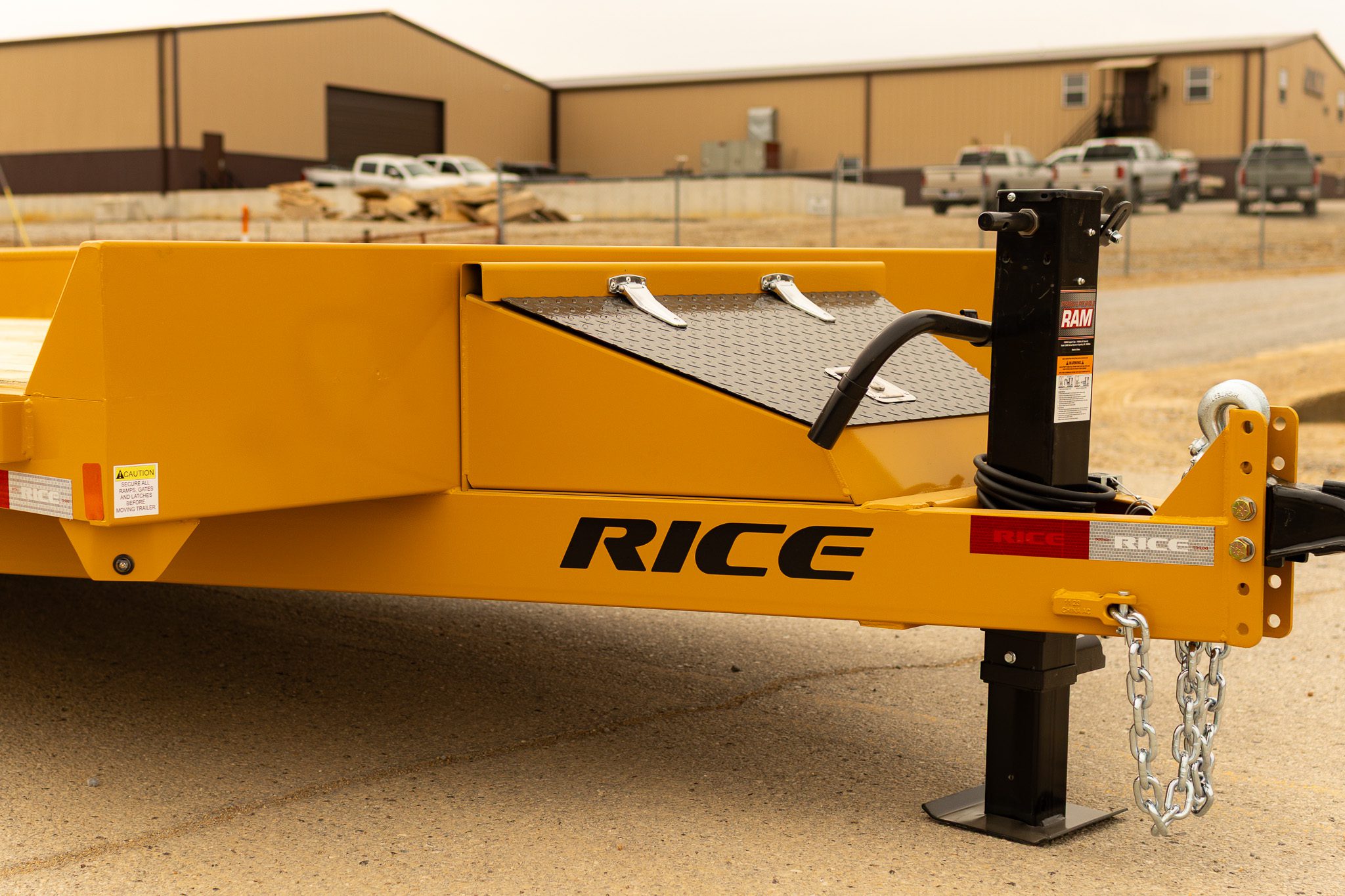

| JACK | 10K Drop Leg Jack U Bolt Mounted |
| FRAME | Heavy 6" Channel Main Frame/Tongue |
| CROSS-MEMBERS | 3" Channel Crossmembers on 16" Centers |
| FLOOR | Treated Lumber |

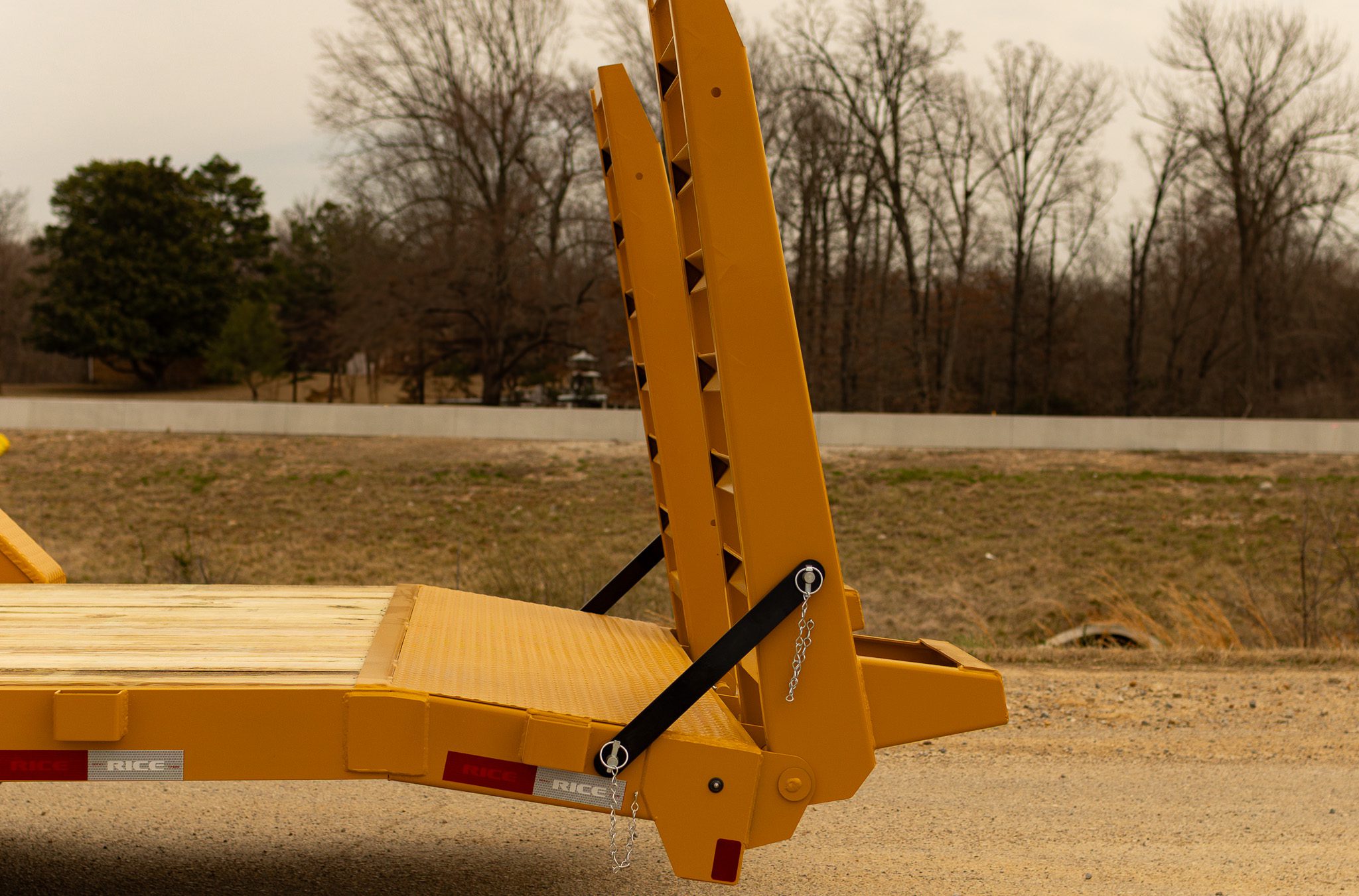

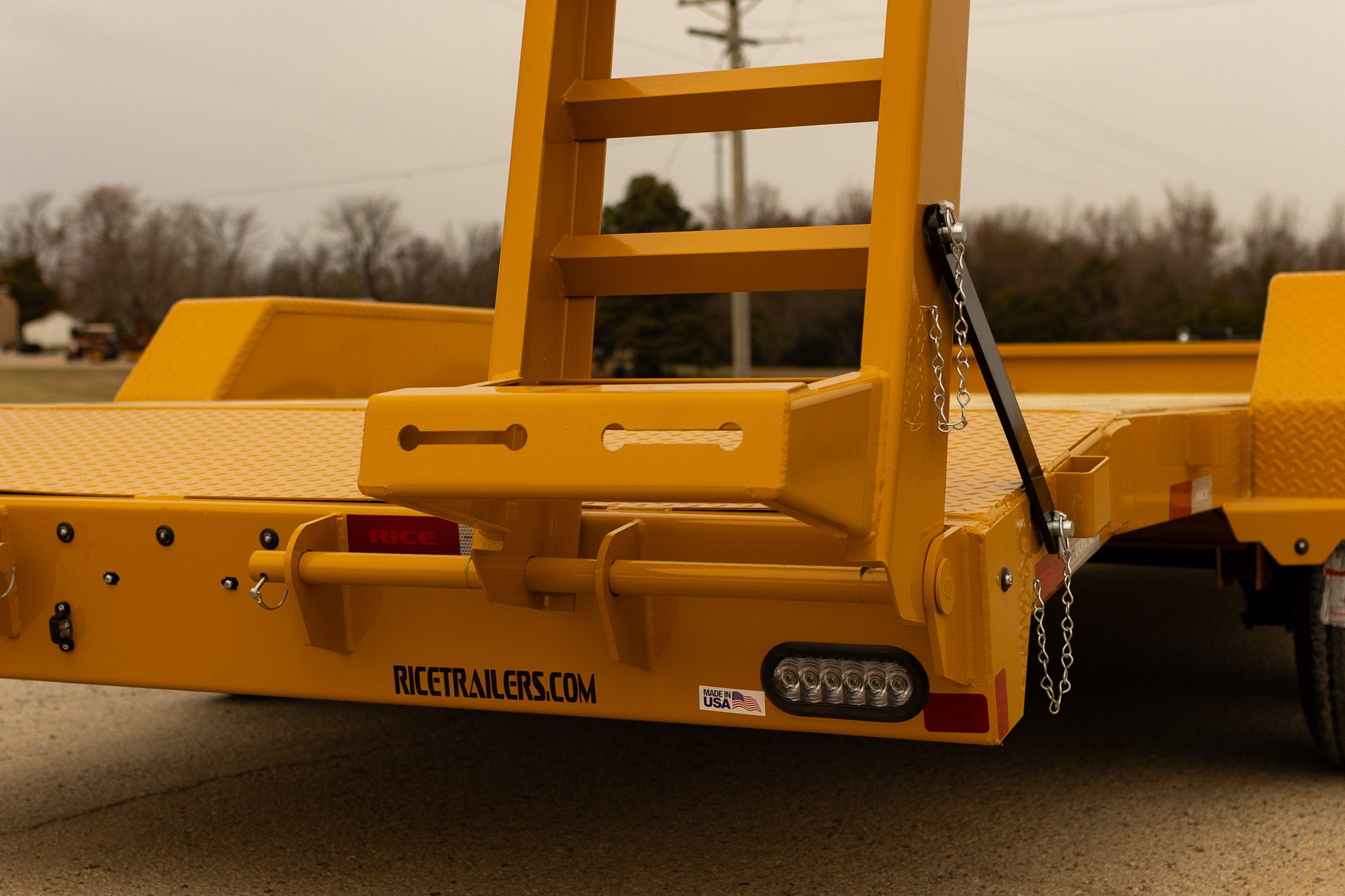

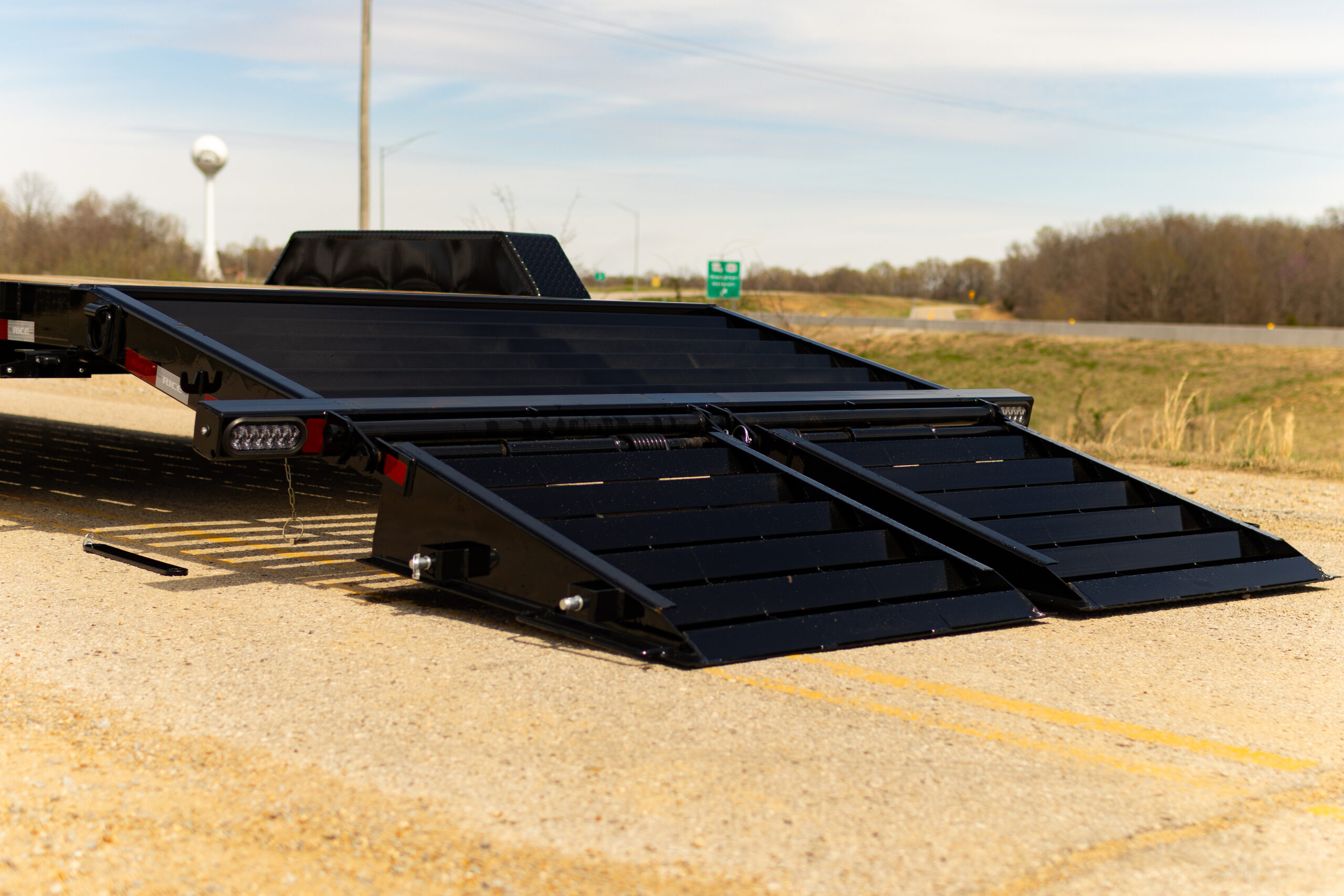

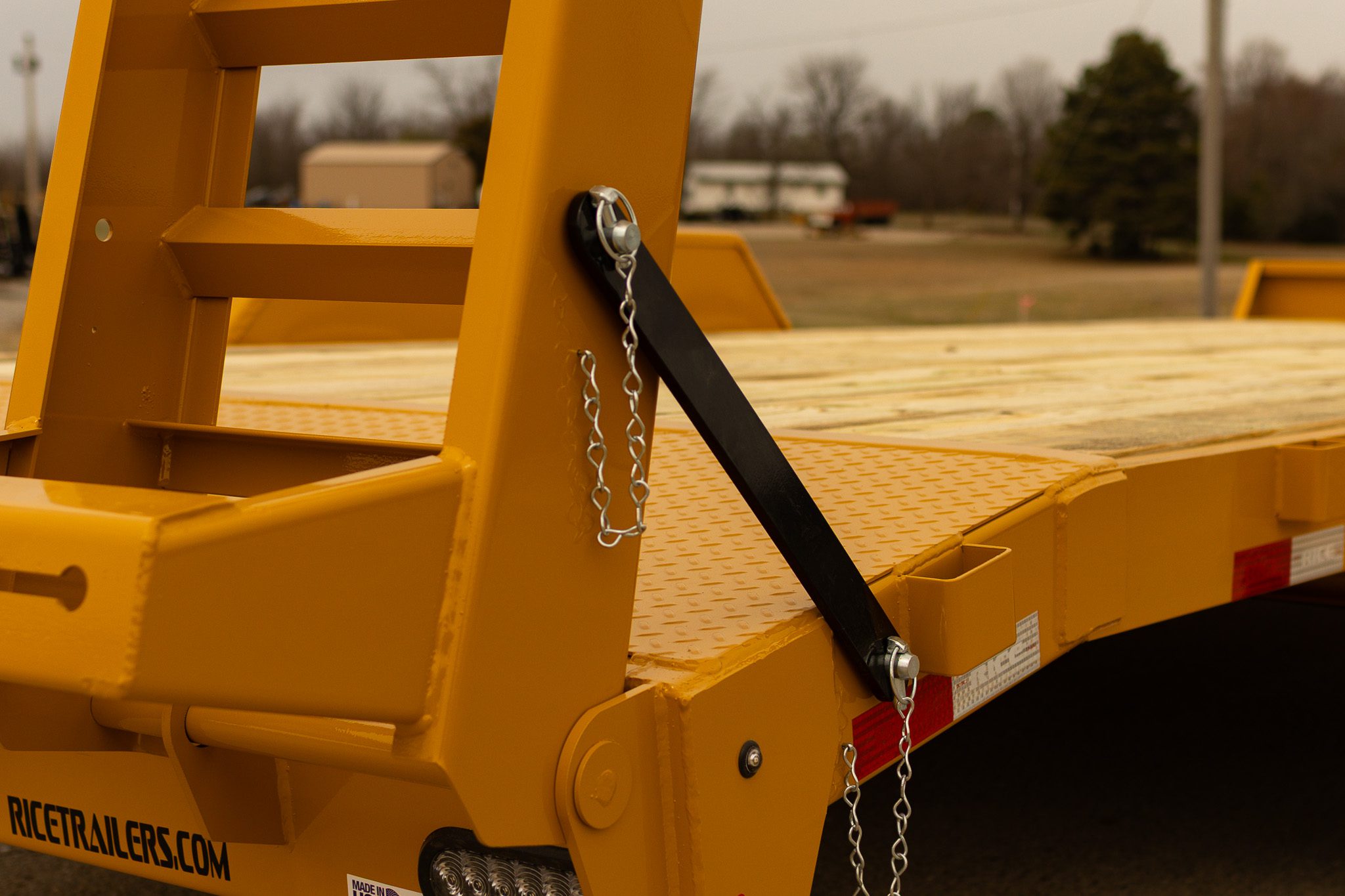

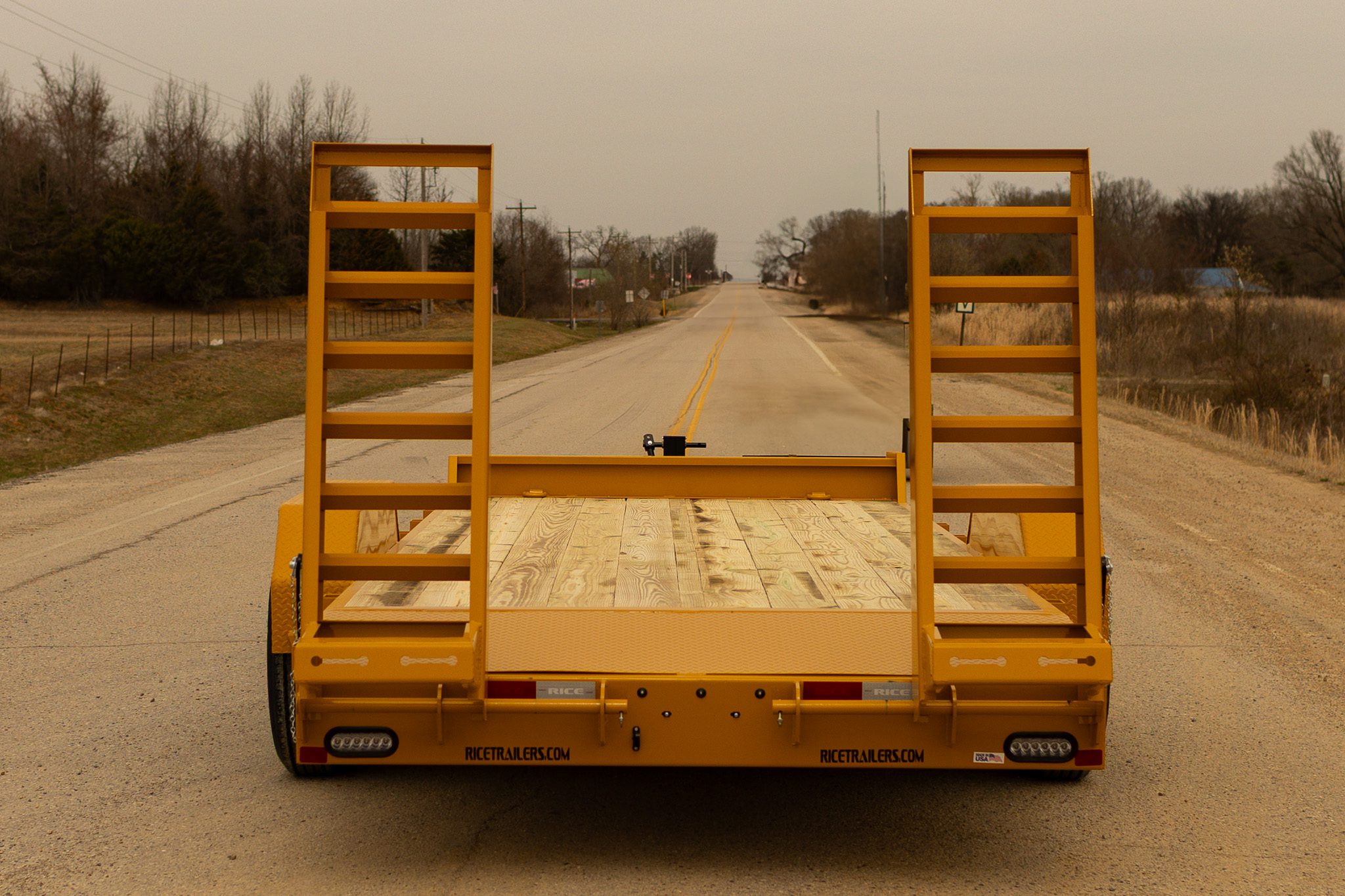

| RAMPS | 5' Fold Up Ramps w/ Spring Assist |
| DOVETAIL | 2' Tread Plate Dovetail |

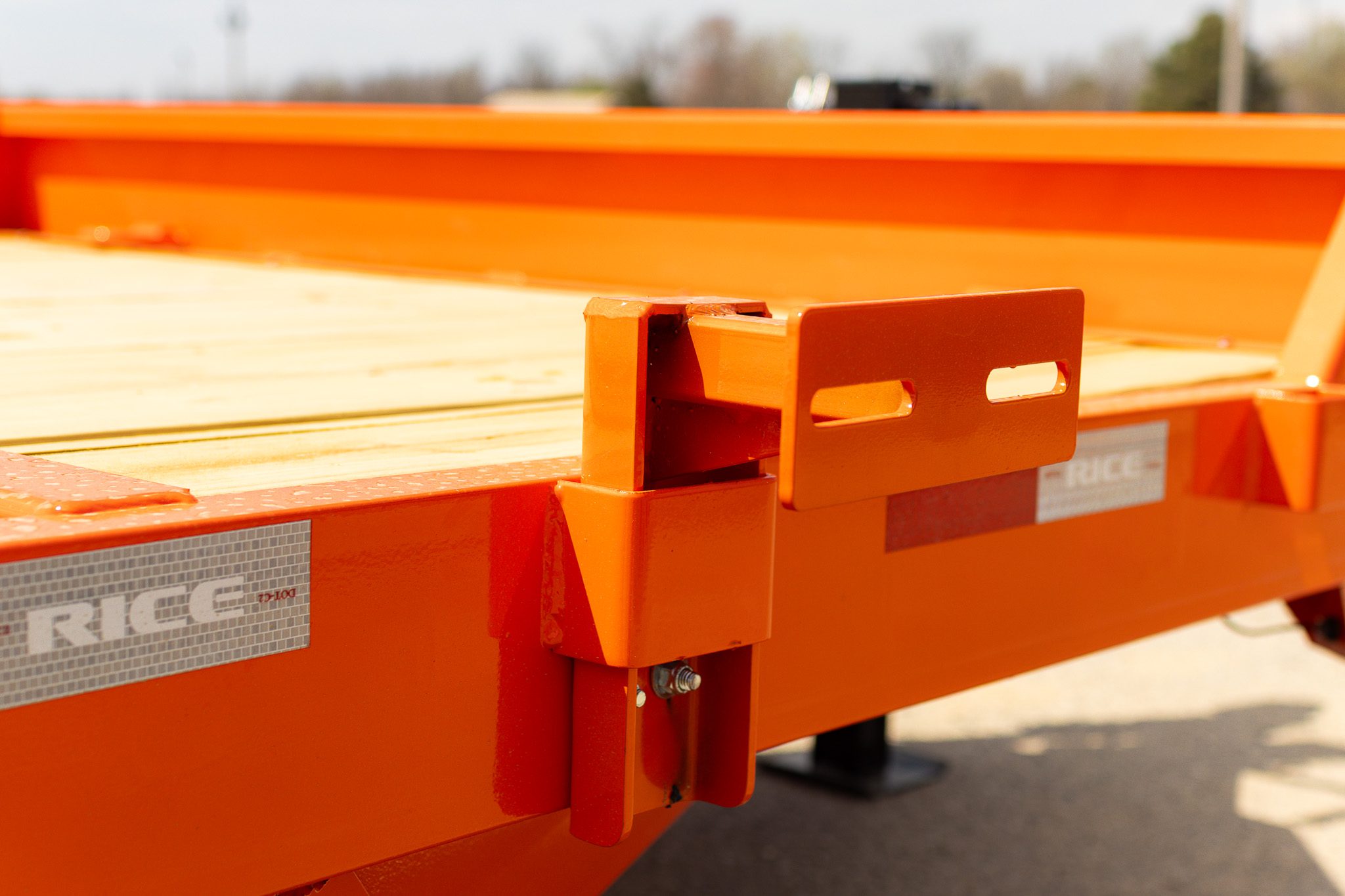

| STAKE POCKETS | Tie Down Stake Pockets Down Side |
| TRAILER PLUG | 7 Way-RV Style |

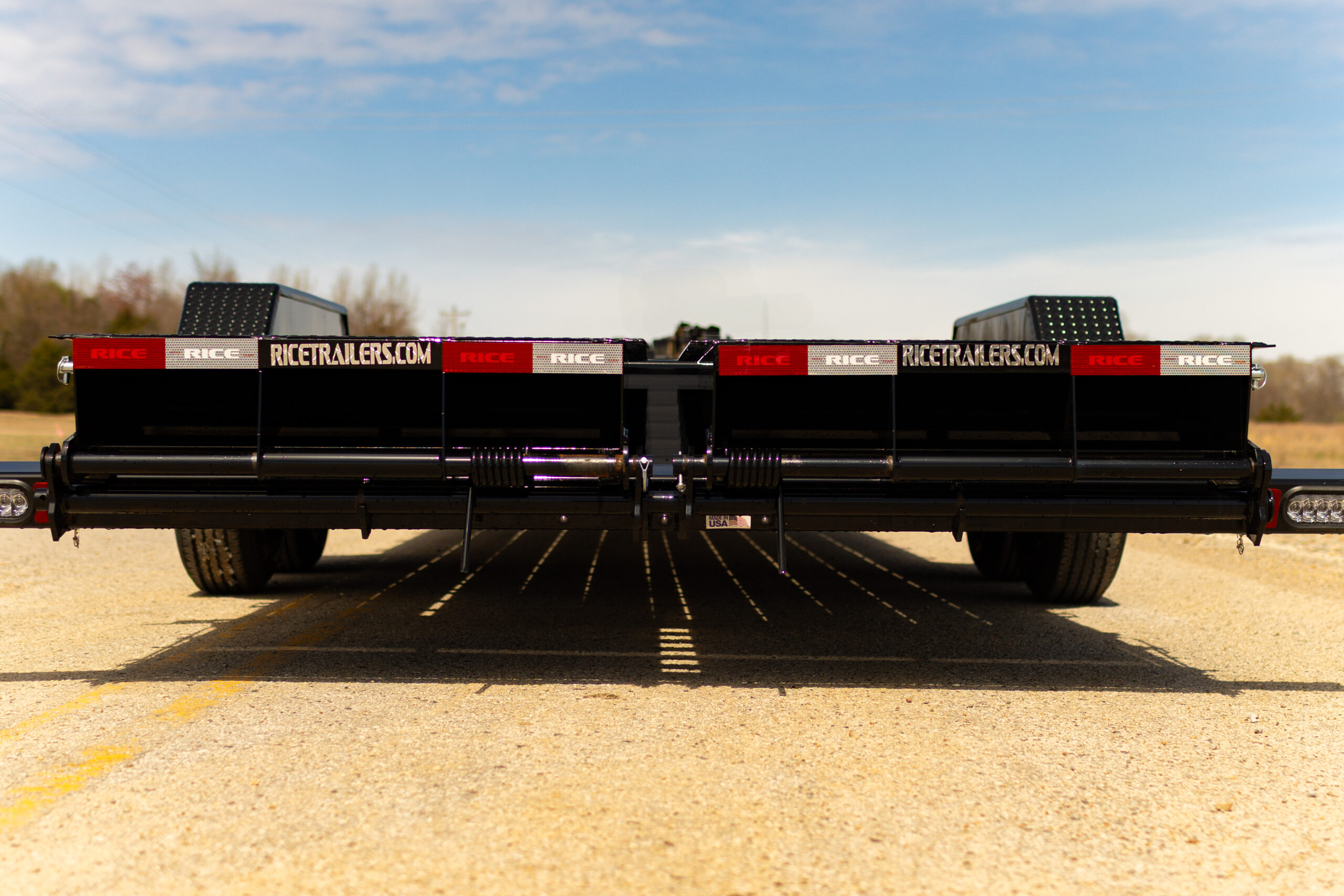

| LIGHTS | D.O.T. Compliant Stop, Tail, Turn, Clearance Lights |
| WIRING | Sealed Modular Wire Harness |
| TIRES | ST235/80R16 Radial Tires |
| WHEEL | 16" Black Mod Wheels |
| BOLT PATTERN | 8 on 6.5 Bolt Pattern |
| SPARE MOUNT | |

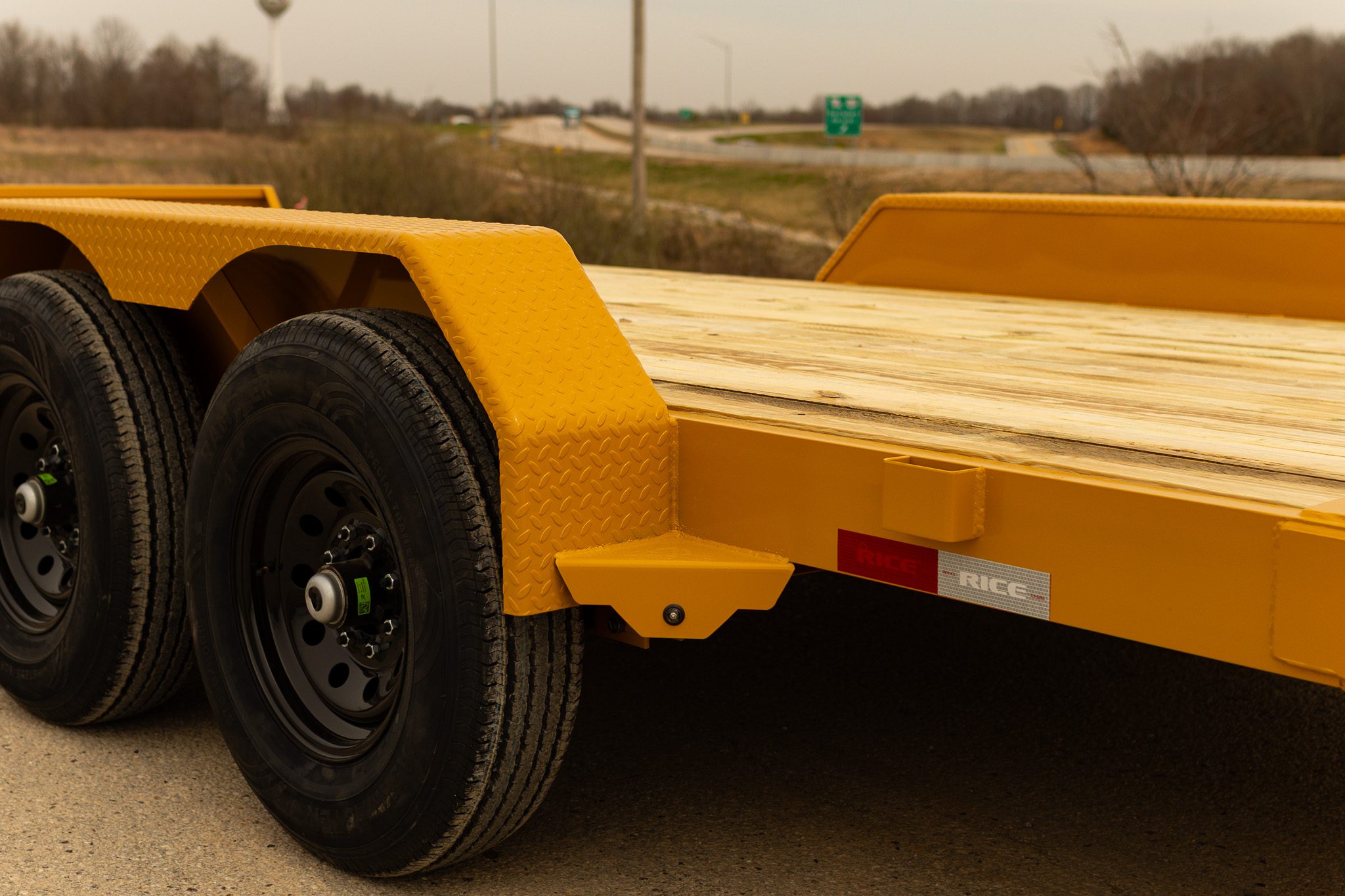

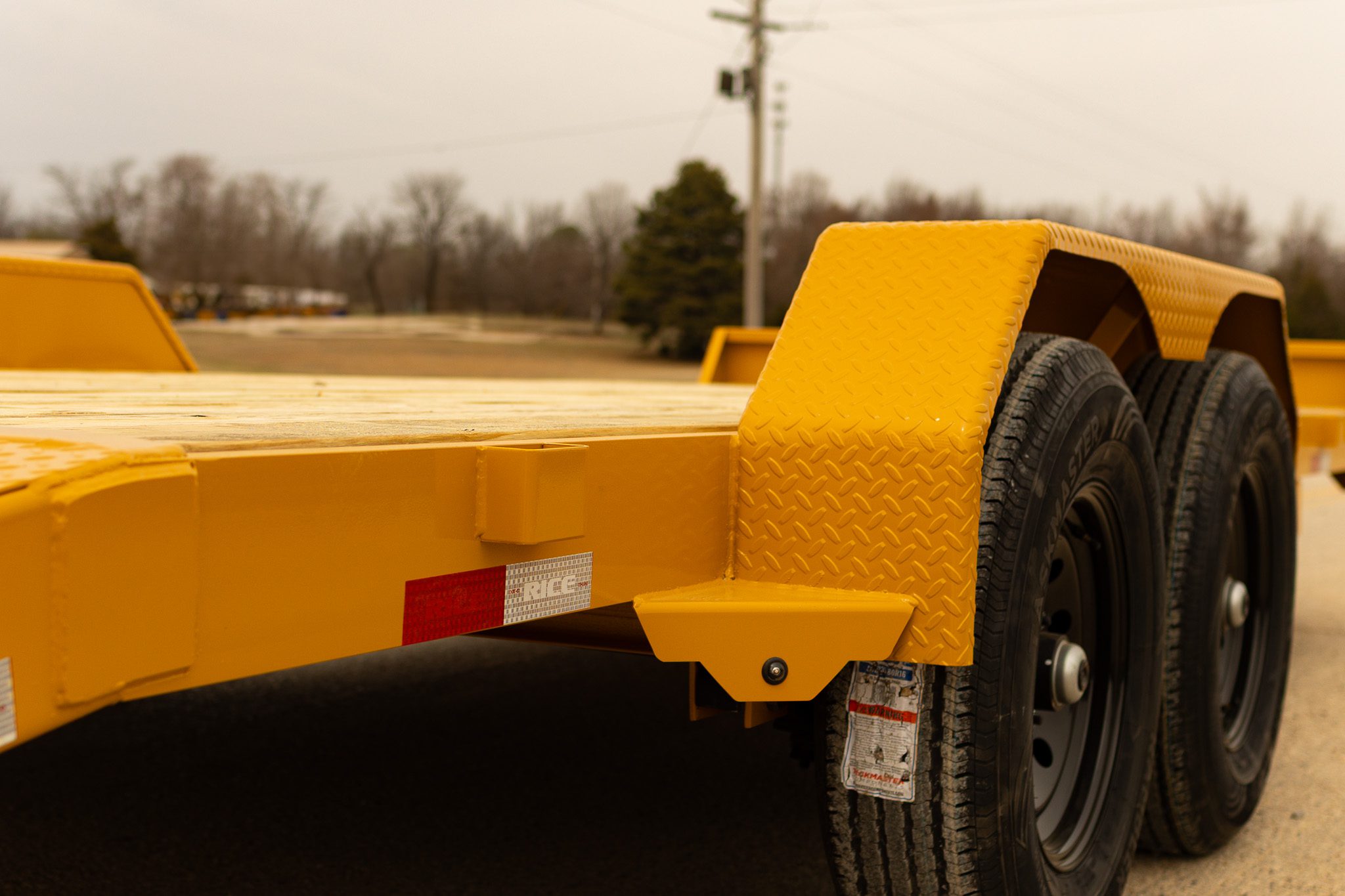

| FENDERS | Heavy Duty Tread Plate Double Broke Hard Fenders |
| SPARE TIRE | |
| PAINT TYPE | Fully Powder Coated |
| PAINT COLOR | Black |
| PRE-TREATMENT | Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed |

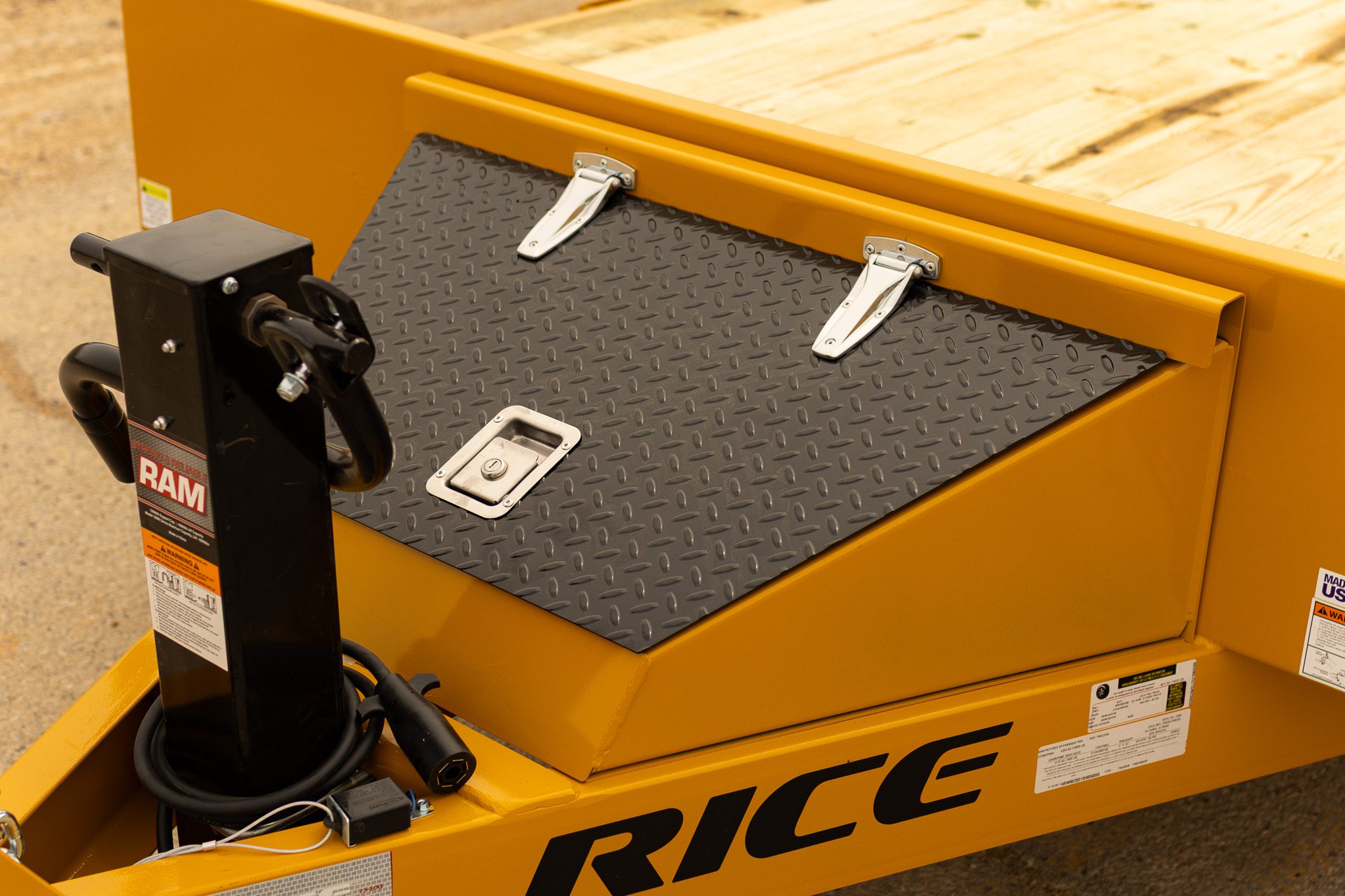

| TOOLBOX | Integrated Bolt On Lockable Storage Box |
- Spare Tire
- Spare Mount

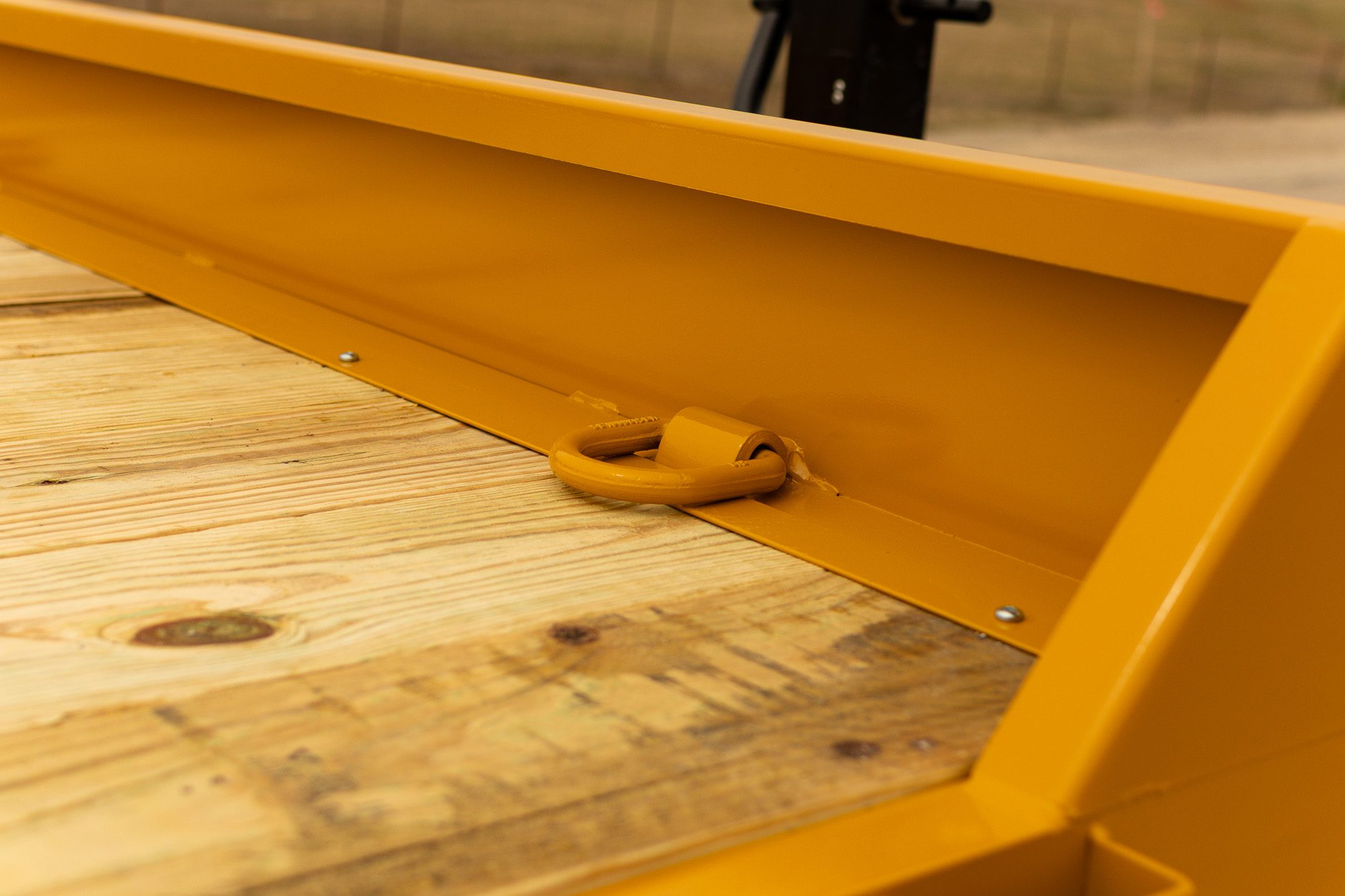

- D-Rings
- Toolbox
- Extra Row-Floor Screws
- Upgrade Jack
- Upgrade Coupler

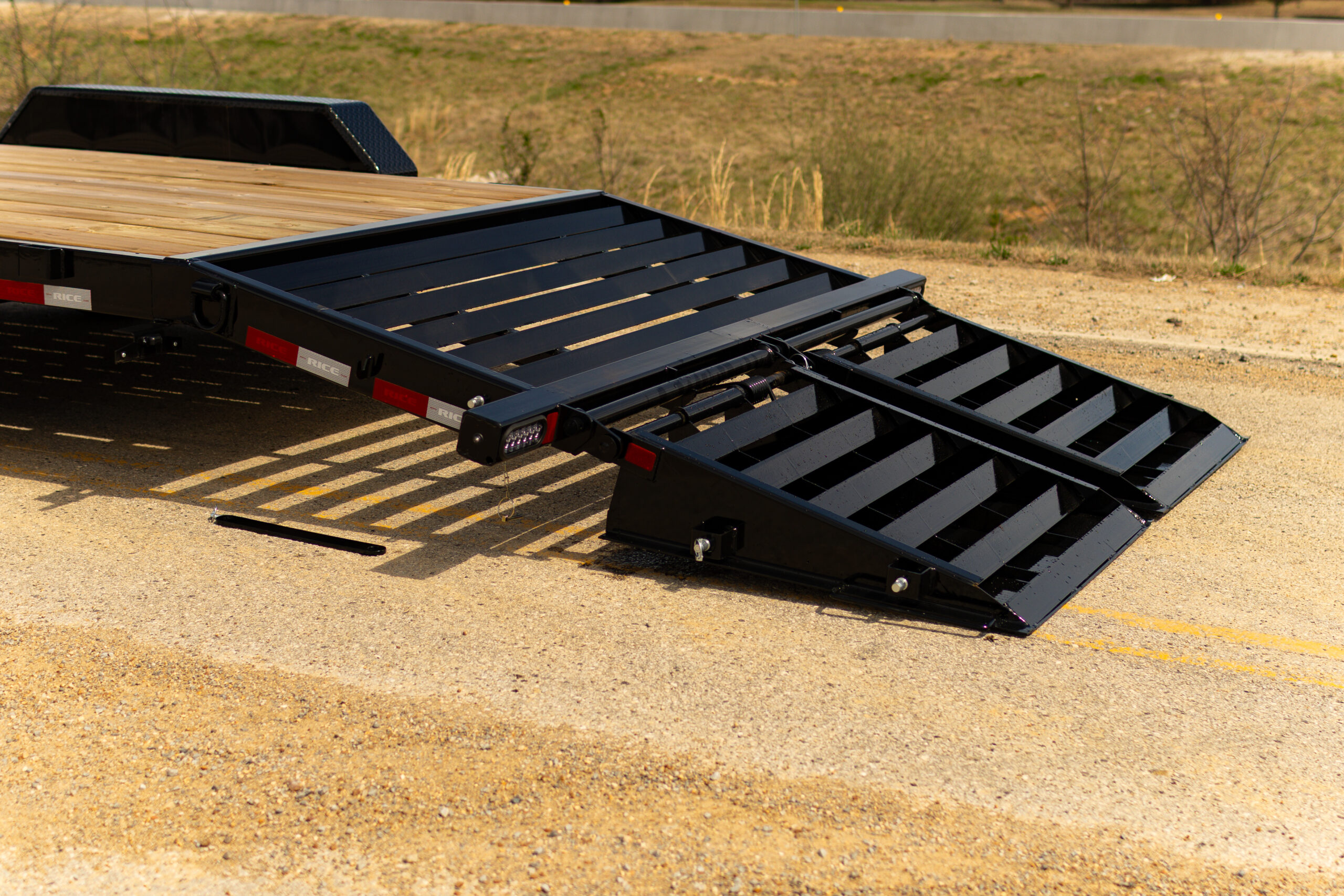

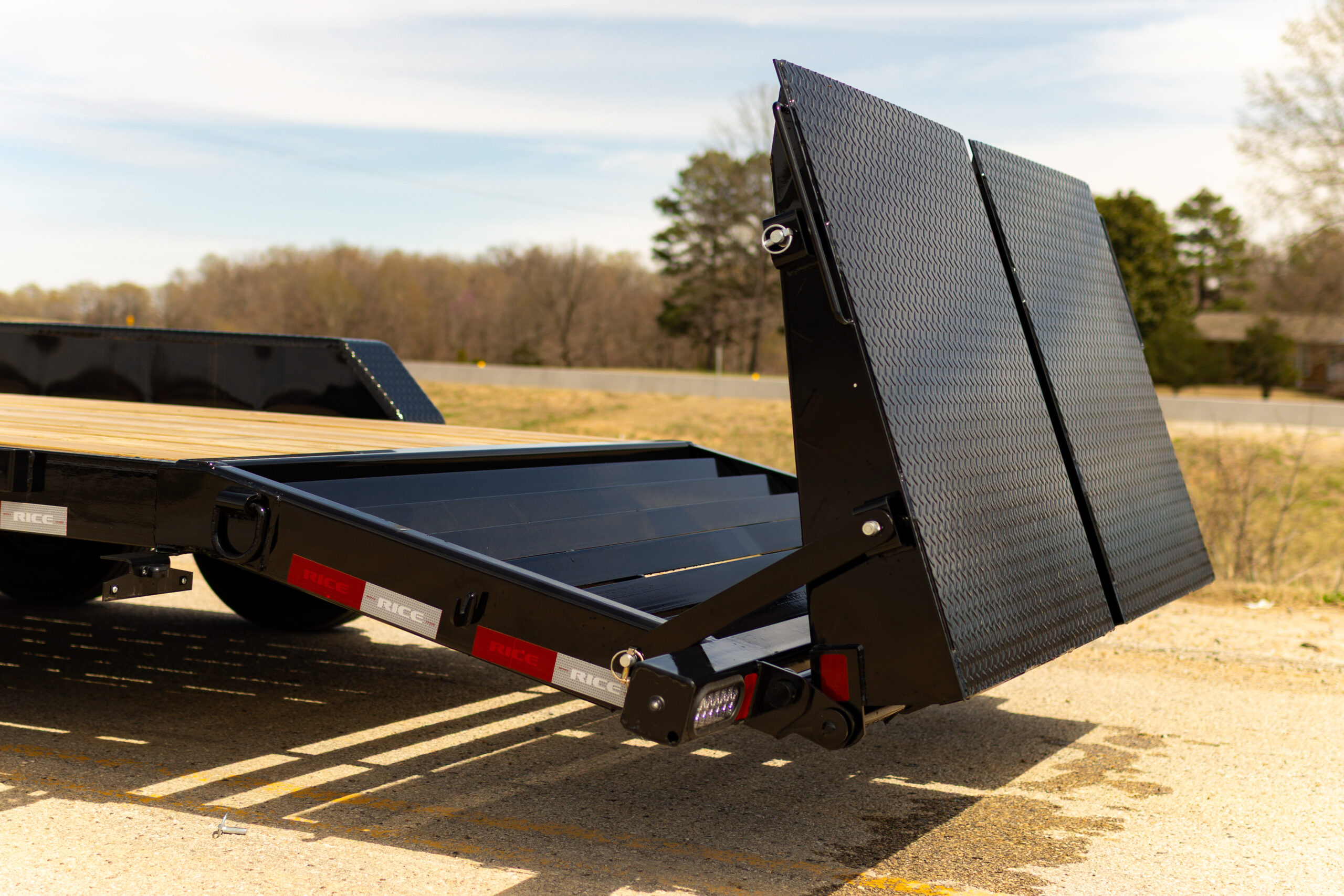

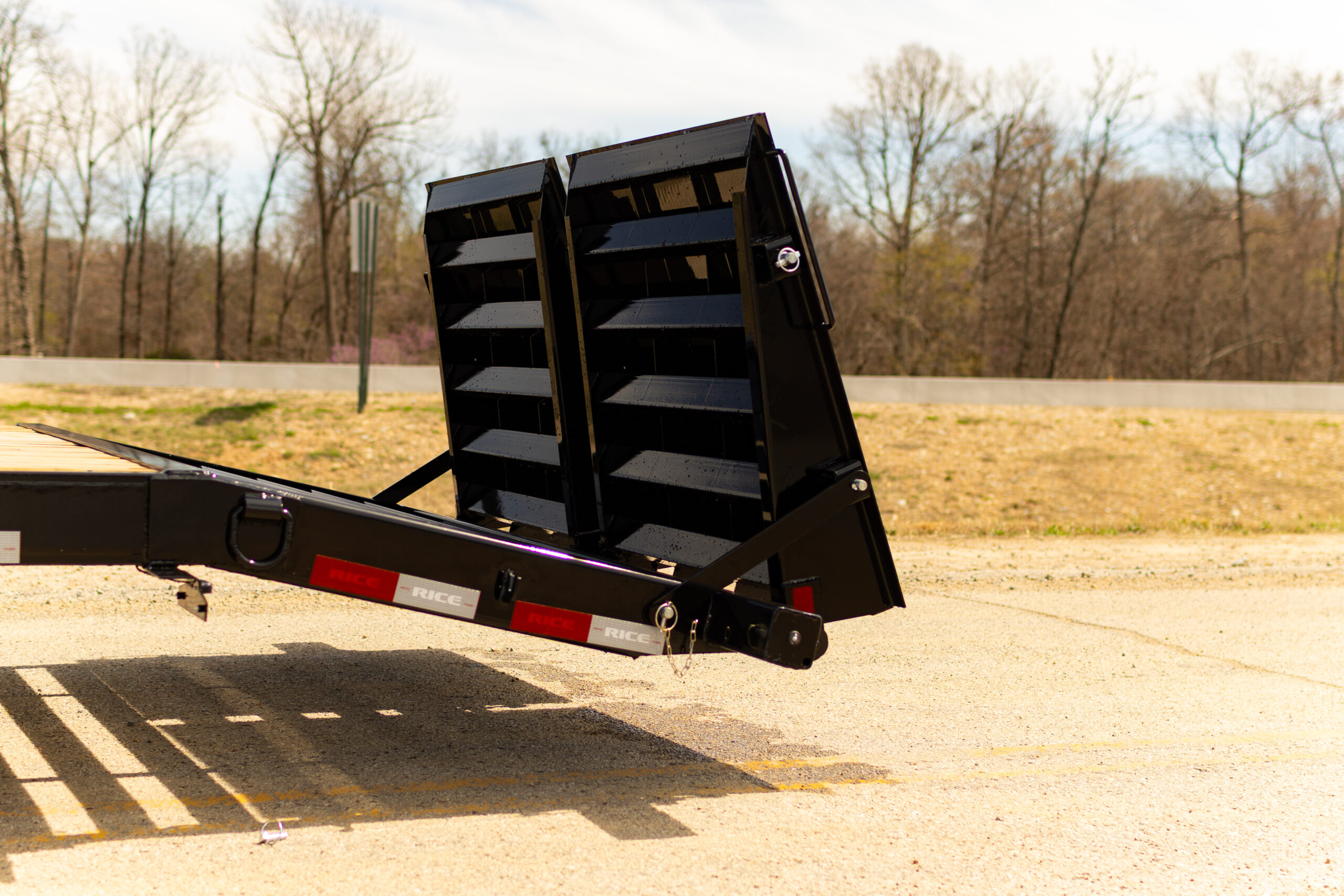

- Upgrade to Max Ramps (Toolbox included)
- Upgrade Tire 14 Ply
- Powder Coat Color Upgrade
