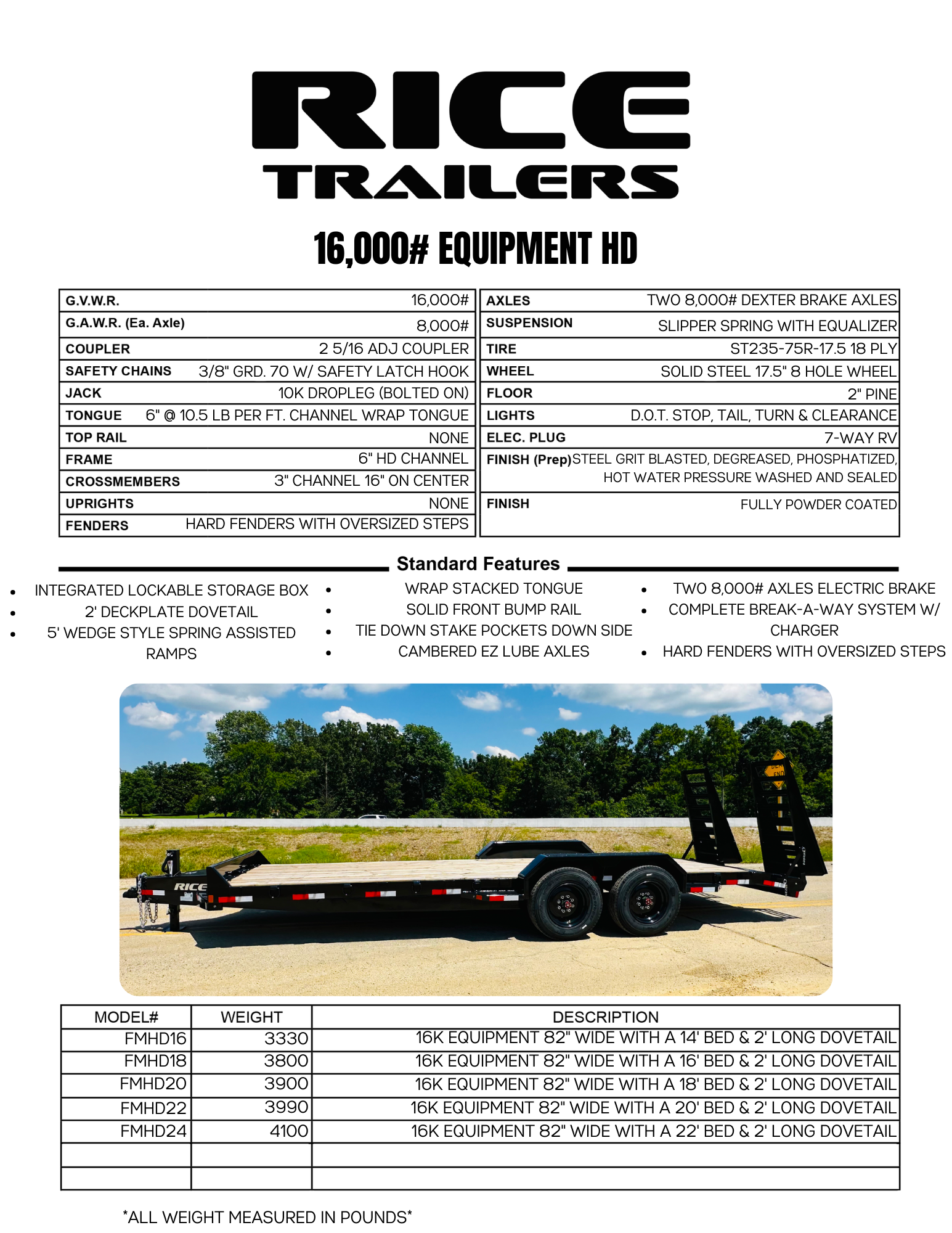

standard features



  • 16,000# Gvwr
  • 2-8000# Cambered EZ Lube Electric Brake Axles
  • Heavy 6" at 10.5 lb per ft. Main Frame and Wrap Tongue
  • 8 Hole 17.5" Wheels 18 Ply Tires
  • 10k Single Jack
  • Integrated Tool Box
  • Heavy Duty Adjustable Coupler

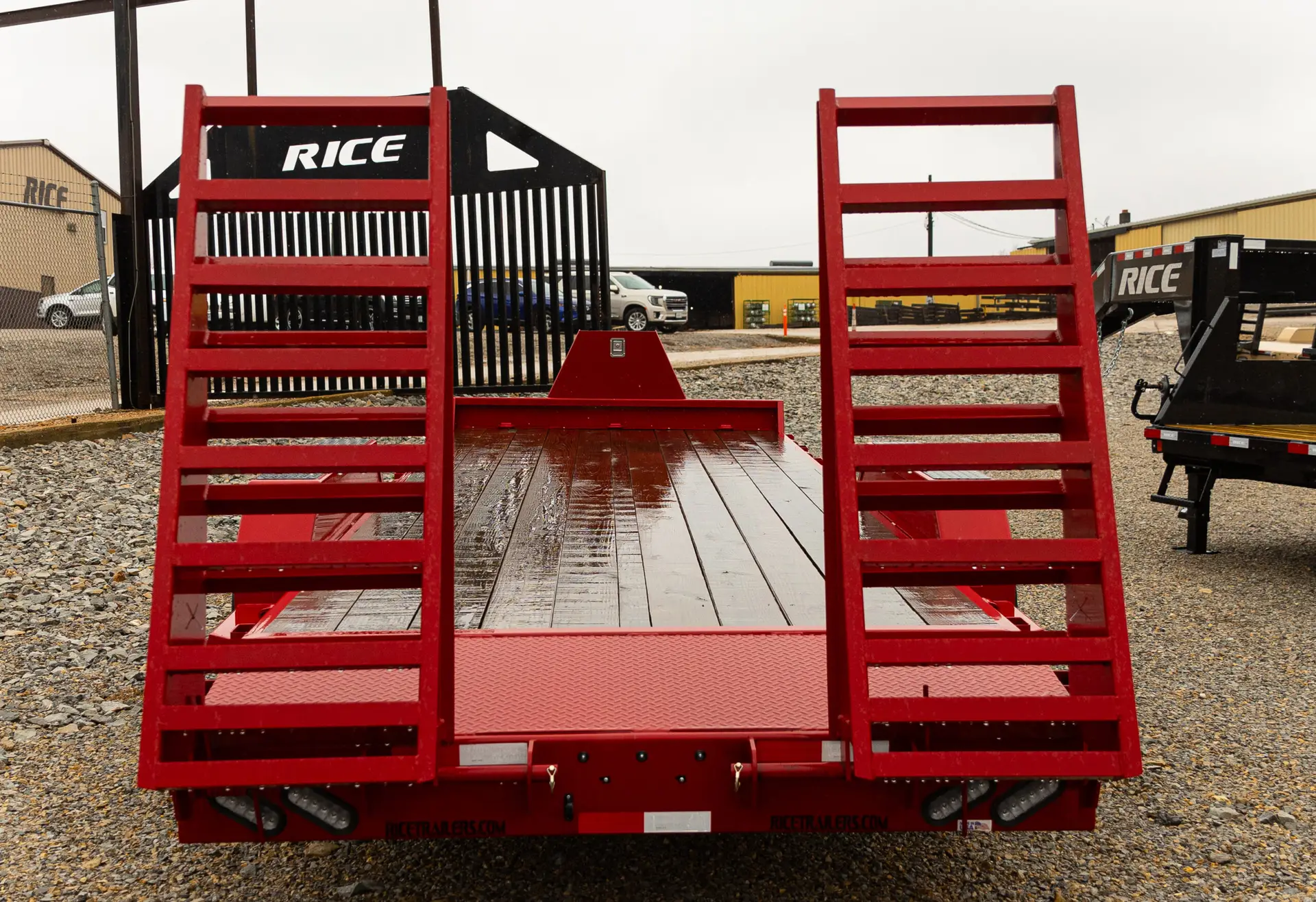

  • 5' Wedge Style Ramps w/ Spring Assist
  • 1/4" Heavy Duty Fabricated Fenders with Oversized Steps
  • 3" Channel Crossmembers on 16" Centers
  • Breakaway Kit
  • Fully D.O.T. Compliant Led Light System
  • Sealed Modular Wire Harness
  • Treated Wood Floor
  • Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed And Sealed
  • Fully Powder Coated


Available Sizes


  • 82" x 14'+2'
  • 82" x 16'+2'
  • 82" x 18'+2'
  • 82" x 20'+2'
  • 82" x 22'+2'


GVWR: 16,000lbs

Dry Weight List:


  • 82" x 14'+2' - 3330lbs
  • 82" x 16'+2' - 3800lbs
  • 82" x 18'+2' - 3900lbs
  • 82" x 20'+2' -3990lbs
  • 82" x 22'+2' -4100lbs
