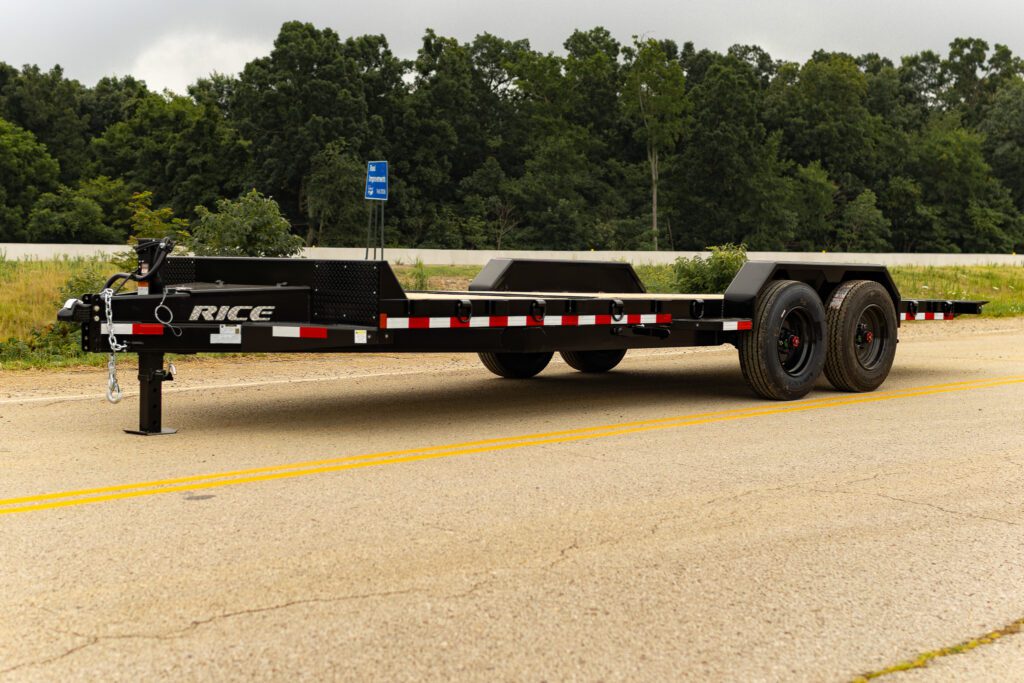

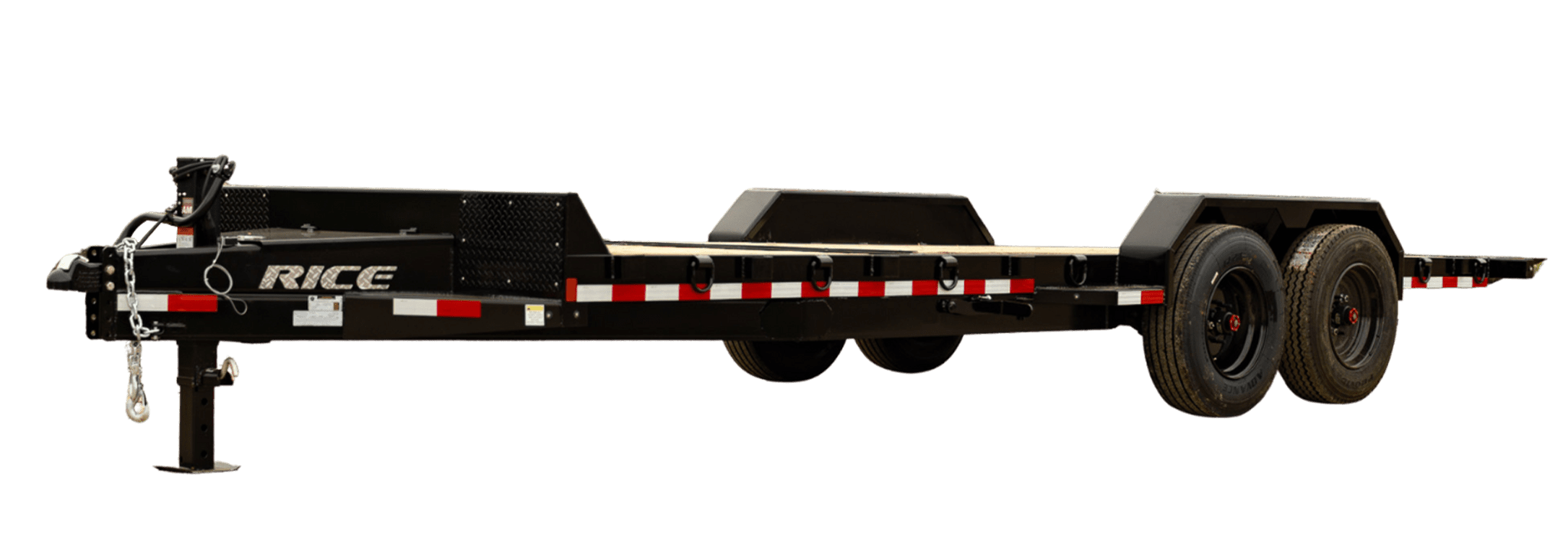

16k heavy duty partial tilt

quick look

GVWR: 16,000#

LENGTH: 20-22ft

AXLES: 2-8000#

Pull Type: Bumper Pull

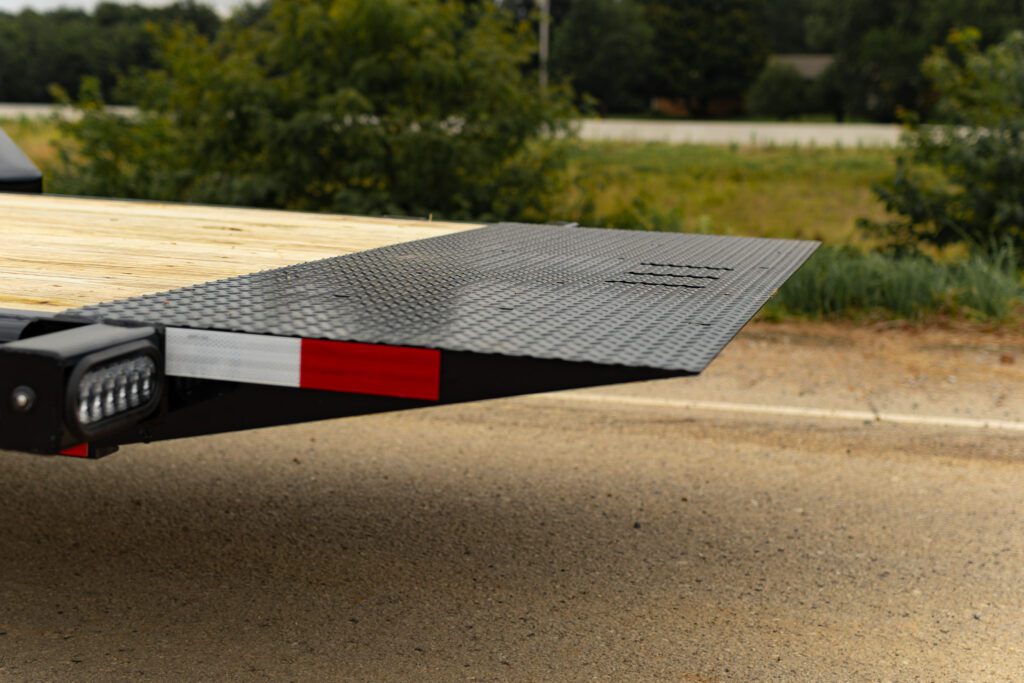

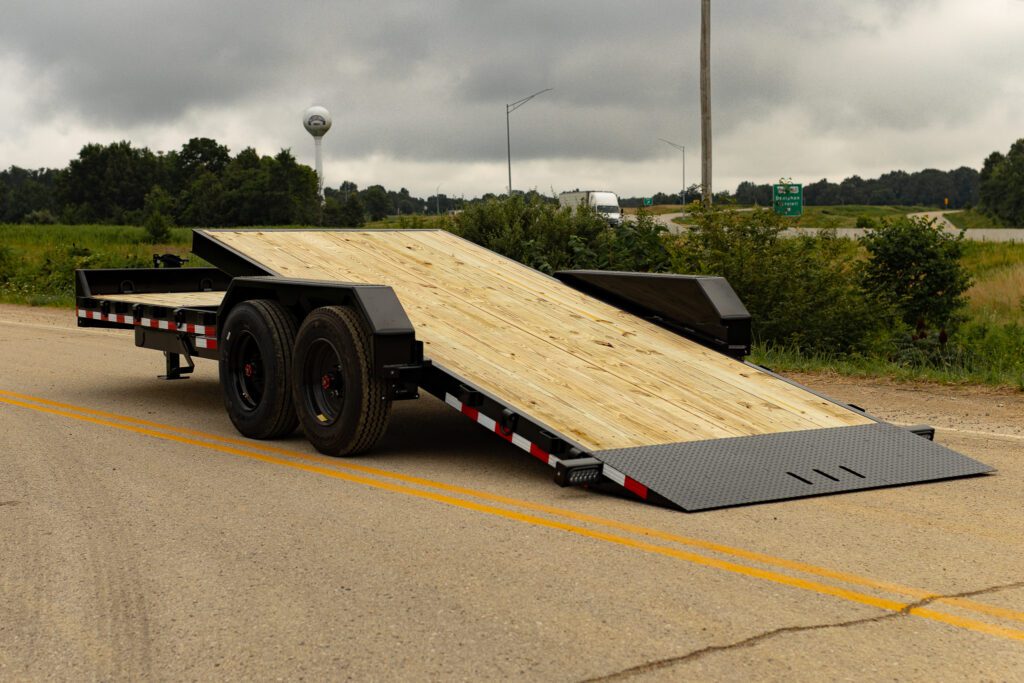

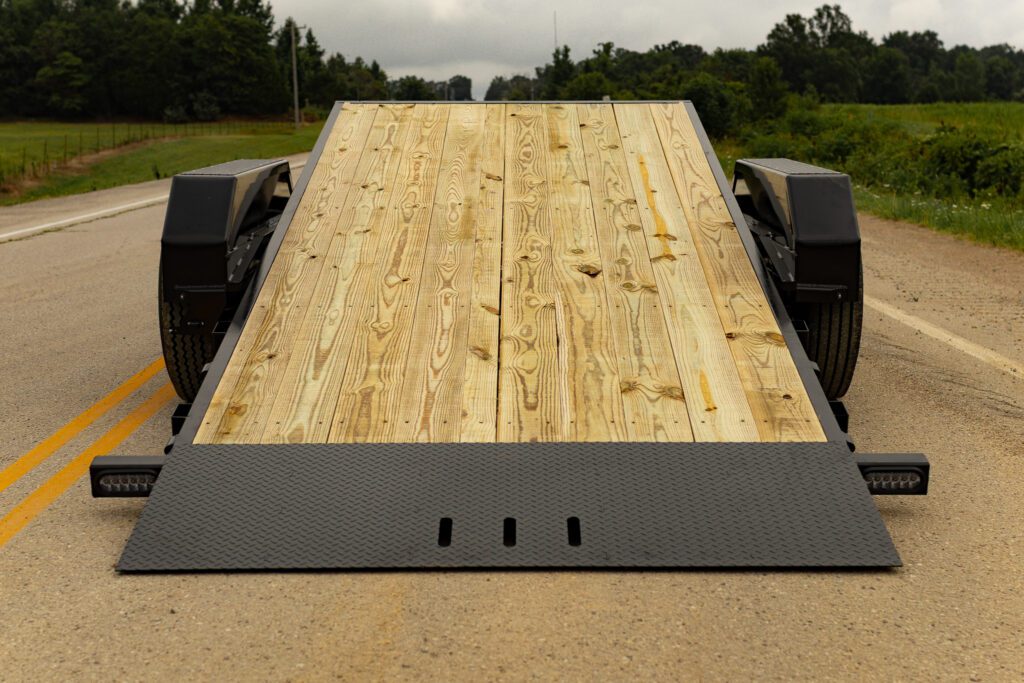

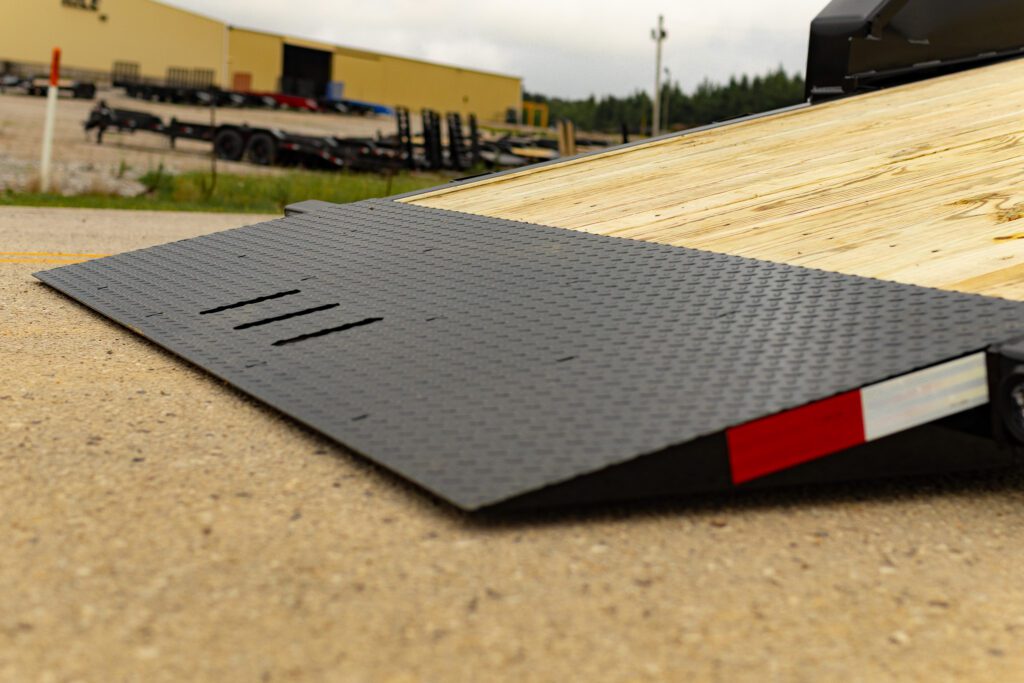

Knife Edge Tilt Bed​
A flush tilt bed gives you a seamless transition from the ground to the trailer deck, eliminating the need for ramps.
Signature Integrated ToolBox
Seamlessly built into the frame of the trailer lockable design keeps your tools safe on the job site or in transit

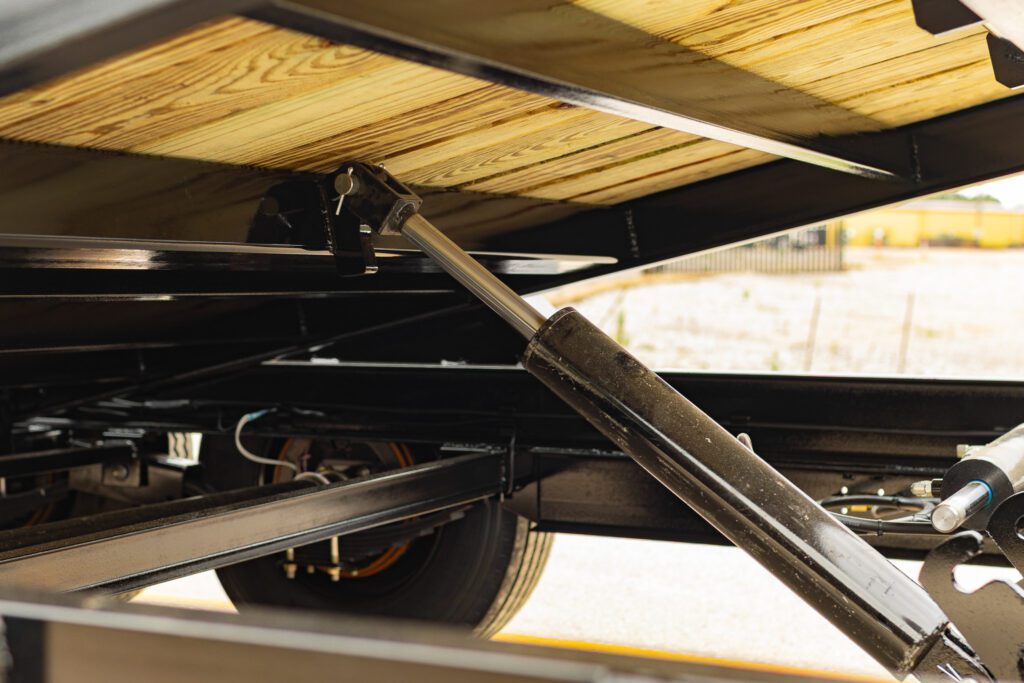

Hydraulic System​
Fully adjustable system making for a smooth transition into the loading or up position.
  • 82″X16+4
  • 82″X16+6
  • 82″X16+4-4080#
  • 82″X16+6-4090#
STANDARD FEATURESDETAILS
AXLES2-8000# Dexter Cambered Lube Electric Brake Axles
BRAKESElectric Brakes
SUSPENSIONSlipper Spring w/ Equalizer

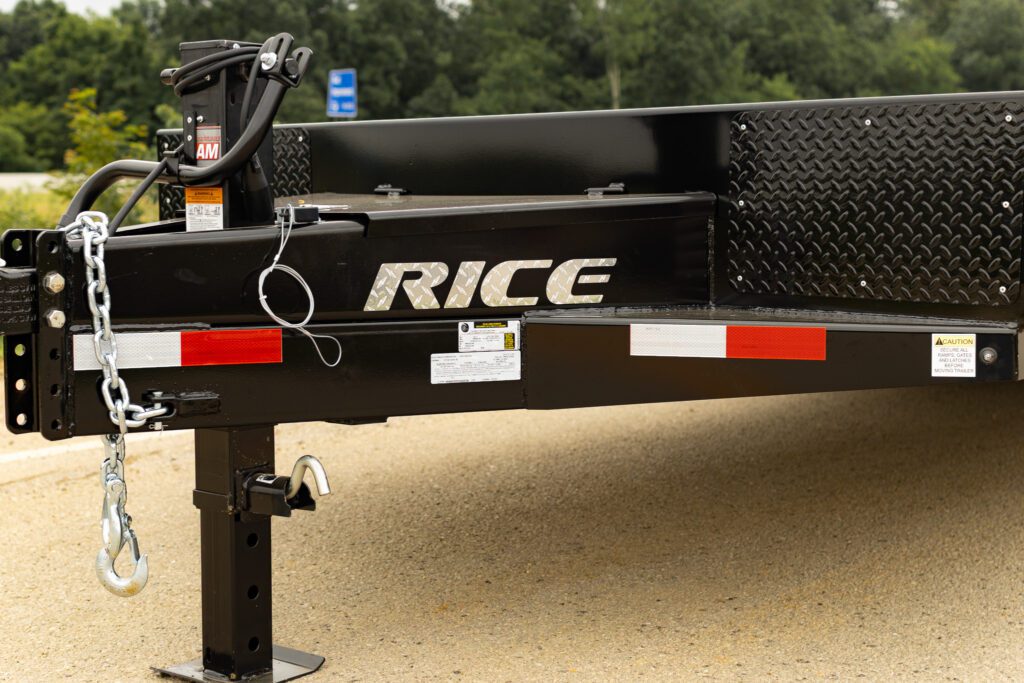

COUPLER2-5/16" Adjusted Coupler
SAFETY CHAINS3/8" GRD. 70 w/ Safety Latch Hook
JACK10K Drop Leg Jack Bolted On
FRAME6" HD Channel Main Frame & Tilt Deck
CROSS-MEMBERS3" Channel Crossmembers on 16" Centers
FLOORPressure Treated w/ Pine Floor
RAMPSKnife Edge Rear Tilt Bed
DOVETAILReverse Dovetail
STAKE POCKETSTie Down Stake Pockets Down Side
TRAILER PLUG7-Way RV
LIGHTSD.O.T. Compliant Stop, Tail, Turn, Clearance Lights
WIRINGSealed Modular Wire Harness
TIRESST235/80R16
WHEELSolid Steel 17.5"
BOLT PATTERN8 Bolt Pattern
SPARE MOUNT

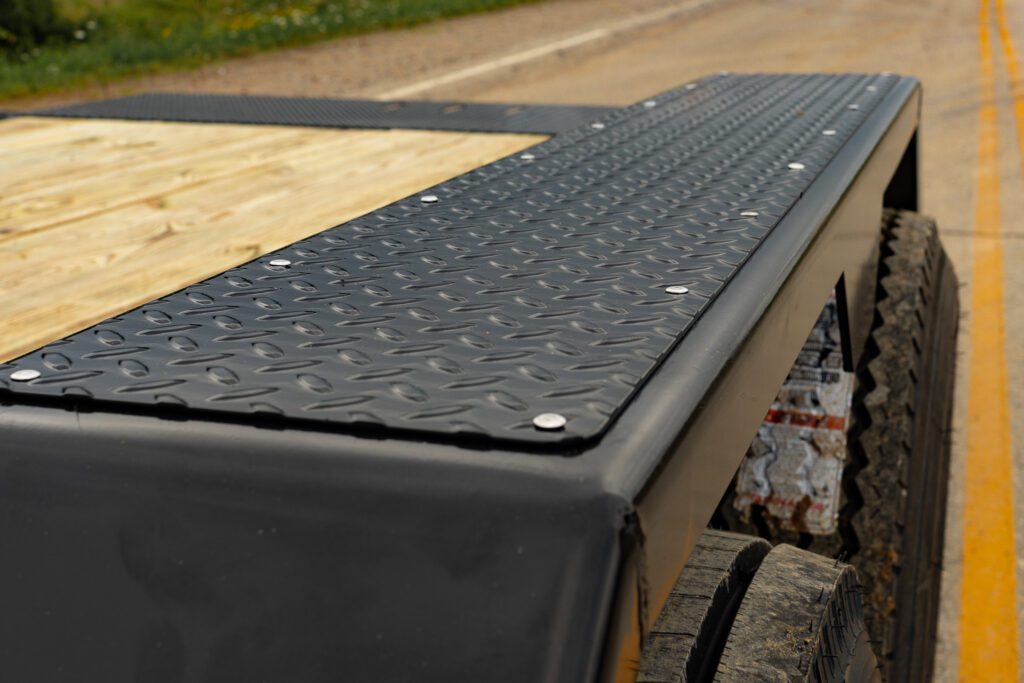

FENDERSHard Fenders with Oversized Steps
SPARE TIRE
PAINT TYPEFully Powder Coated
PAINT COLORBlack
PRE-TREATMENTSteel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed
TOOLBOXIntegrated Lockable Storage Box
  • Spare Mount
  • Spare Tire

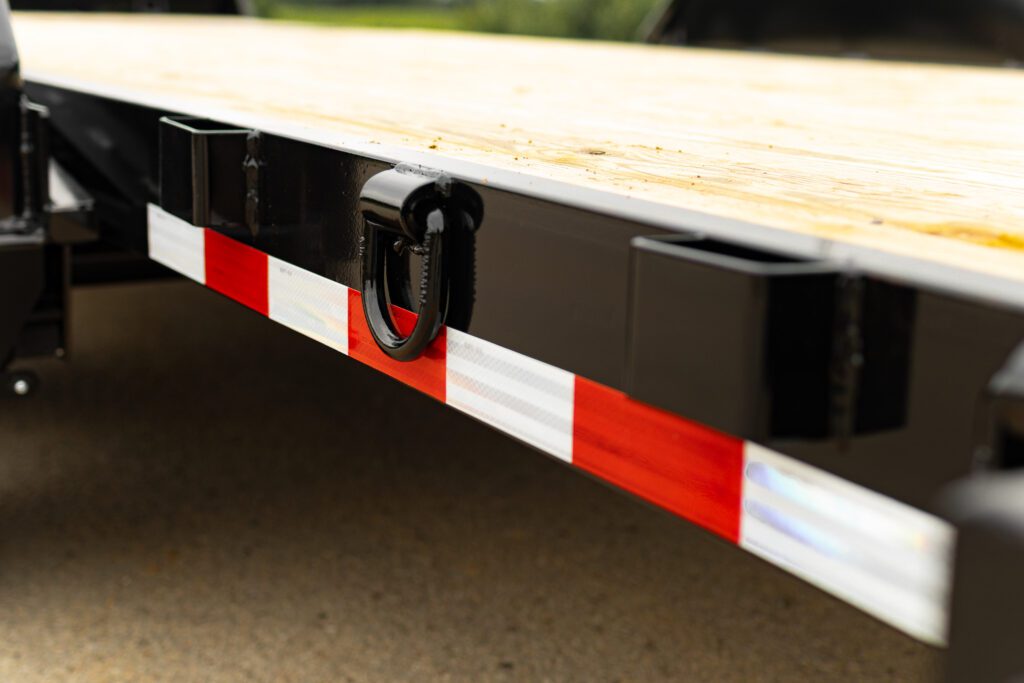

  • D-Rings
  • Extra Row-Floor Screws
  • Upgrade Jack
  • Upgrade Coupler
  • Upgrade Tire 14 Ply
  • Powder Coat Color Upgrade
