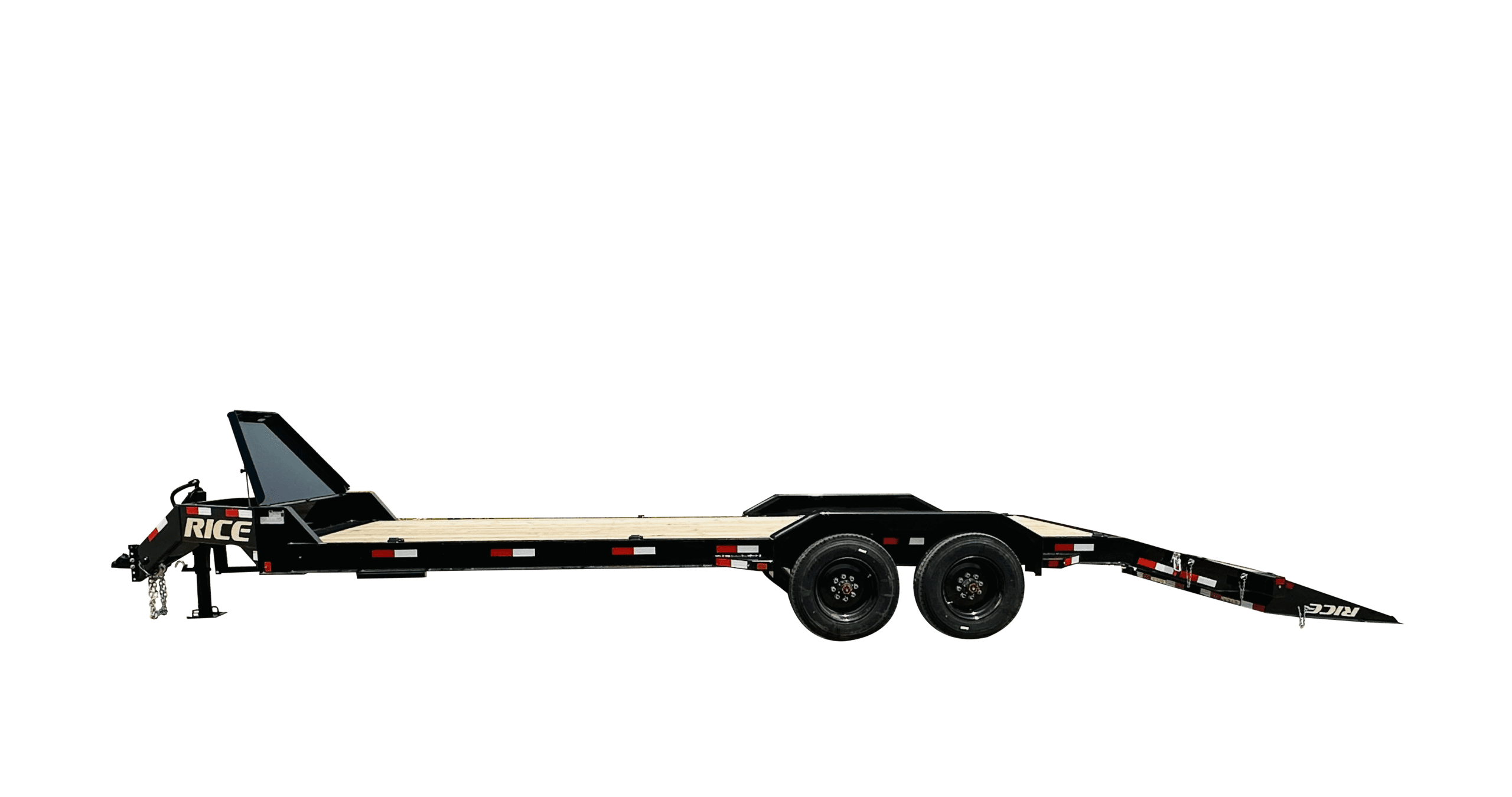

ProMax HD Flatbed

quick look

GVWR: 20,000#

LENGTH: 22-24ft

AXLES: 2- 10,000#

Pull Type: Bumper Pull

Signature Integrated ToolBox

Fully integrated, oversized toolbox welded right into the frame for maximum durability and security.

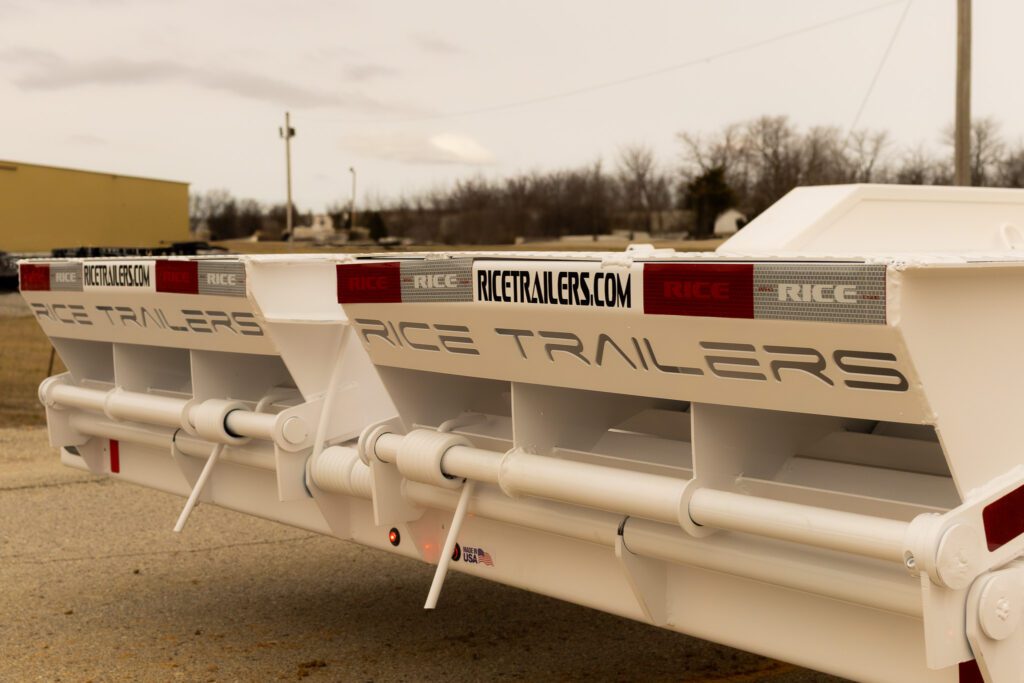

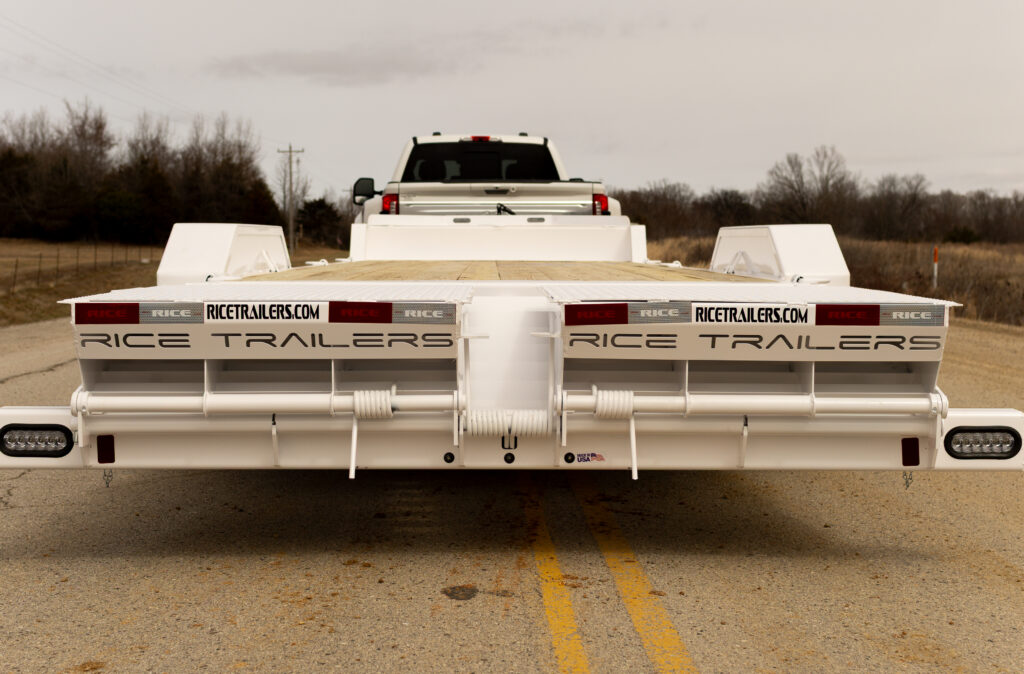

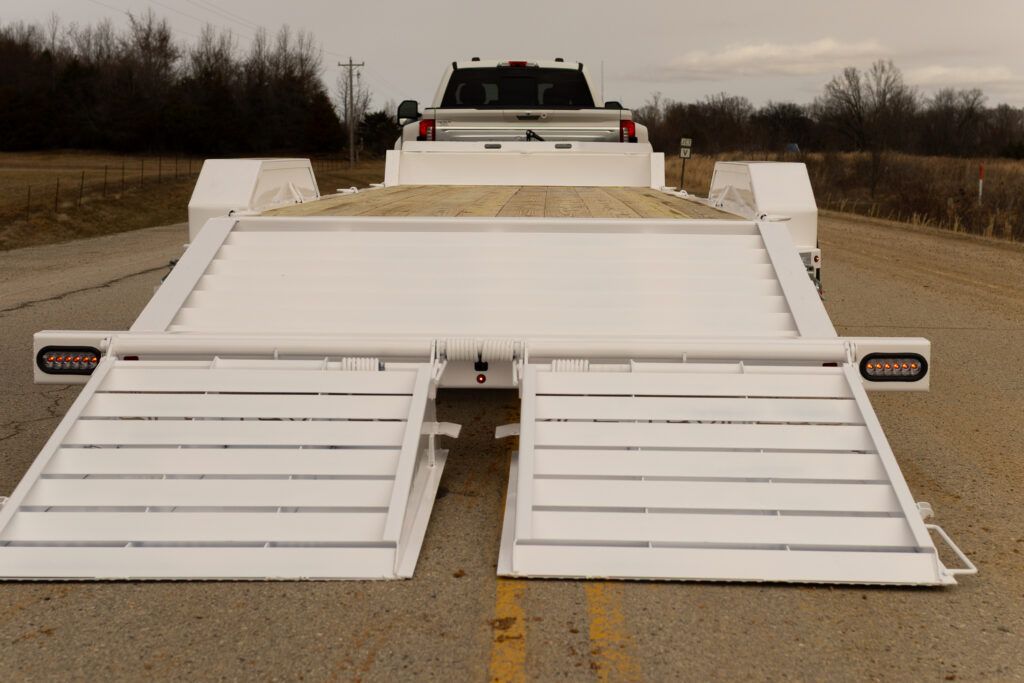

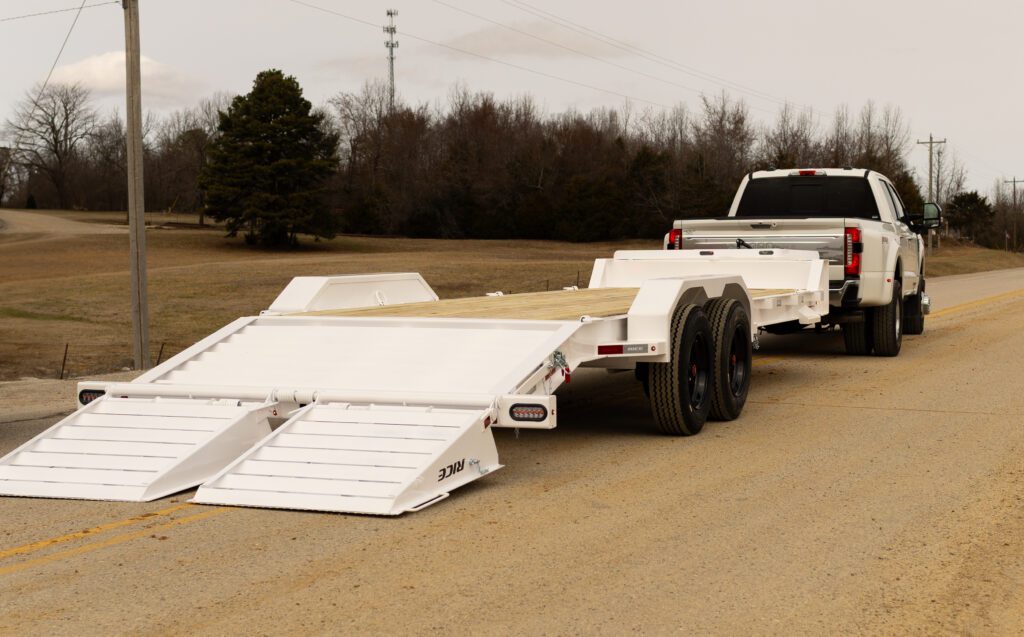

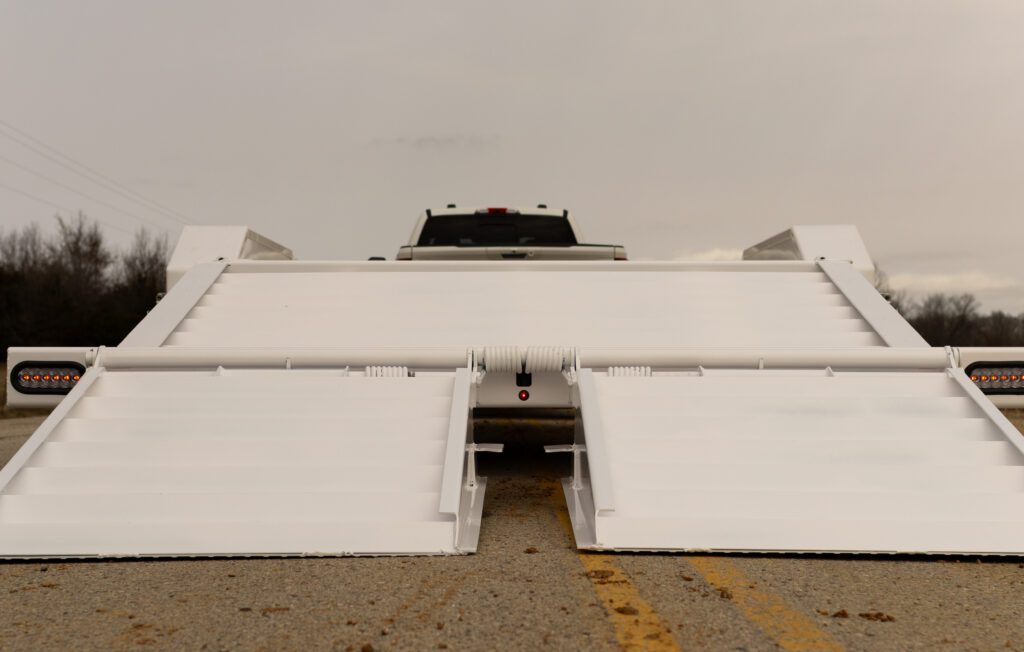

Max Ramps

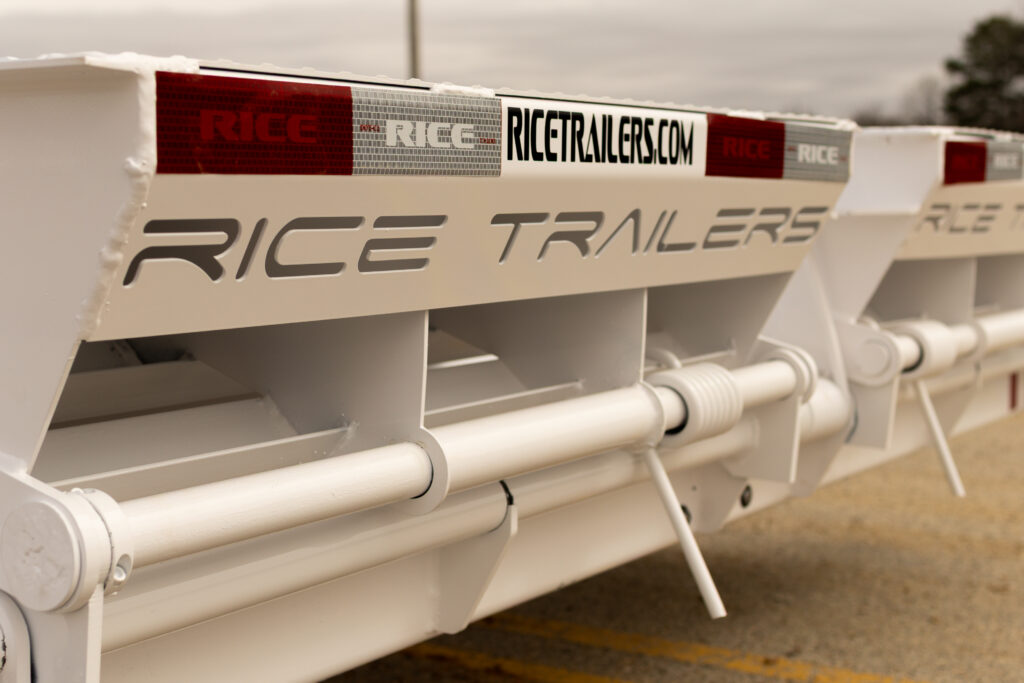

Ramps that expand the width of the trailer loaded with double springs to help make retracting an ease for anyone.

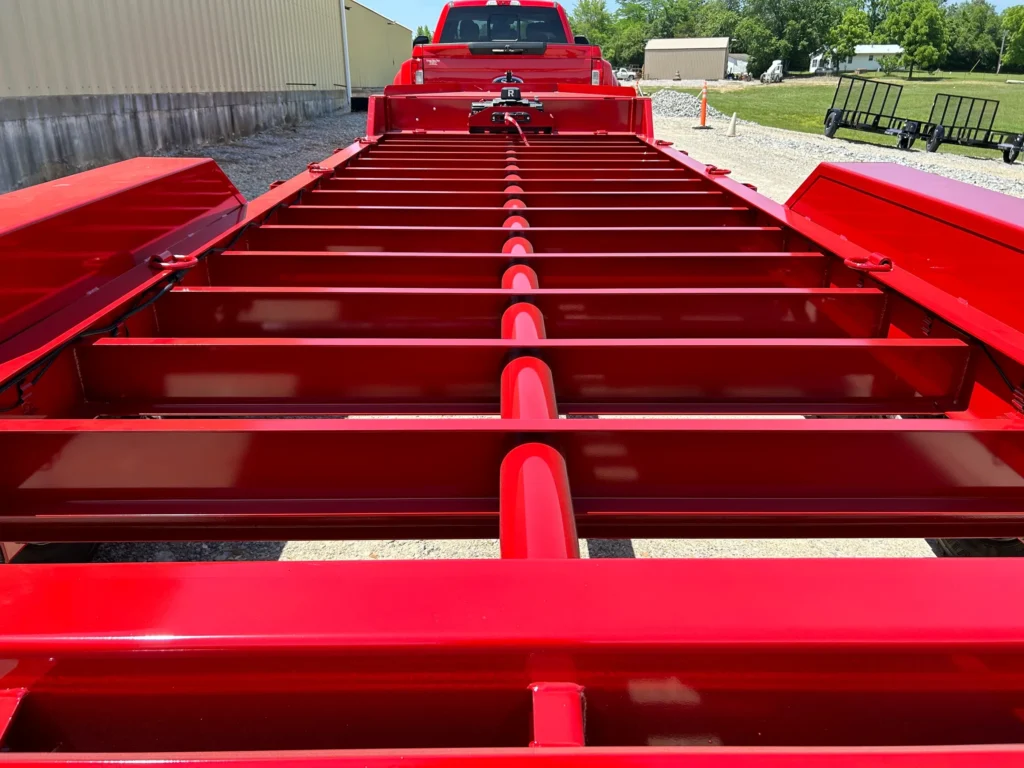

Torque Tube

A heavy-duty reinforcement going the full length of the trailer that resists twisting and flexing when the trailer is under heavy loads or uneven pressure.

18’+4′
20’+4′

18’+4′-4100#
20’+4′-4250#

STANDARD FEATURES	DETAILS
AXLES	2-10,000# Dexter Torsion
BRAKES	2-Electric Brakes
SUSPENSION
COUPLER	2 5/16 Adj Coupler
SAFETY CHAINS	3/8" GRD. 70 w/ Safety Latch Hook
JACK	Dual 12k Drop Leg Jacks Bolted On
FRAME	15LB Beam
CROSS-MEMBERS	16" on Center w/ Intergrated Torque Tube

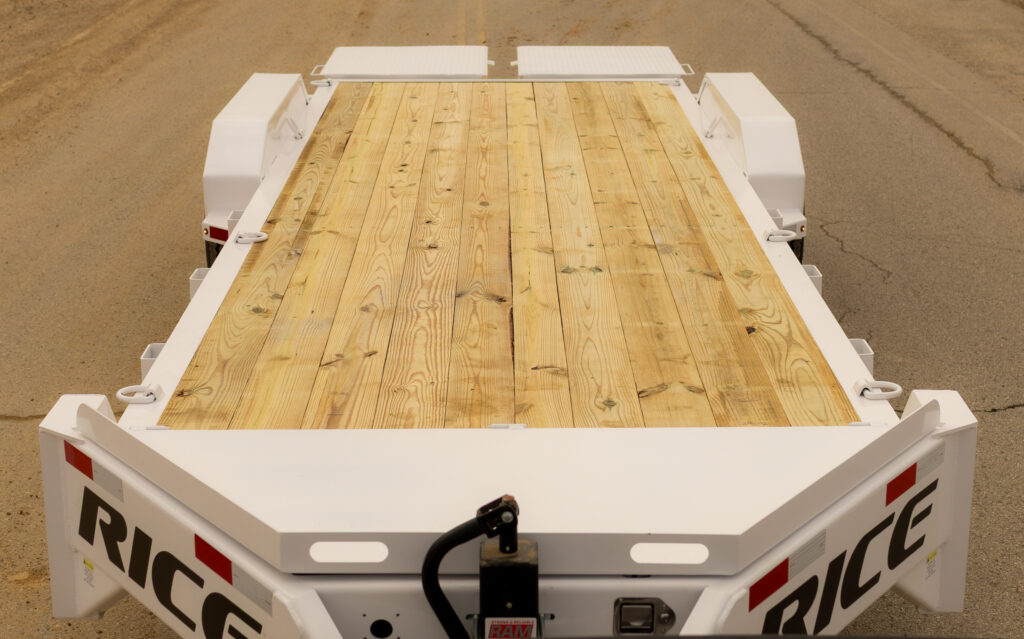

FLOOR	Pressure Treated 2" Pine Floor
RAMPS	5' Double Hinged Spring Assisted Full Width
DOVETAIL	5' Cleated Dovetail
STAKE POCKETS	Stake Pockets Down Side, 24" on Center
TRAILER PLUG	7-Way RV Type
LIGHTS	D.O.T. Compliant Stop, Tail, Turn, Clearance Lights
WIRING	Sealed Modular Wire Harness
TIRES	ST235/75R17.5
WHEEL	17.5 Steel
BOLT PATTERN	8 Bolt Pattern
FENDERS	HD Fabricated Extended Fenders
TONGUE	5' Double Hinged Spring Asst. Full Width
PAINT TYPE	Fully Powder Coated
PAINT COLOR	Black
PRE-TREATMENT	Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed
TOOLBOX	Integrated Large Lockable Storage Box
