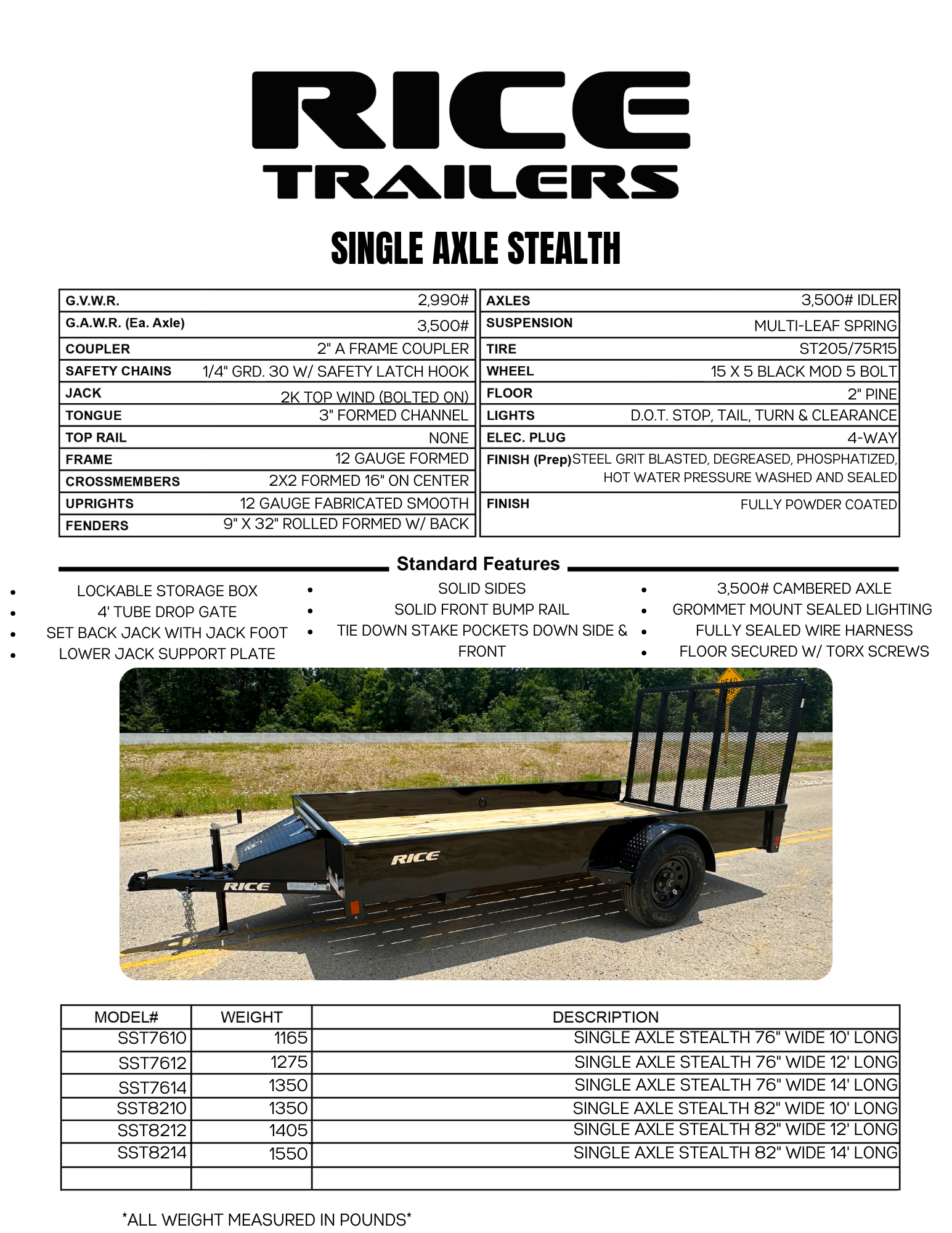

Single Axle Stealth

quick look

GVWR: 2,990#

LENGTH: 10-14ft

AXLES: 3,500#

Pull Type: Bumper Pull

4' Tube Drop Gate​
Dually latched and sturdy enough to drive up small equipment.
Spring Loaded Latches​
Latches securing both sides of the 4' gate ensures your load is secured and ready to roll.
Bolted in Jack​
2000# jack set back and bolted in to make it secured and ready for easy use.
  • 76″X10′
  • 76″X12′
  • 76″X14′
  • 82″X10′
  • 82″X12′
  • 82″X14′
  • 76″X10′-1165#
  • 76″X12′-1275#
  • 76″X14′-1350#
  • 82″X10′-1350#
  • 82″X12′-1405#
  • 82″X14′-1550#
STANDARD FEATURESDETAILS
AXLES3500# Idler
SUSPENSIONMulti-Leaf Spring
COUPLER2" A Frame Coupler
SAFETY CHAINS1/4 GRD. 30 w/ Safety Latch Hook
JACK2k Top Wind Bolted On
FRAME12 Gauge Formed
CROSS-MEMBERS2x2 Formed 16" on Centers
FLOORPressure Treated w/ Pine Floor
RAMPS4' Tube Drop Gate
DOVETAIL
STAKE POCKETSTie Down Stake Pockets Down Side & Front
TRAILER PLUG4-Way
LIGHTSD.O.T. Compliant Stop, Tail, Turn, Clearance Lights
WIRINGSealed Modular Wire Harness
TIRESST205/75R15
WHEEL15X5 Black MOD
BOLT PATTERN5 Bolt Pattern
FENDERS9"X32" Rolled Formed w/ Back
SPARE TIRE
PAINT TYPEFully Powder Coated
PAINT COLORBlack
PRE-TREATMENTSteel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed
TOOLBOXLockable Storage Box
BRAKES
SPARE MOUNT
  • Spare Mount
  • Spare Tire
  • D-Rings
  • Add First Break
  • Gas Assist
  • Extra Row-Floor Screws
  • Upgrade Gate 5′
  • Upgrade Jack
  • Powder Coat Color Upgrade

Brochure

Find A Dealer

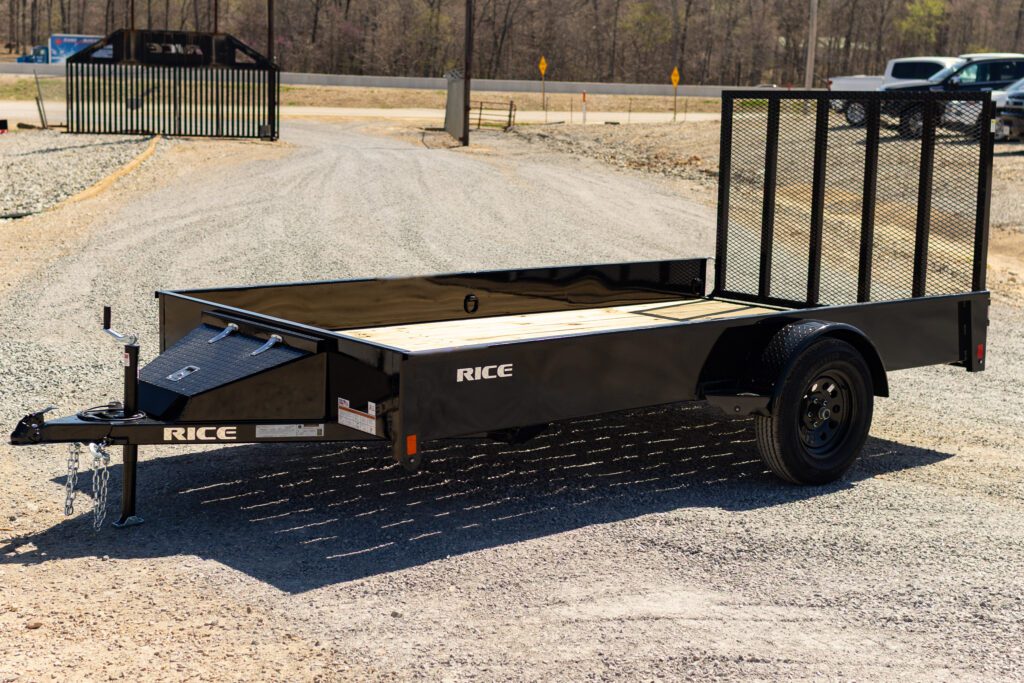

BKP_8729

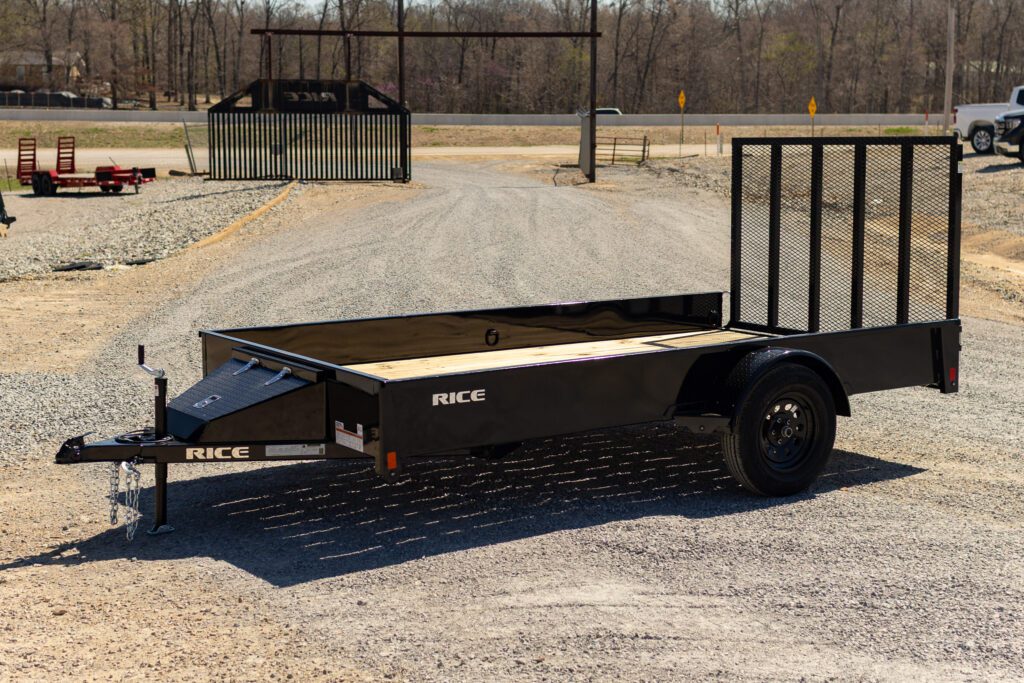

BKP_8726

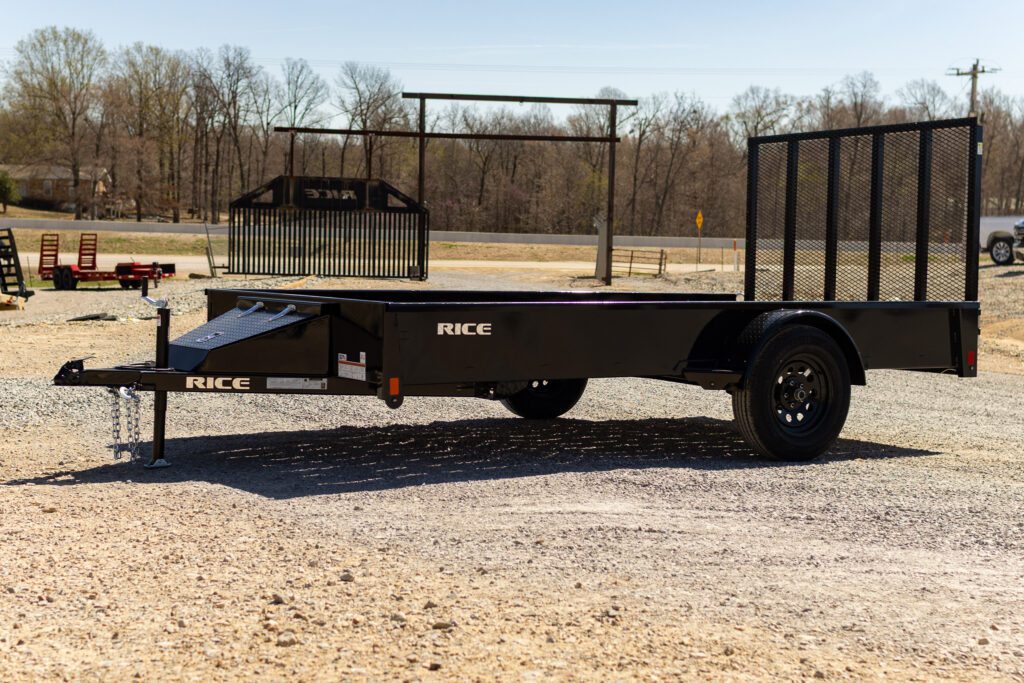

BKP_8724

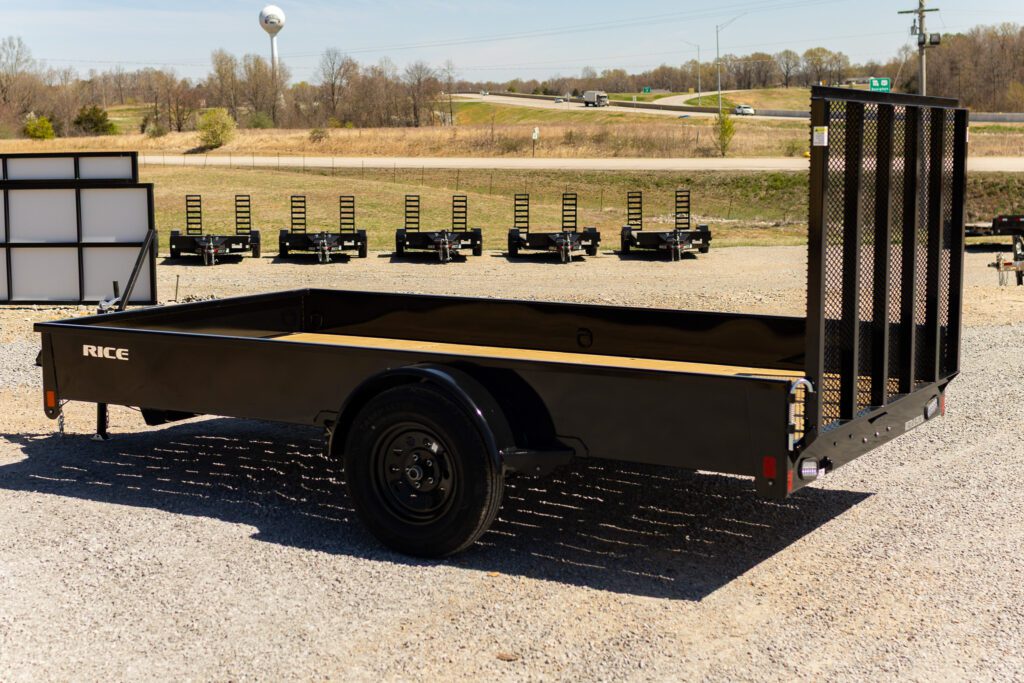

BKP_8735

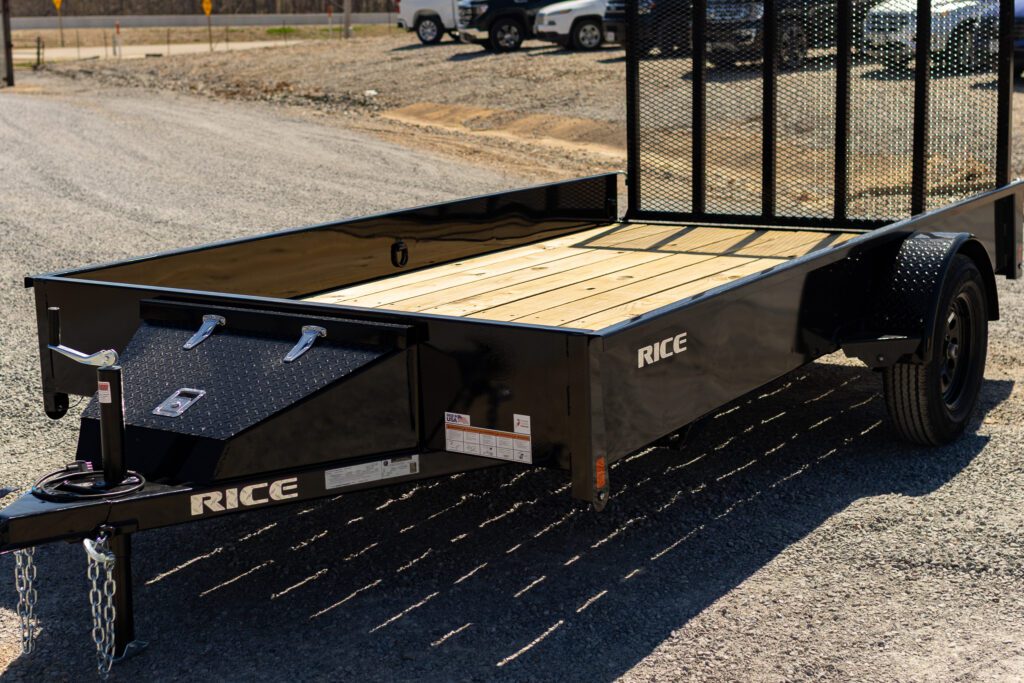

BKP_8734

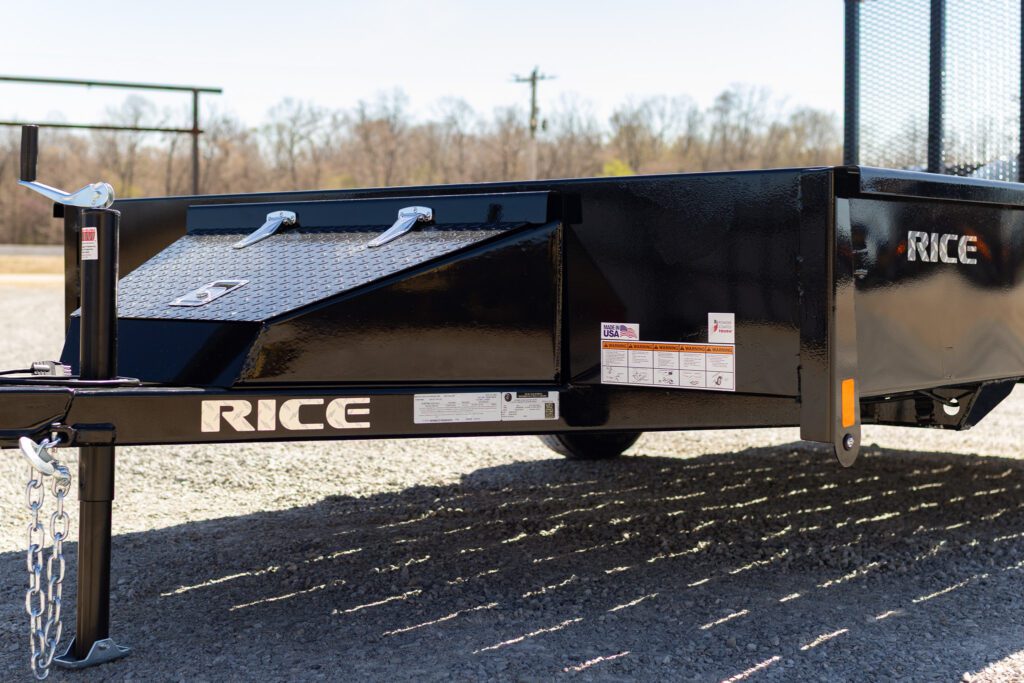

BKP_8733
