Single Pipe Top Rail

    Single Pipe Top Rail

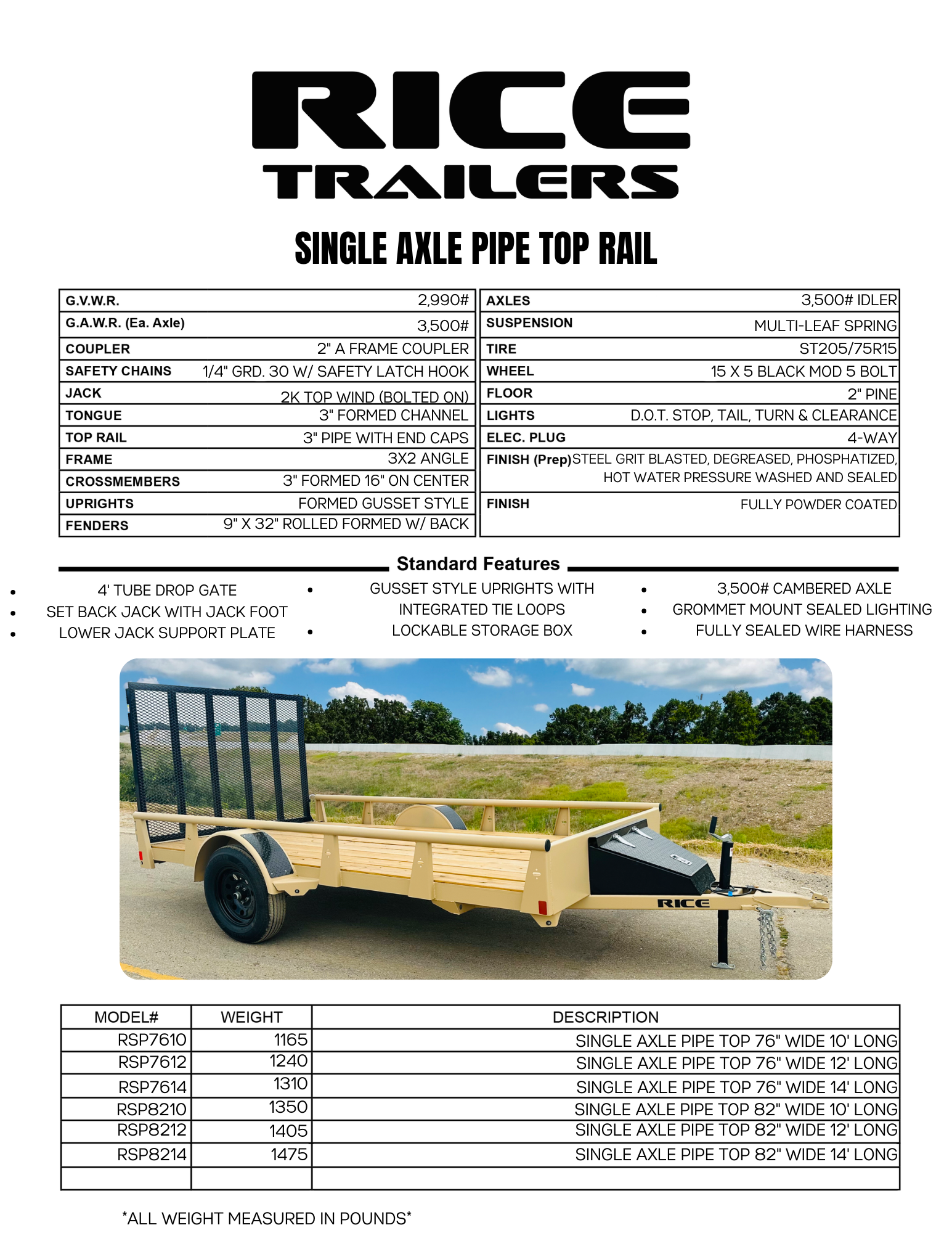

    SINGLE AXLE PIPE TOP RAIL (png)Download

    standard features

    Standard Features



    • 3500# Cambered Axle
    • 2000# Jack Set Back & Bolted In
    • 15" Radial Tire With Silver Mod Wheels
    • Treated Wood Floor
    • Non Tilt
    • Removable Storage Box
    • Aluminum Tool Box Lid And Gravel Guards
    • 4' Tube Drop Gate With Spring Loaded Latching System
    • 2 3/8" Round Pipe Top Rail
    • 3" Formed Gusseted Tongue
    • Gusset Style Upright With Integrated Tie Down Slots
    • Fully Enclosed Rear Bumper W/ Removable Rock Guards
    • Treated Floor
    • Fully D.O.T. Compliant Led Light System
    • Sealed Modular Wire Harness
    • 2" Coupler
    • Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed And Sealed
    • Fully Powder Coated


    Available Sizes


    • 5' x 8'
    • 5' x 10'
    • 5' x 12'
    • 76" x 10'
    • 76" x 12'
    • 76" x 14'
    • 82" x 10'
    • 82" x 12'
    • 82" x 14'


    GVWR: 2990lbs

    Dry Weight List :

    • 5' x 8' - 940 lbs
    • 5' x 10' - 980 lbs
    • 5' x 12' - 1020 lbs
    • 76" x 10' - 1165 lbs
    • 76" x 12' - 1240 lbs
    • 76" x 14' - 1310 lbs
    • 82" x 10' - 1350 lbs
    • 82" x 12' - 1405 lbs
    • 82" x 14' - 1475 lbs
