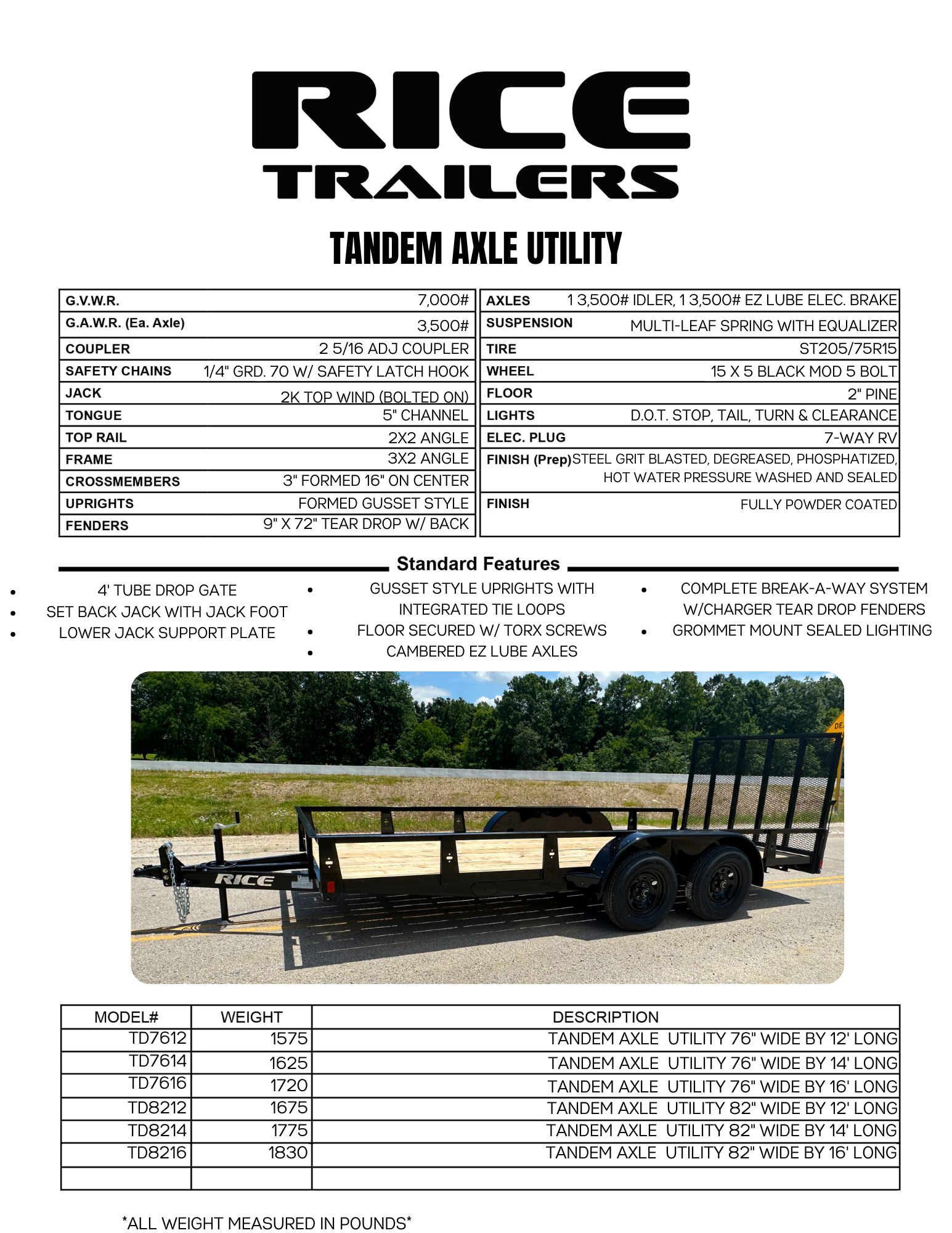

standard features



  • 2-3500# Cambered Axles 1 Brake W/ Breakaway Kit, 1 Idler
  • 2000#Jack Set Back & Bolted In
  • 15" Radial Tire With Silver Mod Wheels
  • 5" Channel Wrap Tongue
  • Angle Uprights & Toprail
  • Teardrop Fenders
  • Treated Wood Floor
  • Fully D.O.T. Compliant Led Light System
  • All Recessed Rubber Grommet Mounted Lighting
  • Fully Sealed Modular Wire Harness
  • 4' Tubing Drop Gate With Spring Loaded Latching System
  • 2 5/16 Adj Coupler
  • Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed, And Sealed
  • Fully Powder Coated


Available Sizes


  • 76" x 12'
  • 76" x 14'
  • 76" x 16'
  • 76" x 18'
  • 82" x 12'
  • 82" x 14'
  • 82" x 16'
  • 82" x 18'



GVWR: 7000lbs

Dry Weight List :

  • 76" x 12' - 1575 lbs
  • 76" x 14' - 1625 lbs
  • 76" x 16' - 1720 lbs
  • 76" x 18' - 1830 lbs
  • 82" x 12' - 1675 lbs
  • 82" x 14' - 1775 lbs
  • 82" x 16' - 1830 lbs
  • 82" x 18' -
