15,990# Deckover Pintle

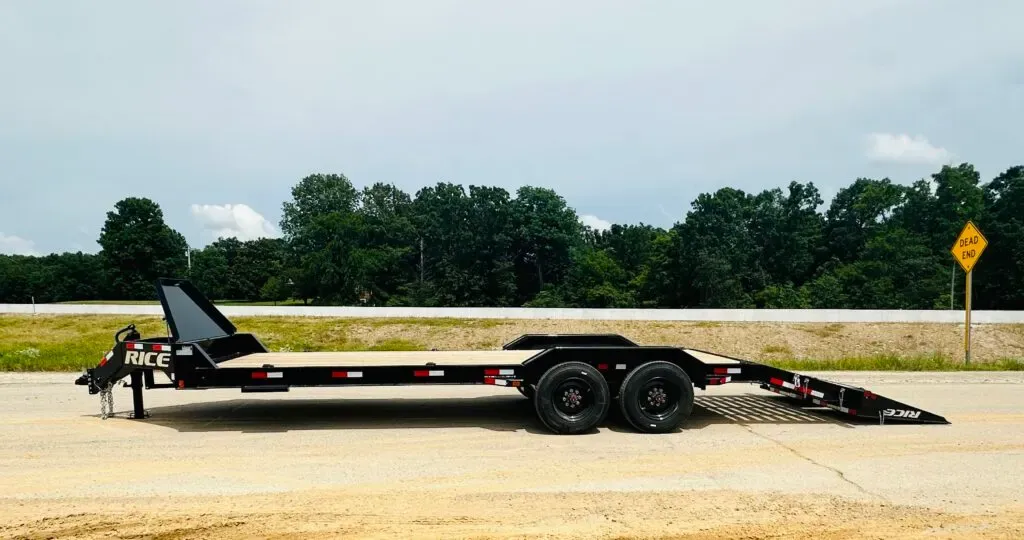

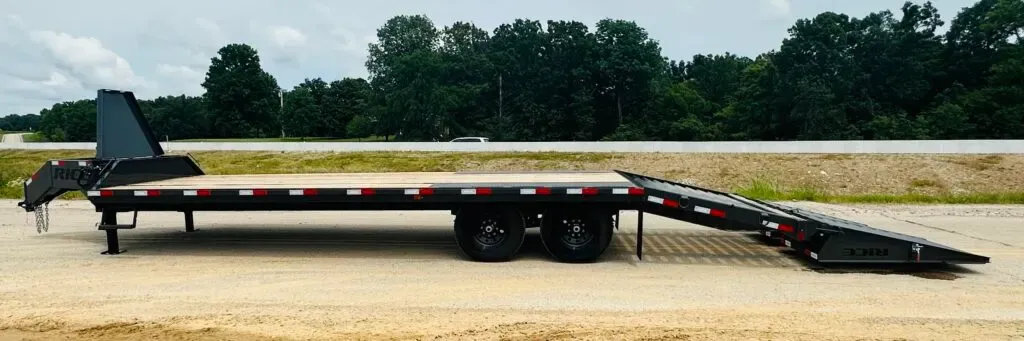

15,990# Deckover Pintle by Rice Trailers. GVWR 15,990 lb. Sizes from 25′ (20′ deck + 5′ dovetail) to 30′ (25′ deck + 5′ dovetail).
- GVWR
- 15,990#
- Length
- 25′ (20′ deck + 5′ dovetail) – 30′ (25′ deck + 5′ dovetail)
- Axles
- 2-7000# Cambered Lube Electric Brake Axles
Available sizes
Max capacity
11,050 lb
Empty weight 4,940 lb. This is GVWR minus the listed empty weight for the selected size. It is not a separate rated payload.
Full specs
| GVWR | 15,990# |
| Axles | 2-7000# Cambered Lube Electric Brake Axles |
| Suspension | Slipper Spring w/ Equalizer |
| Brakes | 2-Electric Brakes |
| Tires | ST235/80R16 |

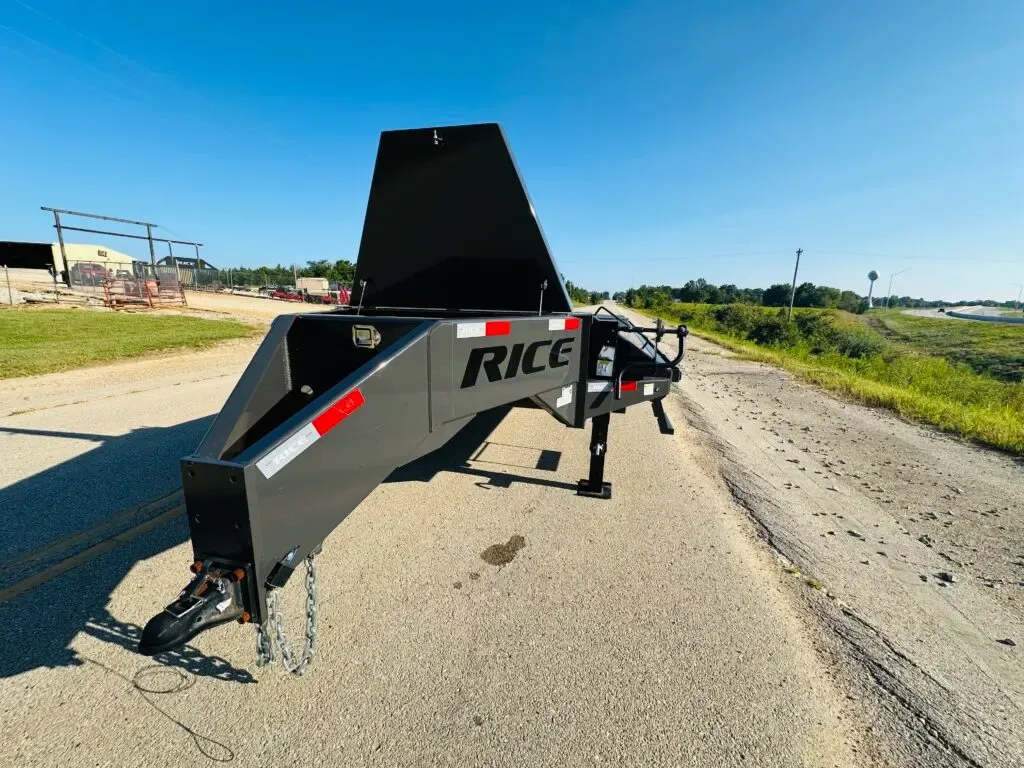

| Coupler | Pintle Ring |
| Safety Chains | 3/8" GRD. 70 w/ Safety Latch Hook |

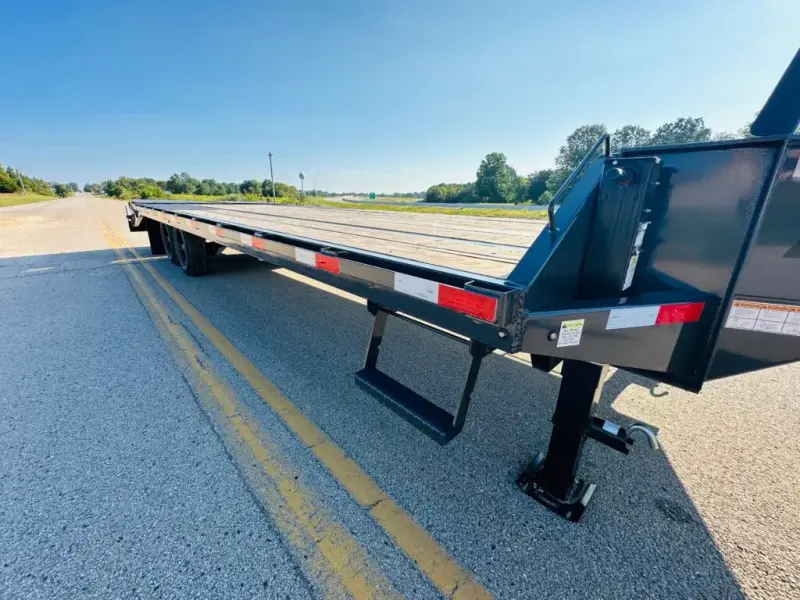

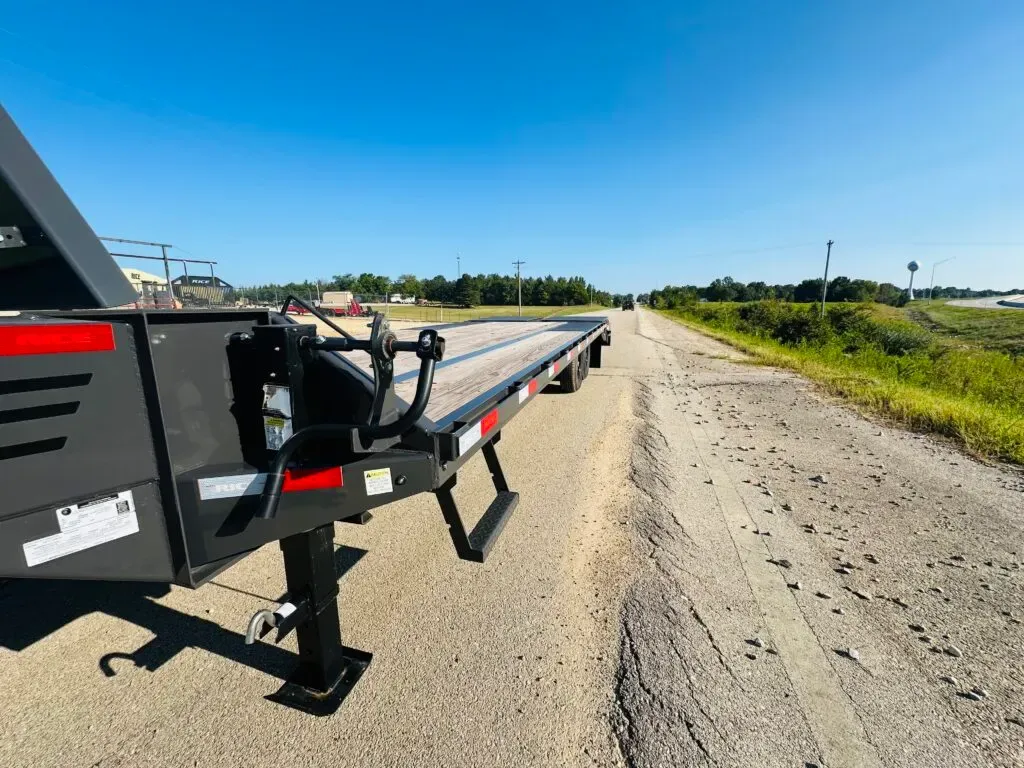

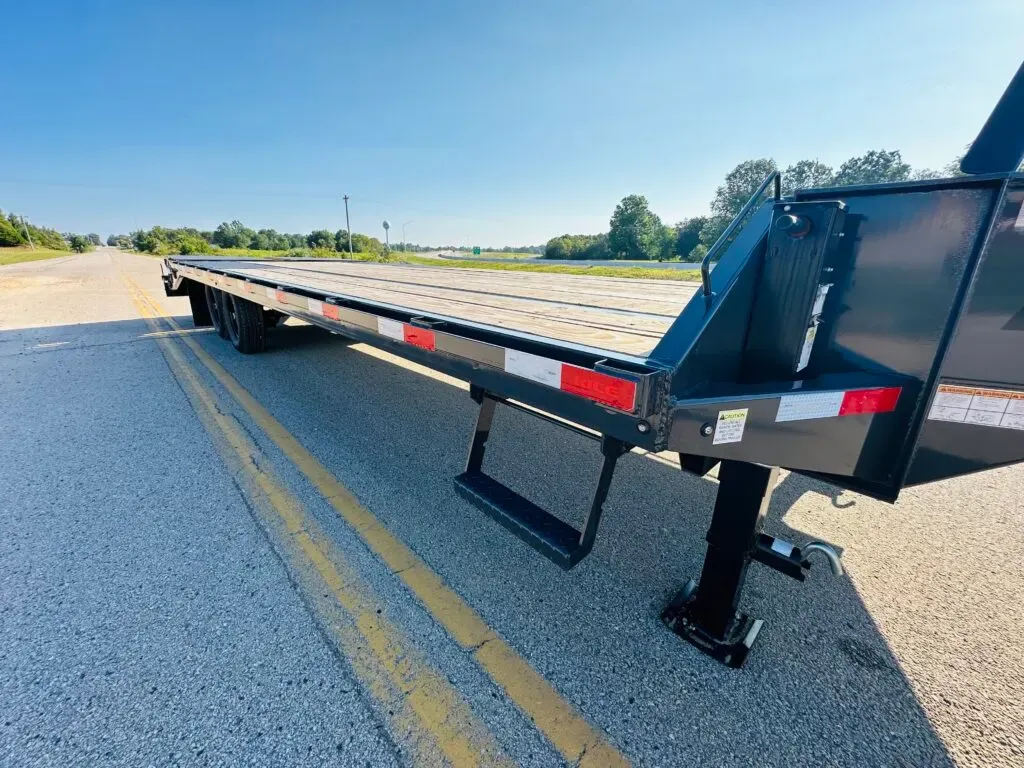

| Jack | Dual 12k Drop Leg Jacks Bolted On |
| Frame | 14LB Pierce Beam |
| Cross-Members | 3" Channel Crossmembers on 16" Centers |
| Floor | Pressure Treated 2" Pine Floor |

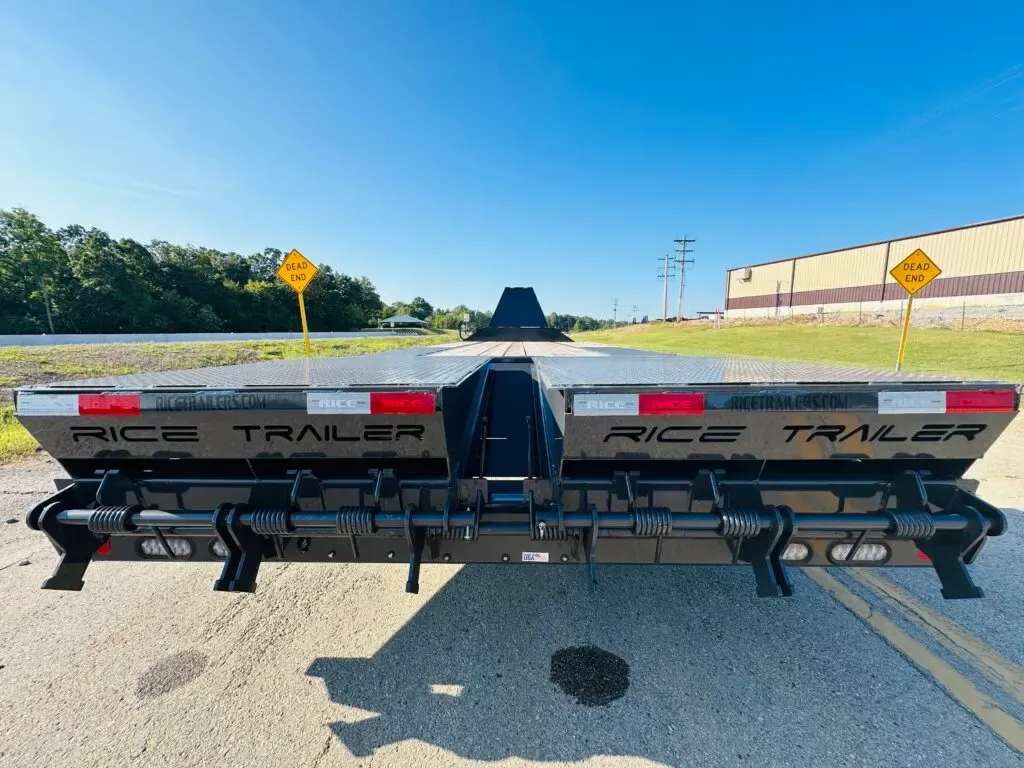

| Ramps | 5' Double Hinged Spring Assisted Full Width |
| Dovetail | 5' Cleated Dovetail |
| Stake Pockets | Stake Pockets Down Side, 24" on Center |
| Toolbox | Integrated Large Lockable Storage Box |
| Trailer Plug | 7-Way RV Type |
| Lights | D.O.T. Compliant Stop, Tail, Turn, Clearance Lights |
| Wiring | Sealed Modular Wire Harness |
| Tongue | 5' Double Hinged Spring Asst. Full Width |
| Pre-Treatment | Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed |
| Paint Type | Fully Powder Coated |
| Paint Color | Black |
Notes on this spec sheet
- The catalog lists the tongue with nearly the same wording as the ramps. Confirm the tongue spec before quoting it.
Options
Accessories
5/8 in D-ringODR1
Floor / Fenders
- Extra row of floor screwsOFS1
Tires / Wheels
- Spare ST235/80R16, 10-ply radial, black mod wheelOTW-235-BM
Jack
Premium dual hydraulic jackOJ17DG

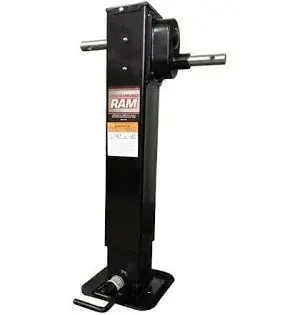

Two-speed 12K jackOJ6
Paint Color
- Olive drabOLV
- CAT yellowYEL
- WhiteWHT
- Desert tanTAN
- Starlight blackSBB
- RedRED
- Kubota orangeORG
- AG greenGRN
- CE grayGRA
- AG blueBLU

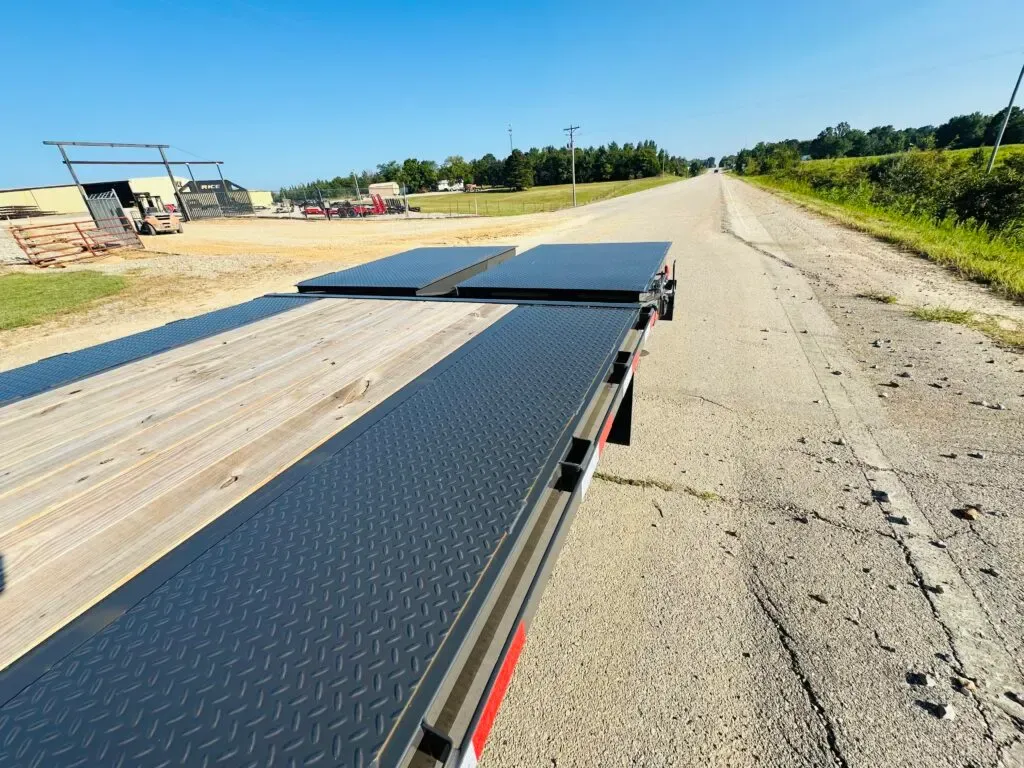

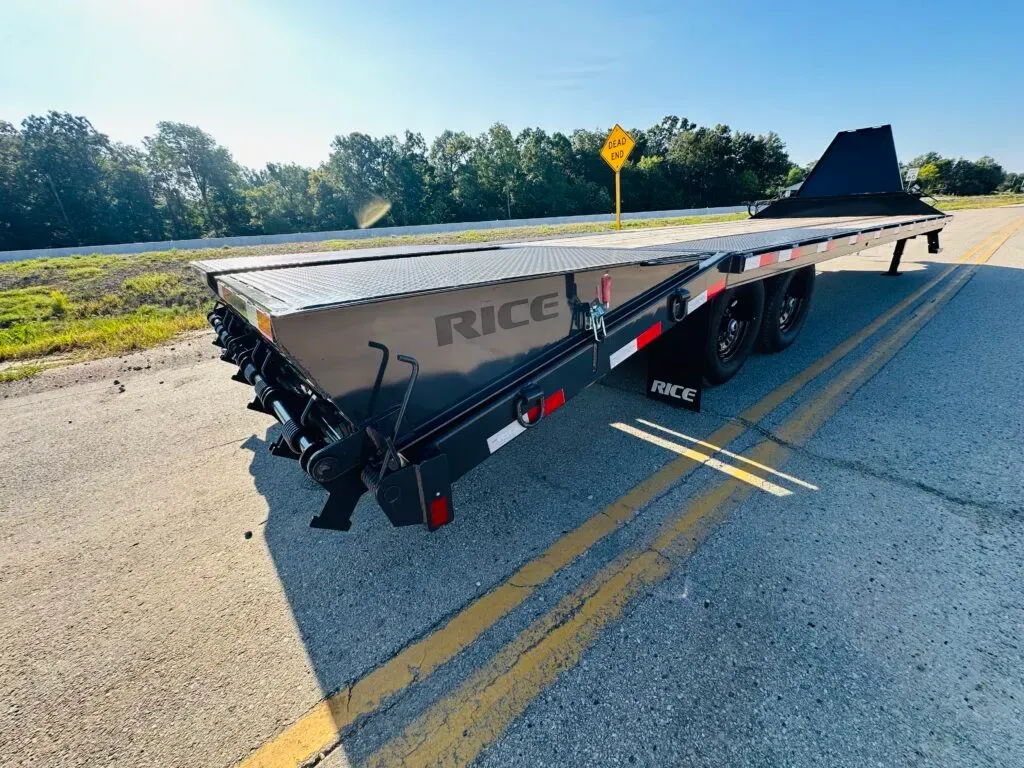

Gallery

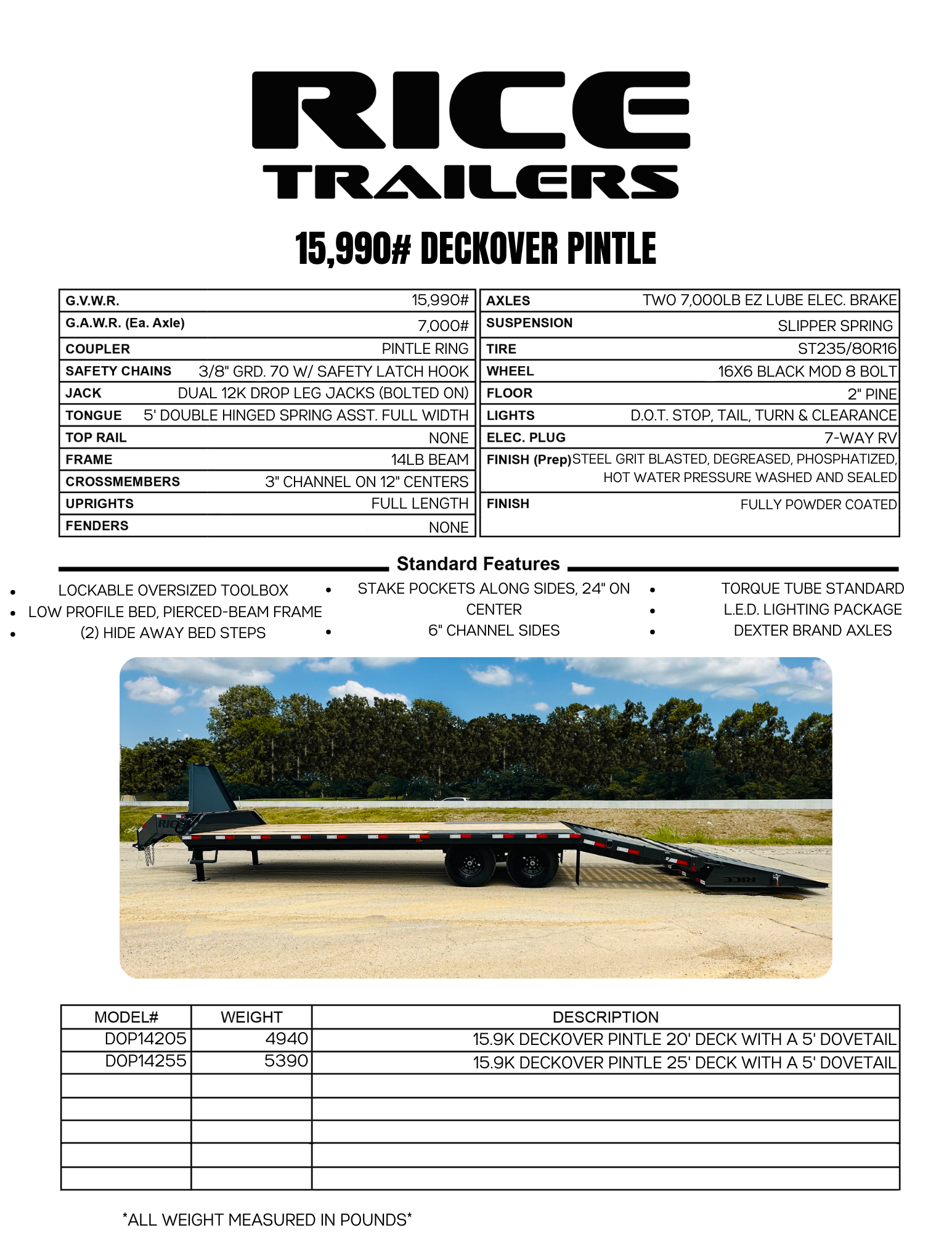

Brochure
Quote
Request a quote
This form is prefilled with the 15,990# Deckover Pintle. Tell us the size and what you haul.
