23,990# Deckover Pintle

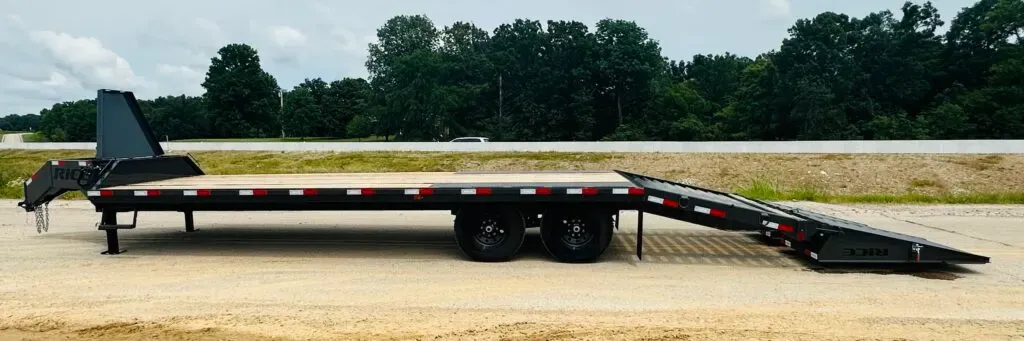

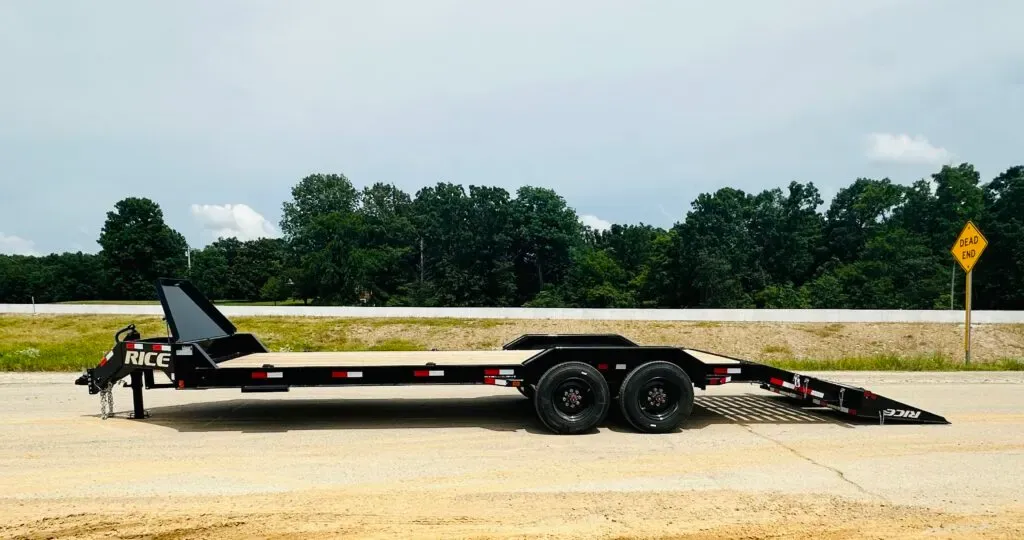

23,990# Deckover Pintle by Rice Trailers. GVWR 23,990 lb. Sizes from 25′ (20′ deck + 5′ dovetail) to 35′ (30′ deck + 5′ dovetail).
- GVWR
- 23,990#
- Length
- 25′ (20′ deck + 5′ dovetail) – 35′ (30′ deck + 5′ dovetail)
- Axles
- 2-10,000# Oil Bath Tandem Dual Axles
Available sizes
Max capacity
18,250 lb
Empty weight 5,740 lb. This is GVWR minus the listed empty weight for the selected size. It is not a separate rated payload.
Full specs
| GVWR | 23,990# |
| Axles | 2-10,000# Oil Bath Tandem Dual Axles |
| Suspension | Slipper Spring w/ Equalizer |
| Brakes | 2-Electric Brakes |
| Tires | ST235/80R16 |

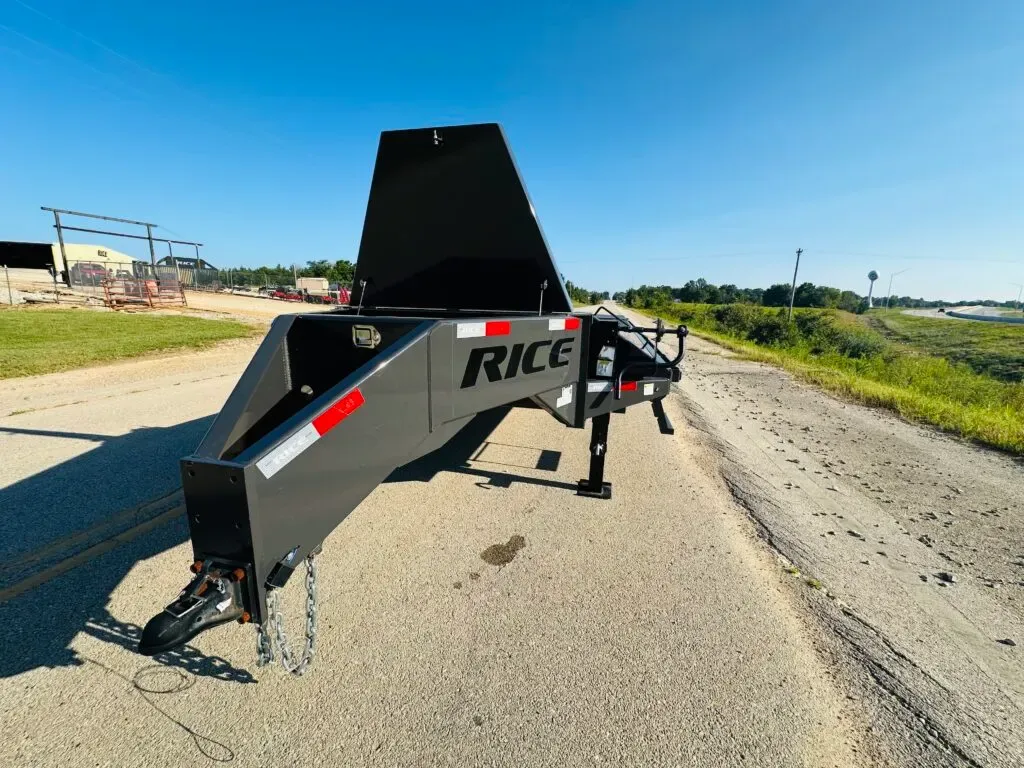

| Coupler | Pintle Ring |
| Safety Chains | 3/8" GRD. 70 w/ Safety Latch Hook |

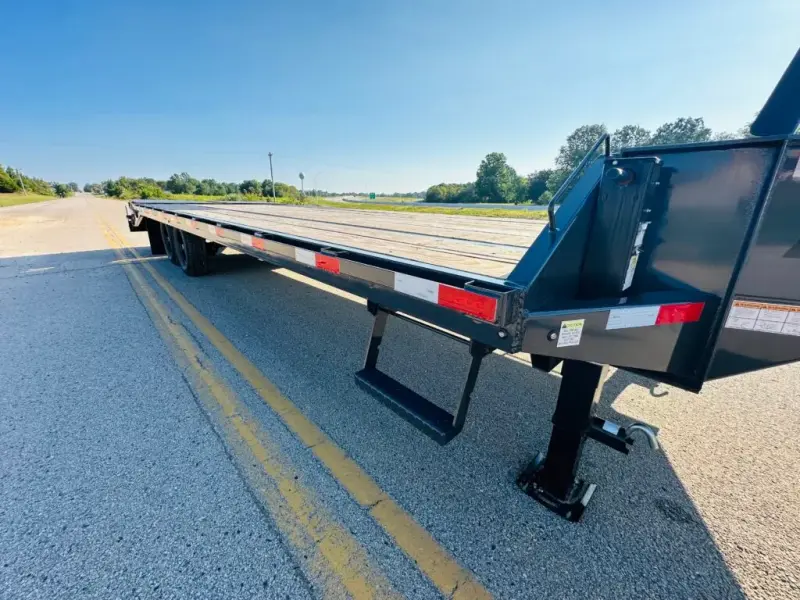

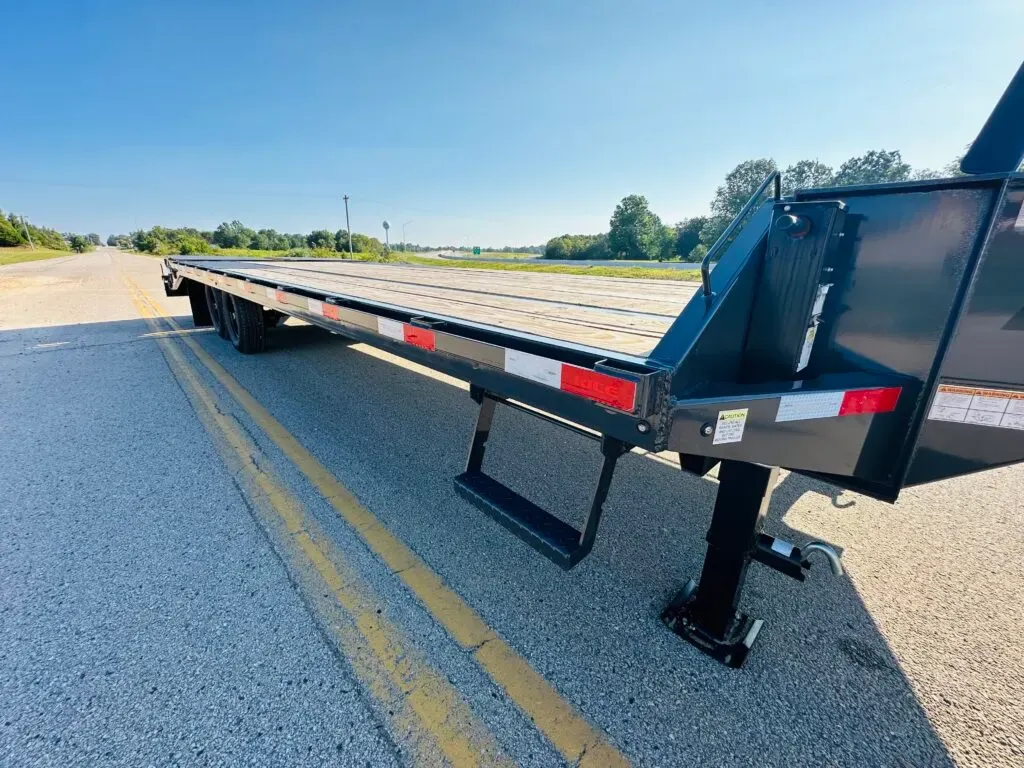

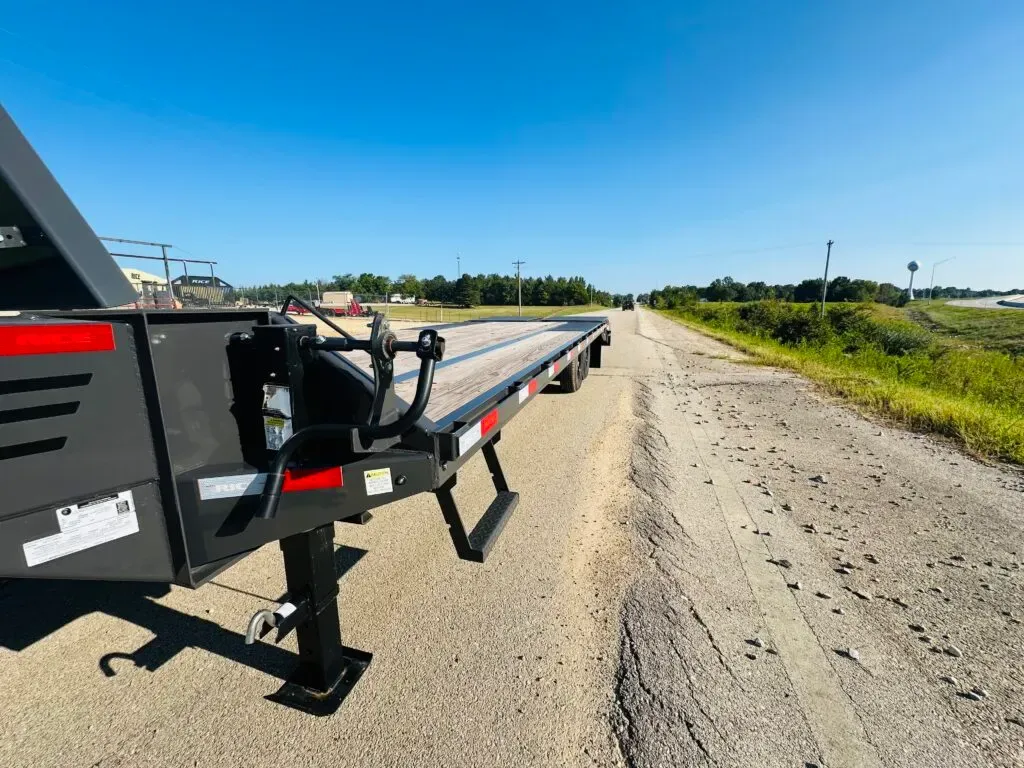

| Jack | Dual 12k Drop Leg Jacks Bolted On |
| Frame | 19LB Pierce Beam |
| Cross-Members | 3" Channel Crossmembers on 16" Centers |
| Floor | Pressure Treated 2" Pine Floor |

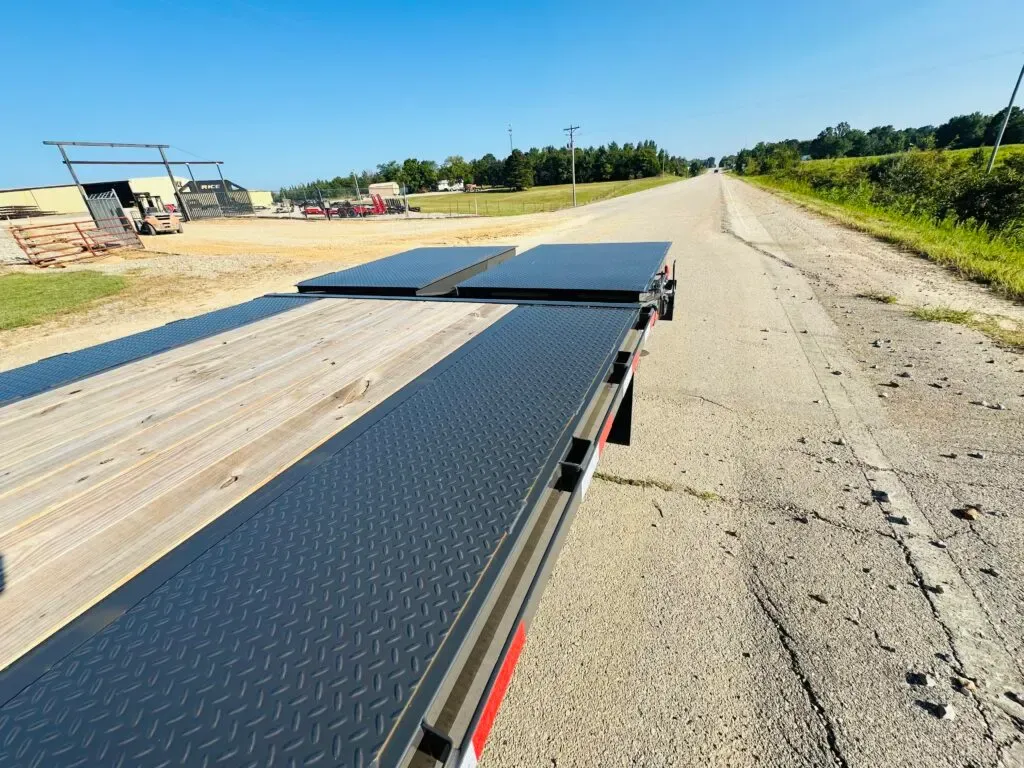

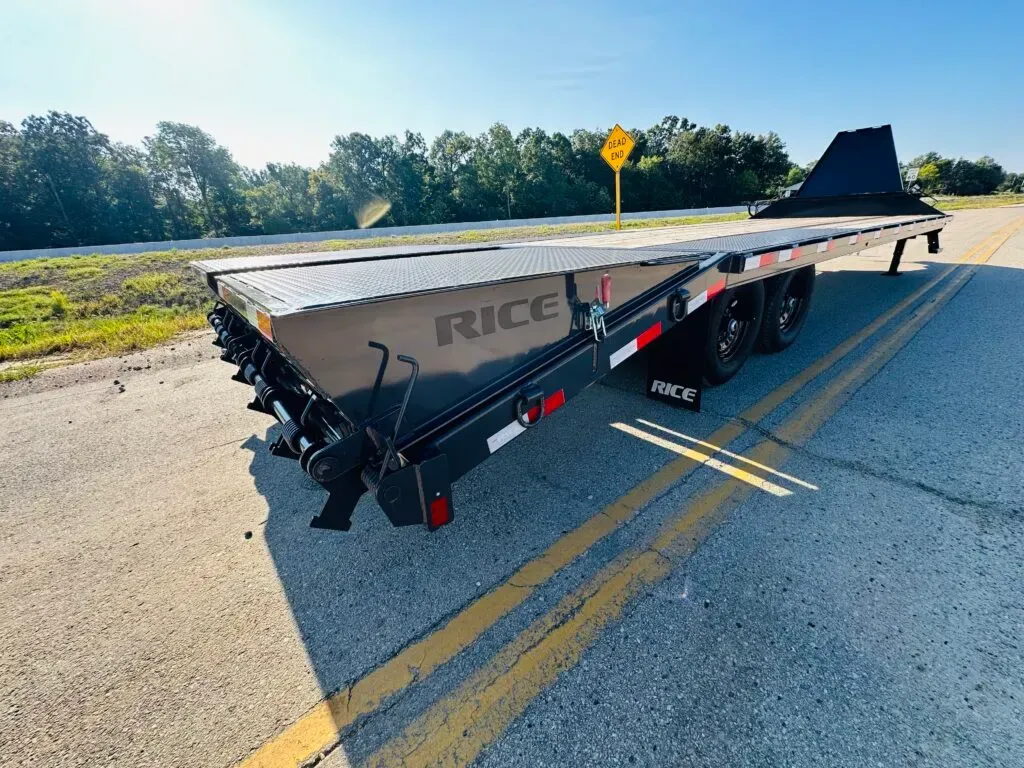

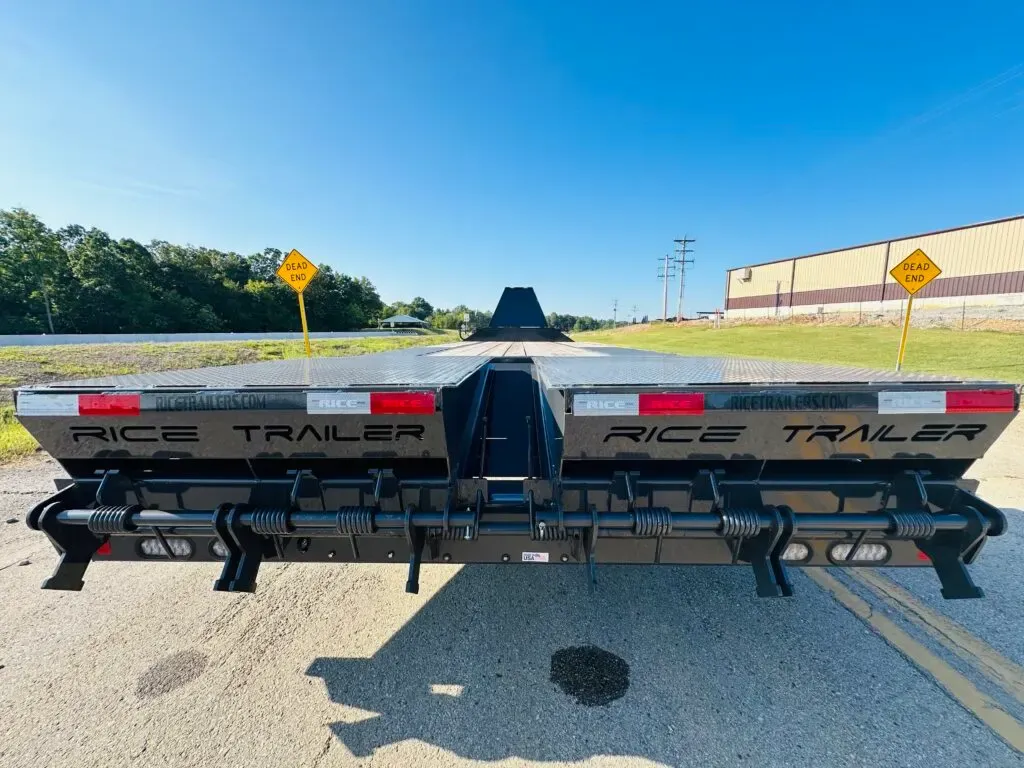

| Ramps | 5' Double Hinged Spring Assisted Full Width |
| Dovetail | 5' Cleated Dovetail |
| Stake Pockets | Stake Pockets Down Side, 24" on Center |
| Toolbox | Integrated Large Lockable Storage Box |
| Trailer Plug | 7-Way RV Type |
| Lights | D.O.T. Compliant Stop, Tail, Turn, Clearance Lights |
| Wiring | Sealed Modular Wire Harness |
| Pre-Treatment | Steel Grit Blasted, Degreased, Phosphatized, Hot Water Pressure Washed - Sealed |
| Paint Type | Fully Powder Coated |
| Paint Color | Black |
Options
Accessories
5/8 in D-ringODR1
Floor / Fenders
- Extra row of floor screwsOFS1
Jack
Premium dual hydraulic jackOJ17DG
Two-speed 12K jackOJ6
Paint Color
- Olive drabOLV
- CAT yellowYEL
- WhiteWHT
- Desert tanTAN
- Starlight blackSBB
- RedRED
- Kubota orangeORG
- AG greenGRN
- CE grayGRA
- AG blueBLU
Gallery

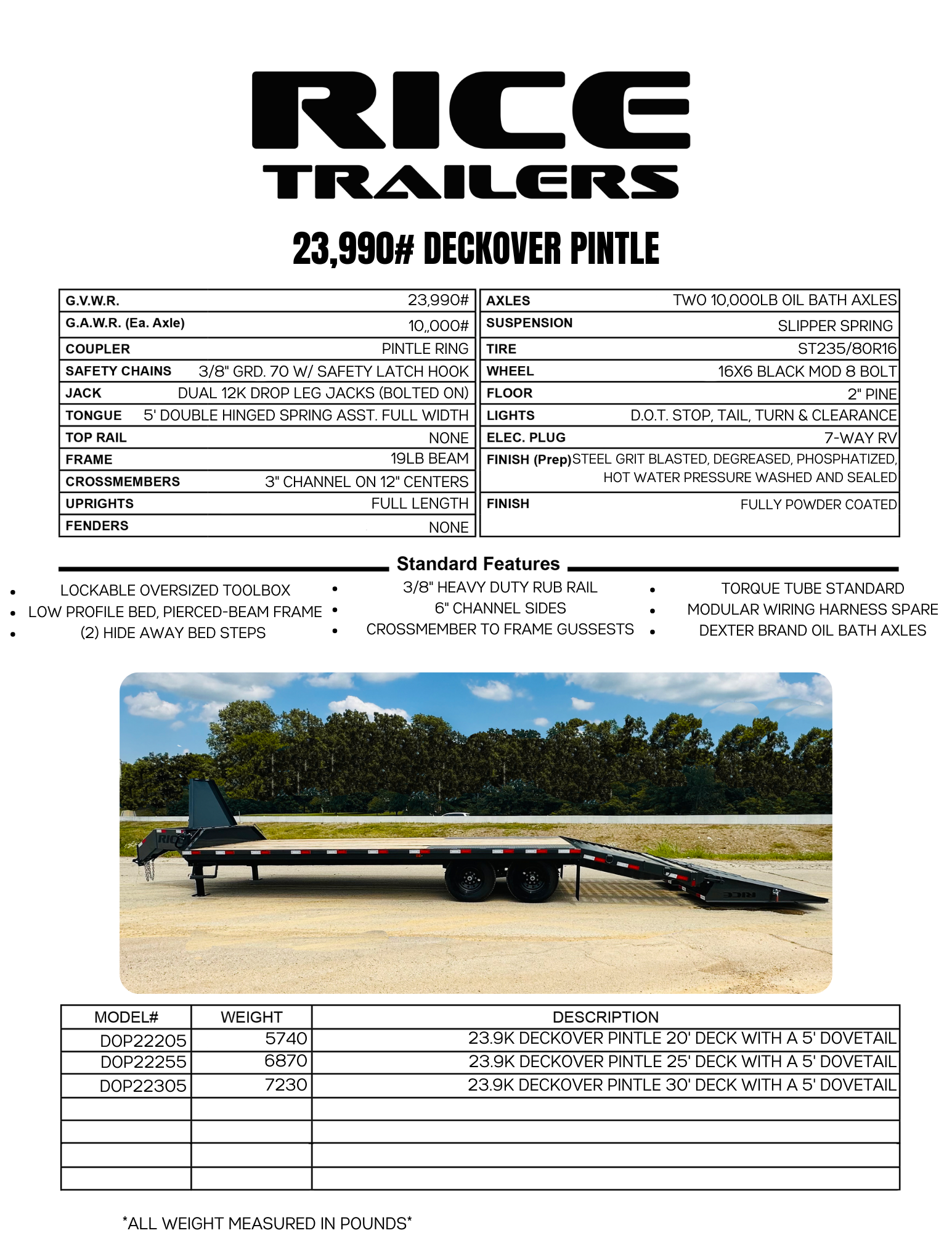

Brochure
Quote
Request a quote
This form is prefilled with the 23,990# Deckover Pintle. Tell us the size and what you haul.
